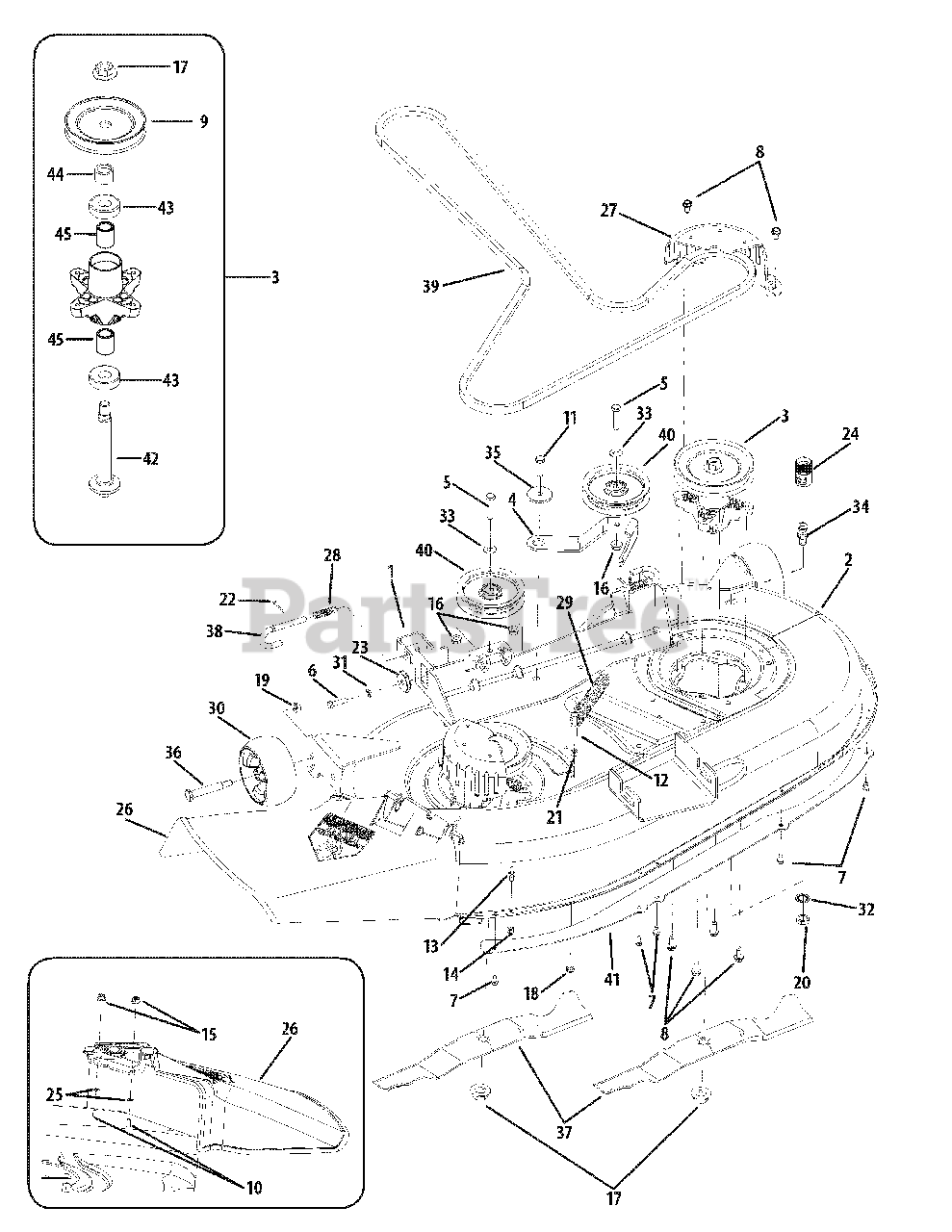

17AE2ACG004 - MTD Gold Zero-Turn Mower (2010) Mower Deck 42-Inch Parts Diagram

Gold Zero-Turn Mower

Mower Deck 42-Inch Parts Diagram

  • Title

1

MTD 603-04156-0691

Deck Lift Bracket
(Superseded to 603-04156-0637)

$45.99

$

In Stock, only 2 left!

0

2

MTD 903-04335C-0691

Deck Housing
(Superseded to 903-04335C-0637)

$763.99

$

Usually ships in 3-6 days

0

3

MTD 918-0624A

Spindle Assembly
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 20+

0

4

MTD 703-05824C-0691

Idler Arm

$38.99

$

In Stock, Qty 20+

0

5

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-04484

Hex Washer Head Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

9

MTD 956-1227

Pulley

$24.99

$

In Stock, Qty 20+

0

10

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

13

MTD 911-04069

Grass Catcher Pin, 1/4-20

$7.99

$

In Stock, Qty 20+

0

14

MTD 712-0324

Hex Insert Lock Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

15

MTD 712-04064

Hex Insert Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Hex Insert Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

MTD 912-0429

Hex Insert Lock, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

19

MTD 912-0431

Hex Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

21

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

23

MTD 917-04074

Deck Adjustment Gear

$12.99

$

In Stock, Qty 20+

0

24

MTD 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

25

MTD 726-0233

Push Nut, .25 x .5

$3.99

$

In Stock, Qty 11

0

26

MTD 931-1032B

Discharge Chute Assembly
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 18

0

27

MTD 731-2231B

Belt Cover

$42.99

$

In Stock, only 3 left!

0

28

MTD 732-04652

Compression Spring, .535 x 1.751

$6.49

$

In Stock, Qty 20+

0

29

MTD 732-04609

Extension Spring, .94 Dia. x 6.74

$14.99

$

In Stock, Qty 12

0

30

MTD 734-04155

Deck Ball Wheel, 5.0

$19.99

$

In Stock, Qty 20+

0

31

MTD 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0225

Lock Washer

$3.99

$

In Stock, Qty 11

0

33

MTD 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

34

MTD 737-04003D

Deck Water Nozzle

$21.99

$

In Stock, Qty 18

0

35

MTD 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

36

MTD 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$8.99

$

In Stock, Qty 20+

0

37

MTD 942-0616A

Blade, 3 in 1, 21.23

$31.99

$

In Stock, Qty 20+

0

38

MTD 747-1116

Deck Hanger Rod

$11.99

$

In Stock, Qty 20+

0

39

MTD 954-04137A

V-Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, Qty 20+

0

40

MTD 756-04129B

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

41

MTD 753-0884

Deck Skirt

$76.99

$

In Stock, Qty 5

0

42

MTD 738-1010A

Spindle Shaft, 5.75

$46.99

$

In Stock, Qty 13

0

43

MTD 941-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

44

MTD 748-0433

Spacer, .820 x 1.15 x .73

$5.49

$

In Stock, Qty 6

0

45

MTD 750-1000

Spacer, .8 x 1.10 x 1.322

$4.49

$

In Stock, Qty 19
