17AE2ACG211 - Troy-Bilt Mustang Colt RZT 42" Zero-Turn Mower (2008) Operator's Platform Parts Diagram

Mustang Colt RZT 42" Zero-Turn Mower

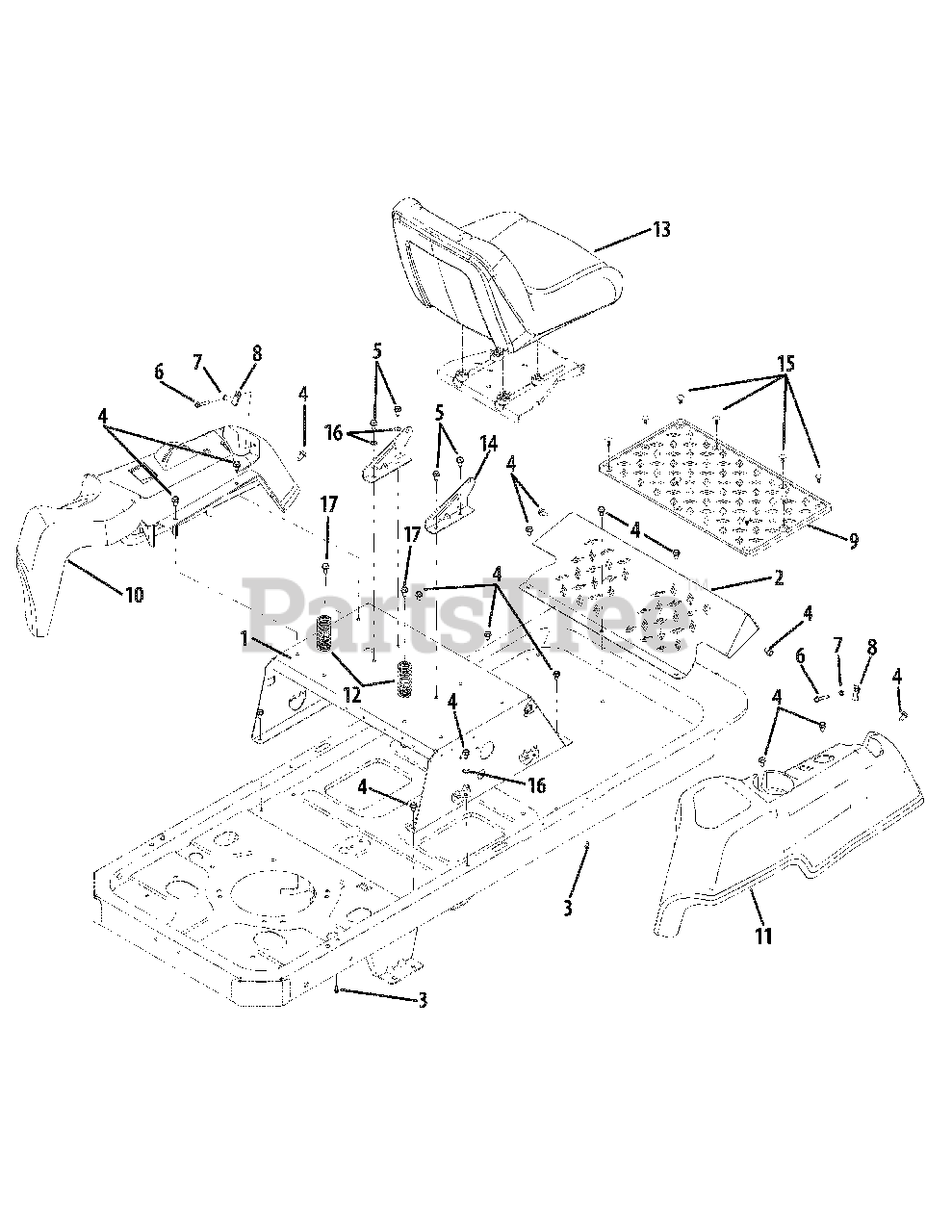

Operator's Platform Parts Diagram

  • Title

1

Troy-Bilt 603-04447A

Seat Box Frame

Variations

Troy-Bilt 603-04447A-0606

FRAME ASM-SEAT RZT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 603-04447A-0638

FRAME ASM-SEAT RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 603-04447A-0650

FRAME ASM-SEAT RZT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 603-04447A-0691

FRAME ASM-SEAT RZT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 603-04447A-4015

FRAME ASM-SEAT RZT - FIRE RED (4015)

$

$

Not available

Troy-Bilt 603-04447A-4021

FRAME ASM-SEAT RZT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

2

Troy-Bilt 703-05373B

Foot Rest Bracket

Variations

Troy-Bilt 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

Troy-Bilt 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

Troy-Bilt 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

3

Troy-Bilt 710-04261

Hex Screw, #12-16 x .50

$6.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0604A

Hex Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

5

Troy-Bilt 710-0726

Hex Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0778

Hex Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0298

Hex Nut, 1/4-20
(Superseded to 912-0298)

$6.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 712-04092

U-Type Speed Nut, 1/4-20

$6.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 735-04082

Foot Pad
(Superseded to 735-04082C)

$54.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-04662D

Left Hand Console
(Superseded to 731-04662E)

$

$

Not available

11

Troy-Bilt 731-04663C

Right Hand Console
(Superseded to 731-04663D)

$73.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 732-04035

Compression Spring, 1.28 x 3.125

$10.99

$

In Stock, Qty 12

0

13

Troy-Bilt 757-04010

Seat
(Superseded to 957-04010)

$

$

Not available

14

Troy-Bilt 783-1489C

Seat Mount Bracket

Variations

Troy-Bilt 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$24.99

$

In Stock, only 3 left!

0

Troy-Bilt 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$24.99

$

In Stock, only 3 left!

0

$20.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 726-3046

Ratchet Clip

$4.49

$

In Stock, Qty 13

0

16

Troy-Bilt 736-0148

External Tooth Washer, 3/8

$3.99

$

In Stock, Qty 19

0

17

Troy-Bilt 710-1260A

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0
