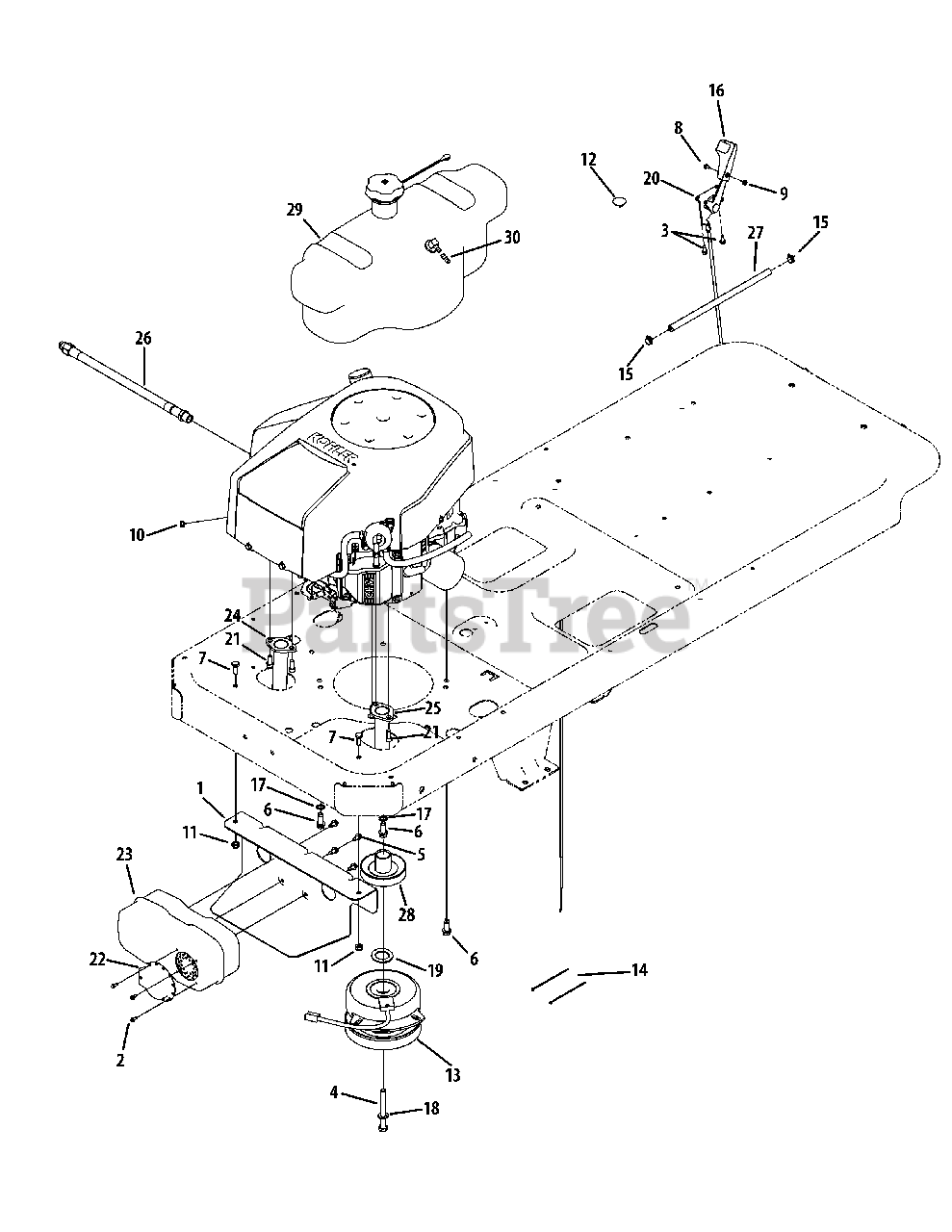

17AF2ACK004 - MTD Gold Zero-Turn Mower (2012) Engine Connection 54-Inch Parts Diagram

Gold Zero-Turn Mower

Engine Connection 54-Inch Parts Diagram

  • Title

1

MTD 703-05441A

Muffler Mount Bracket

$48.99

$

In Stock, Qty 6

0

2

MTD 710-0227

Hex Washer Screw, #8-18 x .500

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-1017

Screw, 1/4-14 x .625

$7.99

$

In Stock, Qty 20+

0

4

MTD 710-04379A

Hex Lock Screw, 7/16-20 x 3.50

$5.99

$

In Stock, Qty 20+

0

5

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-04683

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 7

0

7

MTD 710-3008

Hex Washer Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3217

Machine Screw, #8-32 x .375

$6.49

$

In Stock, Qty 10

0

9

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 12

0

10

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 731-1999

Choke Plug

$9.99

$

Usually ships in 3-6 days

0

13

MTD 917-1774C

Electric PTO Clutch
(Superseded to 917-05001)

$586.99

$

In Stock, Qty 5

0

14

MTD 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

15

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

16

MTD 731-04914

Throttle Control Knob

$12.99

$

In Stock, only 3 left!

0

17

MTD 736-0148

Lock Washer, 3/8

$3.49

$

In Stock, Qty 12

0

18

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0277

Flat Washer, 1.03 x 1.620 x .095

$3.99

$

In Stock, Qty 20+

0

20

MTD 746-04539

Throttle/Choke Control Cable
(Superseded to 746P04539)

$39.99

$

In Stock, Qty 5

0

21

MTD 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

22

MTD 751-0564B

Muffler Deflector

$12.99

$

In Stock, Qty 20+

0

23

MTD 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

24

MTD 751-10253

Exhaust Pipe, LH

$67.99

$

In Stock, only 3 left!

0

25

MTD 751-10254

Exhaust Pipe, RH

$87.99

$

In Stock, only 3 left!

0

26

MTD 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$49.99

$

In Stock, Qty 6

0

27

MTD 751-10349

Fuel Hose

$

$

Not available

28

MTD 756-04376

Engine Pulley

$41.99

$

In Stock, only 4 left!

0

29

MTD 951-04209B

Fuel Tank Assembly
(Superseded to 951-05138)

$170.99

$

Usually ships in 3-6 days

0

29

MTD 935-0149

Fuel Tank Bushing

$7.99

$

In Stock, Qty 20+

0

29

MTD 735-04081

Rubber Grommet

$4.49

$

In Stock, Qty 20+

0

29

MTD 751-10442

Fuel Pick-Up Fitting

$30.99

$

In Stock, Qty 15

0

29

MTD 951-12428

Fuel Cap

$40.99

$

In Stock, Qty 20+

0

29

MTD 751-12118

Rollover Valve

$33.99

$

In Stock, Qty 13

0

30

MTD 751-12089-28

Hose Vent, 3/16 EPA

$8.49

$

In Stock, only 1 left!
