17AF2ACK004 - MTD Gold Zero-Turn Mower (2012) Rear Drive & Wheels 54-Inch Decks Parts Diagram

Gold Zero-Turn Mower

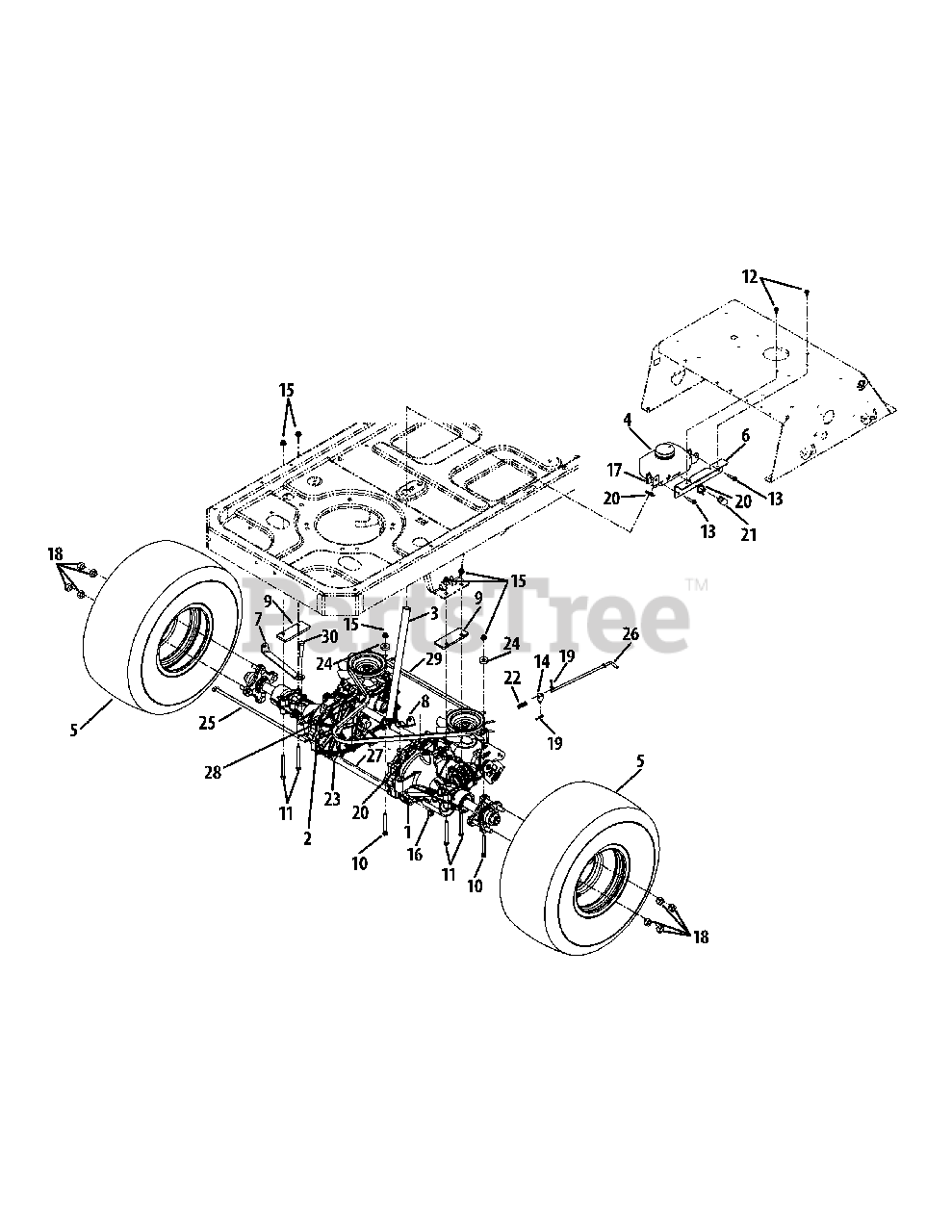

Rear Drive & Wheels 54-Inch Decks Parts Diagram

  • Title
1

MTD 918-04464A

Transmission Assembly (RH)

$1689.99

$

Usually ships in 3-6 days

0

2

MTD 918-04465A

Transmission Assembly (LH)

$1816.99

$

Usually ships in 3-6 days

0

3

MTD 618-04466

Breather

$28.99

$

In Stock, only 1 left!

0

4

MTD 931-04223

Expansion Tank Assembly

$51.99

$

In Stock, only 2 left!

0

5

N/A

Wheel Assembly, 20 x 10 x 8

$

$

Not available

5

MTD 934-0246A-0662

Rim Assembly, 8.0 x 6.19

Note: Not shown

$124.99

$

In Stock, only 1 left!

0

5

MTD 934-0255

Tubeless Air Valve

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

5

MTD 734-1873-0901

Tire, 20 x 10 x 8

Note: Not shown

$98.99

$

In Stock, only 1 left!

0

6

MTD 703-05938A-0637

Expansion Tank Bracket

$

$

Not available

7

MTD 703-05940-0637

Transmission Brace (LH)

$

$

Not available

8

MTD 703-05941-0637

Transmission Brace (RH)

$

$

Not available

9

MTD 703-05989-0637

Transmission Spacer

$

$

Not available

10

MTD 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0189

Hex Screw, 5/16-18 x 3.00

$5.99

$

In Stock, Qty 5

0

12

MTD 710-0599

Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0788

Screw, 1/4-20 x 1.000

$6.99

$

In Stock, only 4 left!

0

14

MTD 711-1530

Ferrule, .325 x .312

$

$

Not available

15

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04092

Speed Nut, 1/4-20

$5.49

$

Usually ships in 3-6 days

0

18

MTD 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

19

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

MTD 02001111

Hose Clamp, 1/2

$6.49

$

In Stock, only 2 left!

0

21

MTD 731-05785

Cap, 1/2 x .870

$8.99

$

Usually ships in 3-6 days

0

22

MTD 732-0335

Compression Spring, .405 x 1.17

$4.99

$

In Stock, only 3 left!

0

23

MTD 732-04434

Extension Spring, .545 x 4.555

$5.99

$

Usually ships in 3-6 days

0

24

MTD 736-04267

Flat Washer, .35 x 1.0 x .2

$5.99

$

Usually ships in 3-6 days

0

25

MTD 738-04251

Rod, .337 x 14.75
(Superseded to 738-04251A)

$13.99

$

Usually ships in 3-6 days

0

26

MTD 747-04636

Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

27

MTD 750-04759A

Tube, 7/16 x 3/4 x 11.3

$41.99

$

Usually ships in 3-6 days

0

28

MTD 751-10511

Straight Fitting, 9/16 x 1/2

$21.99

$

In Stock, only 1 left!

0

29

MTD 954-04043B

V-Type Belt

$42.99

$

In Stock, Qty 20+

0

30

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 8

0

MTD 732-04448

Neutral Return Spring

Note: (Not shown) Must have the same color neutral return spring on RH & LH transmission

$9.99

$

In Stock, Qty 20+

0
