17AF2ACK897 - White Outdoor Zero-Turn Mower (2013) Frame & Drive Idler Assembly Parts Diagram

Zero-Turn Mower

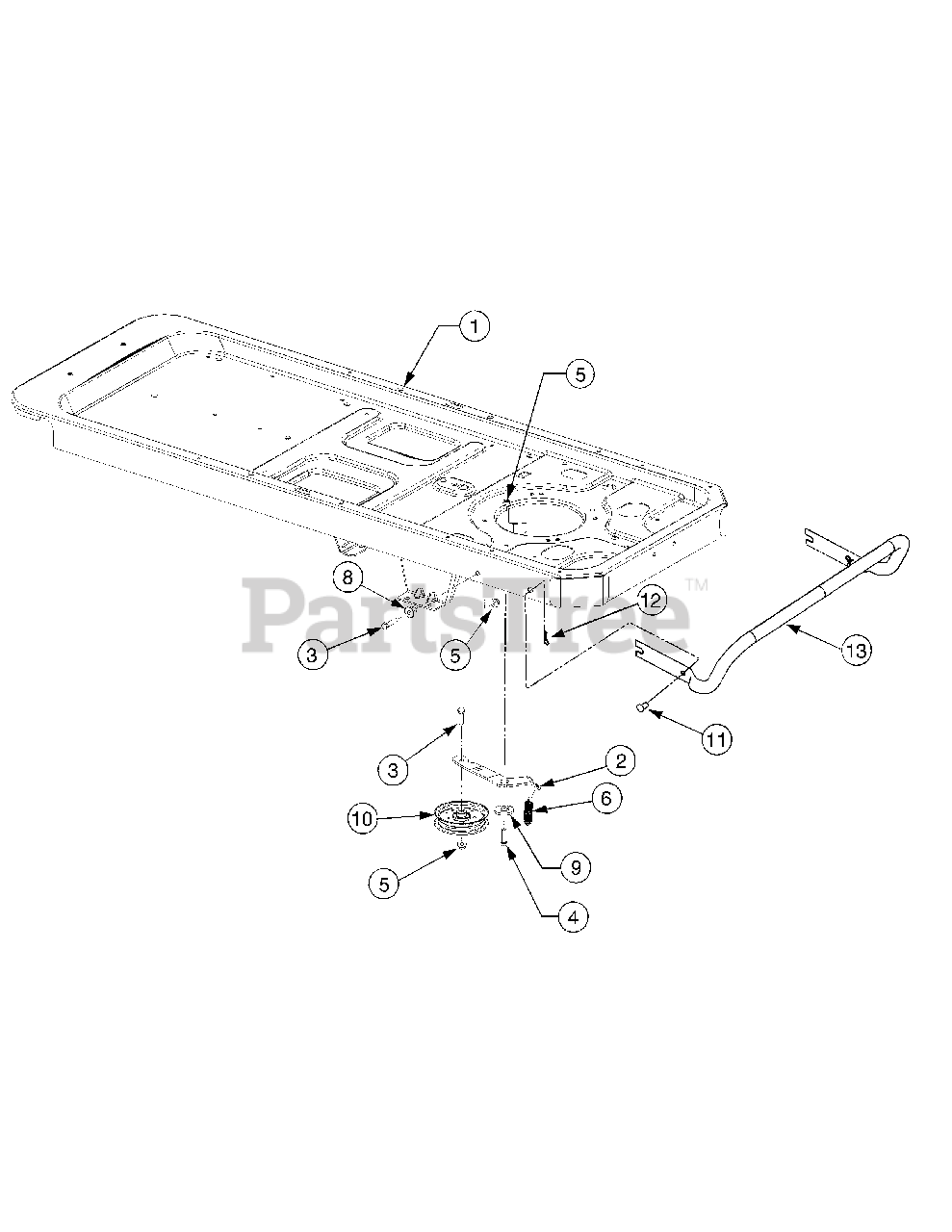

Frame & Drive Idler Assembly Parts Diagram

  • Title

1

MTD 603-04680A

Frame Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04680A-0637

FRAME ASM-RZT - POWDER BLACK (0637)

$897.99

$

Usually ships in 3-6 days

0

MTD 603-04680A-0606

FRAME ASM-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04680A-0638

FRAME ASM-RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04680A-0650

FRAME ASM-RZT - RED METALLIC (0650)

$

$

Not available

MTD 603-04680A-0691

FRAME ASM-RZT - BLACK JACK (0691)

$

$

Not available

MTD 603-04680A-0709

FRAME ASM-RZT - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04680A-4015

FRAME ASM-RZT - FIRE RED (4015)

$

$

Not available

MTD 603-04680A-4021

FRAME ASM-RZT - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04680A-4033

FRAME ASM-RZT - FLINT MICA (4033)

$

$

Not available

$780.99

$

Usually ships in 3-6 days

0

2

MTD 703-05829

Idler Arm, Drive

Variations

MTD 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

3

MTD 710-0520

Hex Screw 3/8-16 x 1.50

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 732-0626

Ext. Spring 5.06" Lg.

$11.99

$

In Stock, only 4 left!

0

8

MTD 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

In Stock, Qty 7

0

9

MTD 738-04162C

Shoulder Spacer .884 x .190

$12.99

$

In Stock, Qty 20+

0

10

MTD 756-04129B

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

11

MTD 911-0332

Clevis Pin .50 x .78" Lg.

$14.99

$

In Stock, Qty 20+

0

12

MTD 914-04023

Cotter Pin .080 x 1.56
(Superseded to 714-04023)

$3.99

$

In Stock, Qty 20+

0

13

MTD 749-04358

Bumper Tube

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04358-0637

BUMPER-REAR RZT - POWDER BLACK (0637)

$

$

Not available

MTD 749-04358-0638

BUMPER-REAR RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
