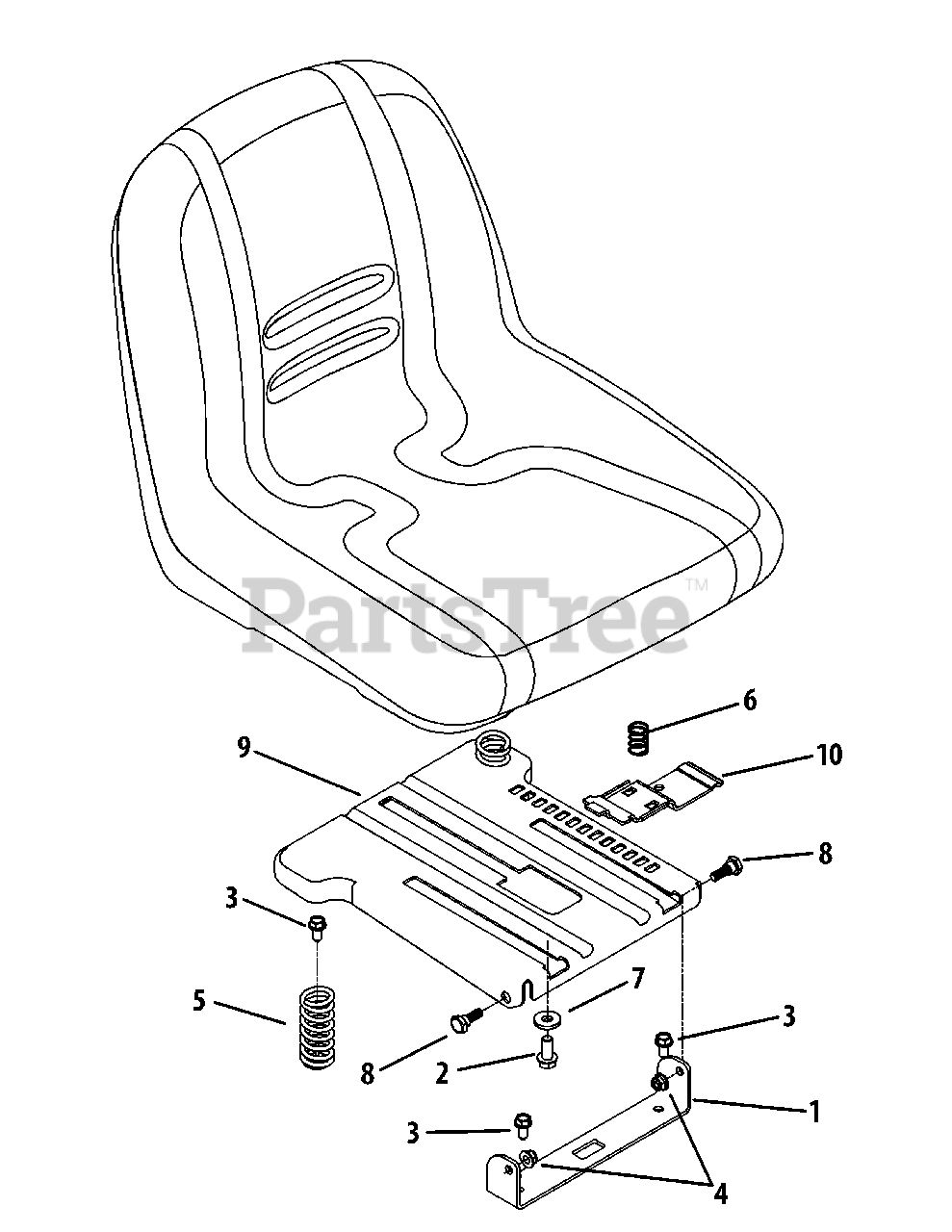

MTD 17AF2ACP004 - MTD Gold Zero-Turn Mower (2009) Seat Adjustment Parts Lookup with Diagrams

1

MTD 703-06941-0691

Seat Bracket

$

Not available 

2

MTD 710-04482

Hex Flange Bolt, 3/8-16 x .875

$4.99

$

In Stock, Qty 10

3

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

4

MTD 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

5

MTD 732-04035

Compression Spring

$10.99

$

In Stock, Qty 5

6

MTD 732-04563

Compression Spring

$5.99

$

In Stock, only 3 left!

7

MTD 736-0258

Flat Washer, .385 x 1.0 x .135

$4.99

$

In Stock, Qty 10

8

MTD 938-0296

Shoulder Screw, .437 x .268 x 5/16-18

(Superseded to 738-0296) 

$4.49

$

In Stock, only 3 left!

9

MTD 783-06049-0691

Seat Mount Bracket

(Superseded to 783-06049-0637) 

$72.99

$

Usually ships in 3-6 days

10

MTD 783-06050

Seat Adjustment Lever
