17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Deck Lift Parts Diagram

Zero-Turn Mower

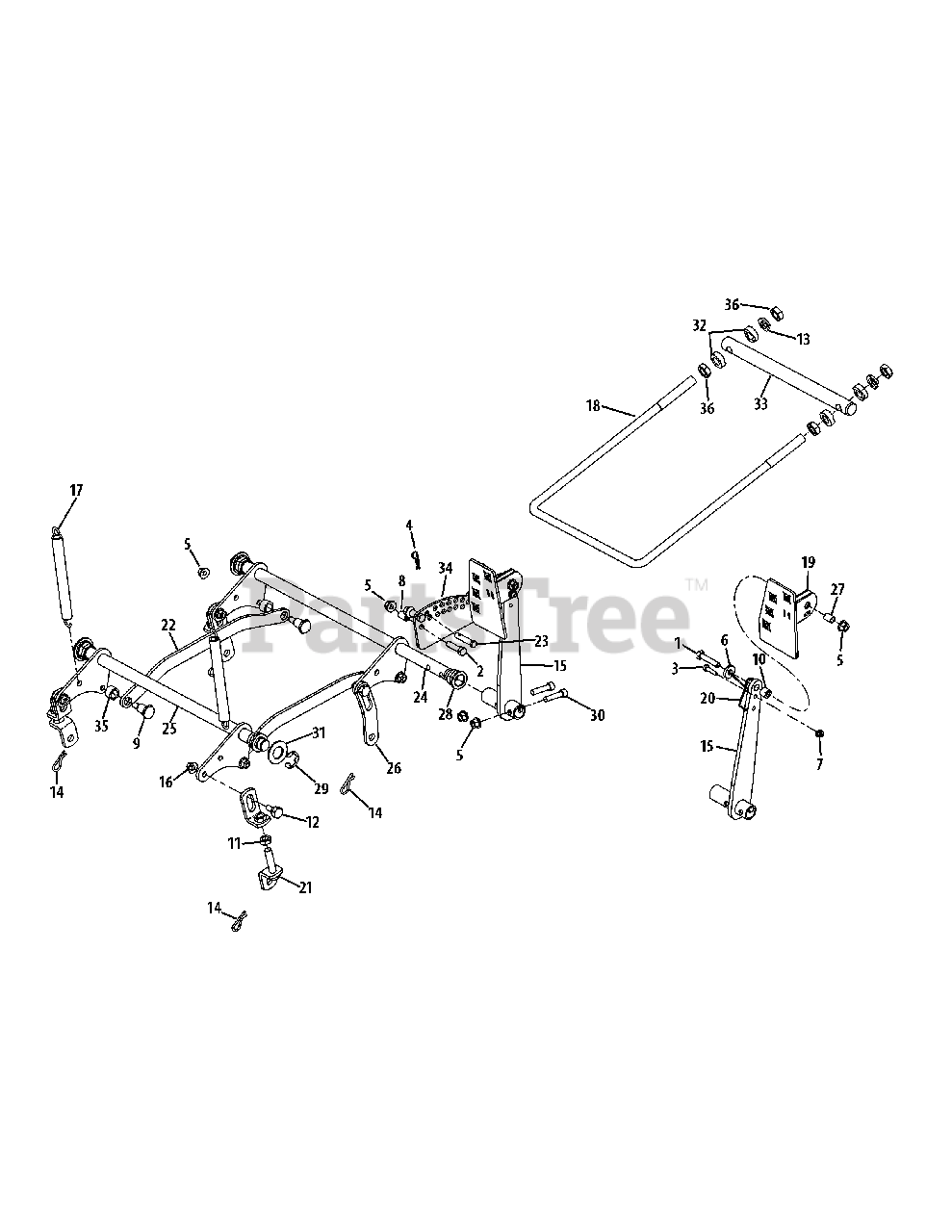

Deck Lift Parts Diagram

  • Title

1

MTD 00008495

Hex Screw, 3/8-16 x 1.75

$6.49

$

In Stock, Qty 9

0

2

MTD 00011438

Hex Screw, 3/8-16 x 1.50
(Superseded to 710-06021)

$3.49

$

In Stock, only 2 left!

0

3

MTD 00013416

Hex Screw, 1/4-20 x 1.00
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

4

MTD 00021956

Hair Pin, 3/8 x 1.562 x .080
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

5

MTD 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

6

MTD 00083192

Washer, .390 x 1.00 x .180
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 912-3027

Flange Top Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 01003468

Spacer, .375 x .500 x .750

$

$

Not available

9

MTD 01003536

Shoulder Bolt, 3/8-16 x .625 x .830
(Superseded to 738-05007)

$8.49

$

In Stock, Qty 6

0

10

MTD 01007312

Spacer, .385 x .625 x .500

$21.99

$

Usually ships in 3-6 days

0

11

MTD 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 6

0

12

MTD 02000393

Shoulder Bolt, 3/8-16 x .56 x .27
(Superseded to 738-05008)

$7.99

$

In Stock, Qty 7

0

13

MTD 02000671

Lock Washer, .633 x 1.07 x .161
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 15

0

14

MTD 02000673

Hair Pin, 1/2 x 1.625 x .125
(Superseded to 914-0209)

$3.49

$

In Stock, only 1 left!

0

15

MTD 02002374

Foot Lift Pivot Assembly

Variations

MTD 02002374-0637

PIVOT ASM - FOOT L - POWDER BLACK (0637)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

16

MTD 02002382

Adjustable Deck Lift Bracket

$12.99

$

In Stock, Qty 11

0

17

MTD 02002629

Extension Spring, .75 x 7.89 x .14

$16.99

$

In Stock, only 2 left!

0

18

MTD 02002879

Front Lift Rod

$35.99

$

In Stock, only 4 left!

0

19

MTD 02002880-0637

Foot Pedal Assembly

$

$

Not available

20

MTD 02002882

Torsion Spring, .900 x 2.3 x .09

$9.99

$

In Stock, only 1 left!

0

21

MTD 02002890

Lower Bracket Assembly

$33.99

$

In Stock, only 2 left!

0

22

MTD 02002893

Lift Connecting Link

$27.99

$

In Stock, only 1 left!

0

23

MTD 02002907

Clevis Pin, 3/8 x 2.05
(Superseded to 711-06098)

$3.99

$

In Stock, only 3 left!

0

24

MTD 02002915

Front Shaft Assembly

$

$

Not available

25

MTD 02002916

Rear Shaft Assembly

$106.99

$

Usually ships in 3-6 days

0

26

MTD 02002979

Curved Link Plate

$21.99

$

In Stock, only 3 left!

0

27

MTD 02003436

Spacer, .380 x .500 x .667

$6.49

$

Usually ships in 3-6 days

0

28

MTD 02003685

Hex Flange Bearing, 7/8

$8.99

$

In Stock, Qty 5

0

29

MTD 02003716

Retaining Clip, .675
(Superseded to 716-0136)

$8.49

$

In Stock, Qty 9

0

30

MTD 02003717

Socket Cap Screw, 3/8-16 x 1.50
(Superseded to 710-06024)

$3.99

$

Usually ships in 3-6 days

0

31

MTD 02003720

Washer, .940 x 1.75 x .110
(Superseded to 736-05011)

$4.99

$

Usually ships in 3-6 days

0

32

MTD 02003751

Spacer, .635 x 1.2 x .41
(Superseded to 750-05621)

$3.99

$

In Stock, Qty 14

0

33

MTD 02004227

Trailing Link Pivot Rod

$52.99

$

Usually ships in 3-6 days

0

34

MTD 02004694-0637

Index Plate

$

$

Not available

35

MTD 02005535

Spacer, 632 x .877 x .548

$5.99

$

Usually ships in 3-6 days

0

36

MTD 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.49

$

In Stock, Qty 15

0
