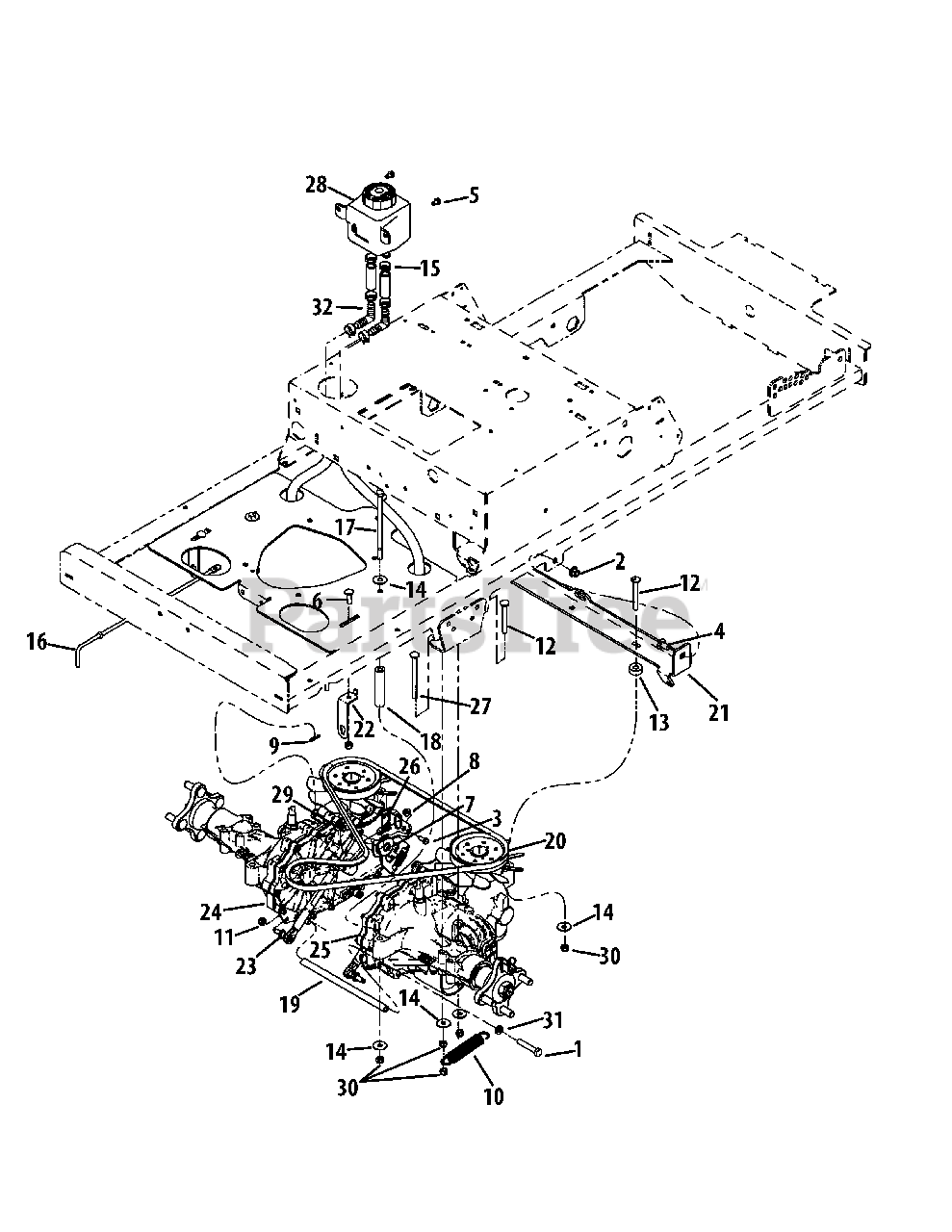

17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Drive Parts Diagram

Zero-Turn Mower

Drive Parts Diagram

  • Title

1

MTD 00012172

Hex Screw, 3/8-16 x 2.00
(Superseded to 710-3096)

$7.49

$

In Stock, Qty 20+

0

2

MTD 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0599

Hex Flange Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

6

MTD 01000641

Carriage Bolt, 5/16-18 x 1.00

$3.49

$

Usually ships in 3-6 days

0

7

MTD 01001919

Shoulder Bolt, 1/4-28 x .38 x .465
(Superseded to 938-0826)

$11.99

$

In Stock, Qty 7

0

8

MTD 912-3027

Flange Toplock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 914-0104

Hair Pin, 1/8 x 1.125 x .072
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

10

MTD 01002874

Extension Spring, .865 x 4.7 x .12

$10.99

$

In Stock, Qty 20+

0

11

MTD 01003561

Nylock Nut, M8-1.25

$3.99

$

Usually ships in 3-6 days

0

12

MTD 01005340

Carriage Bolt, 5/16-18 x 2.75
(Superseded to 710-06075)

$6.49

$

In Stock, only 1 left!

0

13

MTD 750-3119

Spacer, .406 x 1.00 x .38

$10.99

$

In Stock, Qty 20+

0

14

MTD 01009937

Washer, .313 x 1.06 x .062

$3.99

$

Usually ships in 3-6 days

0

15

MTD 02001111

Hose Clamp, .750

$6.49

$

In Stock, only 2 left!

0

16

MTD 02001332

Pump Relay Rod

$21.99

$

In Stock, only 1 left!

0

17

MTD 02001556

Hex Screw, 5/16-18 x 6.00
(Superseded to 710-06071)

$5.49

$

Usually ships in 3-6 days

0

18

MTD 02002646

Spacer, .375 x .750 x 3.30

$11.99

$

In Stock, only 4 left!

0

19

MTD 02002647

Transmission Support Tube

$

$

Not available

20

MTD 02002648

V-Belt
(Superseded to 02002648P)

$48.99

$

In Stock, Qty 20+

0

21

MTD 02002679-0637

Transmission Bracket

$101.99

$

Usually ships in 3-6 days

0

22

MTD 02002965-0637

Neutral Bracket

$6.49

$

Usually ships in 3-6 days

0

23

MTD 02003622

Damper

$87.99

$

In Stock, Qty 11

0

24

MTD 02004678P

LH Transmission

Note: Rimula 15W40 fluid recommended

$1741.99

$

Usually ships in 3-6 days

0

24

MTD 02002150

Filter
(Superseded to HG-52114P)

Note: Not shown

$31.99

$

Usually ships in 3-6 days

0

25

MTD 02004679P

RH Transmission

Note: Rimula 15W40 fluid recommended

$1758.99

$

Usually ships in 3-6 days

0

25

MTD 02002150

Filter
(Superseded to HG-52114P)

Note: Not shown

$31.99

$

Usually ships in 3-6 days

0

26

MTD 02004681

Control Arm Damper Bracket

$

$

Not available

27

MTD 02005326

Carriage Bolt, 5/16-18 x 4.0
(Superseded to 710-06027)

$3.49

$

Usually ships in 3-6 days

0

28

MTD 631-04286

Expansion Tank Assembly

$41.99

$

In Stock, Qty 6

0

29

MTD 712-04177

Jam Nut, 1/4-28

$6.49

$

In Stock, only 4 left!

0

30

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

31

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

32

MTD 737-04342

Elbow, 90

$8.49

$

Usually ships in 3-6 days

0
