17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Front Axle Parts Diagram

Zero-Turn Mower

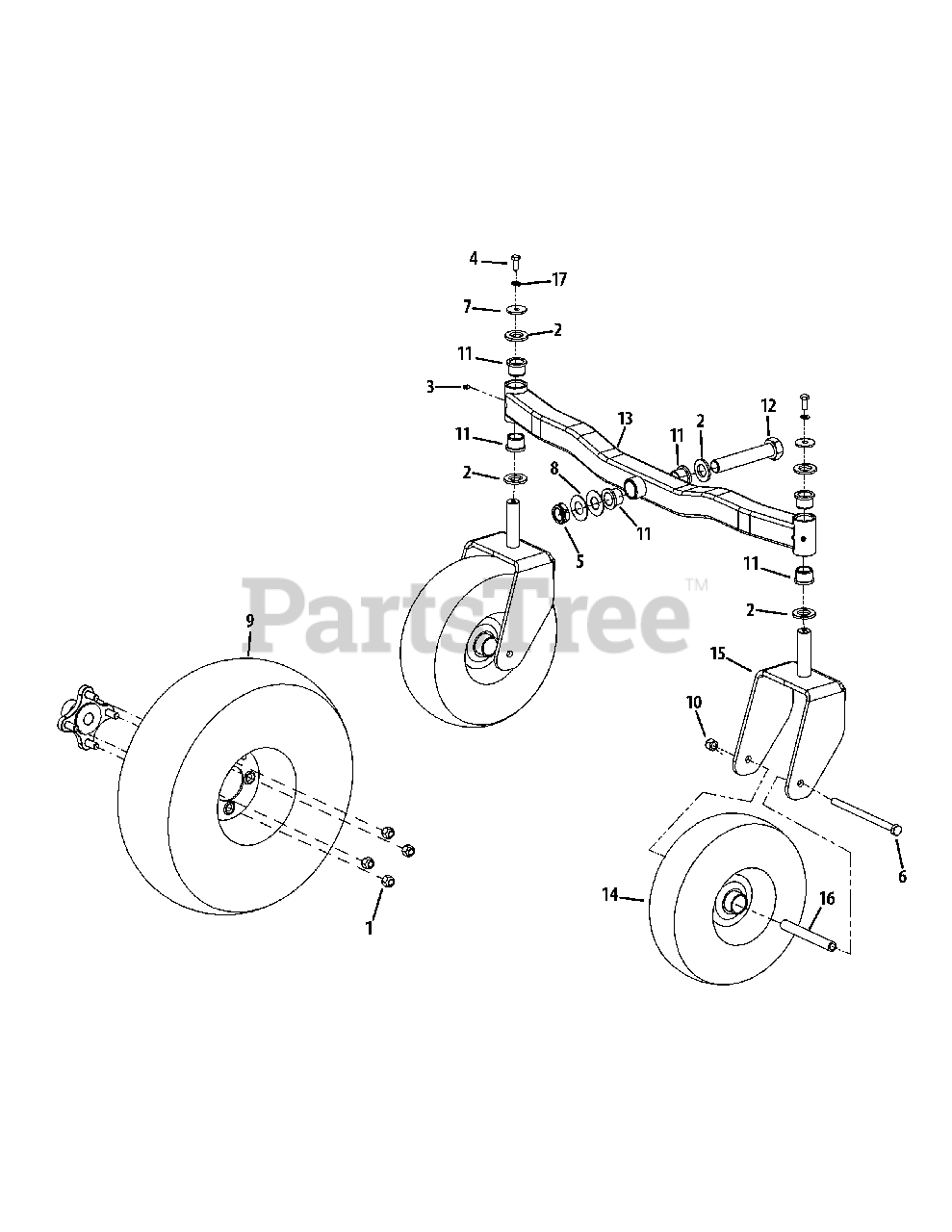

Front Axle Parts Diagram

  • Title

1

MTD 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 20+

0

2

MTD 00023822

Washer, 1.00 x 1.75 x .172
(Superseded to 936-0274)

$9.49

$

In Stock, Qty 8

0

3

MTD 00060078

Grease Fitting, 1/4-28
(Superseded to 737-04345)

$4.99

$

In Stock, only 4 left!

0

4

MTD 710-3001

Hex Screw, 3/8-16 x .880

$7.49

$

In Stock, Qty 5

0

5

MTD 01000678

Jam Nut, 1-14
(Superseded to 712-05008)

$15.99

$

In Stock, only 1 left!

0

6

MTD 01006961

Hex Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 16

0

7

MTD 01009253

Washer, .390 x 1.50 x .122
(Superseded to 936-0227)

$

$

Not available

8

MTD 02000588

Washer, 1.00 x 2.00 x .075
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

9

MTD 634-04747

Wheel Assy., 20 x 8-10
(Superseded to 634-04495)

$475.99

$

Usually ships in 3-6 days

0

9

MTD 02002097

Tire only

Note: Not shown

$

$

Not available

10

MTD 02002299

Nylock Nut, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

11

MTD 741-04488

Flange Bearing, 1.001 x 1.25

$9.99

$

In Stock, Qty 20+

0

12

MTD 02003804

Hex Screw, 1-14 x 5.5
(Superseded to 710-06026)

$49.99

$

In Stock, only 1 left!

0

13

MTD 02004600-0637

Front Axle Weldment

$131.99

$

Usually ships in 3-6 days

0

14

MTD 634-04748

Wheel Assembly, 13 x 5-6

Note: (Groove tire)

$128.99

$

Usually ships in 3-6 days

0

14

734-04255a

Tire Only, Groove, 13X5.0-6

Note: Not shown

$

$

Not available

14

MTD 02002105

Tire Only, Smooth, 13X5.0-6

Note: Not shown, if equipped

$151.99

$

Usually ships in 3-6 days

0

14

MTD 02002106

Bearings

Note: Not shown

$34.99

$

In Stock, only 4 left!

0

14

MTD 02002107

Bushings

Note: Not shown

$6.99

$

In Stock, Qty 11

0

14

MTD 00023806

Grease Fitting
(Superseded to 737-0280)

Note: Not shown

$8.49

$

In Stock, only 4 left!

0

15

MTD 02005001-0637

Castor Wheel Mount Bracket Assy.

$112.99

$

In Stock, only 4 left!

0

16

MTD 750-04775A

Spacer, .51 x .75 x 5.825

$29.99

$

In Stock, Qty 20+

0

17

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
