17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Lapbar Parts Diagram

Zero-Turn Mower

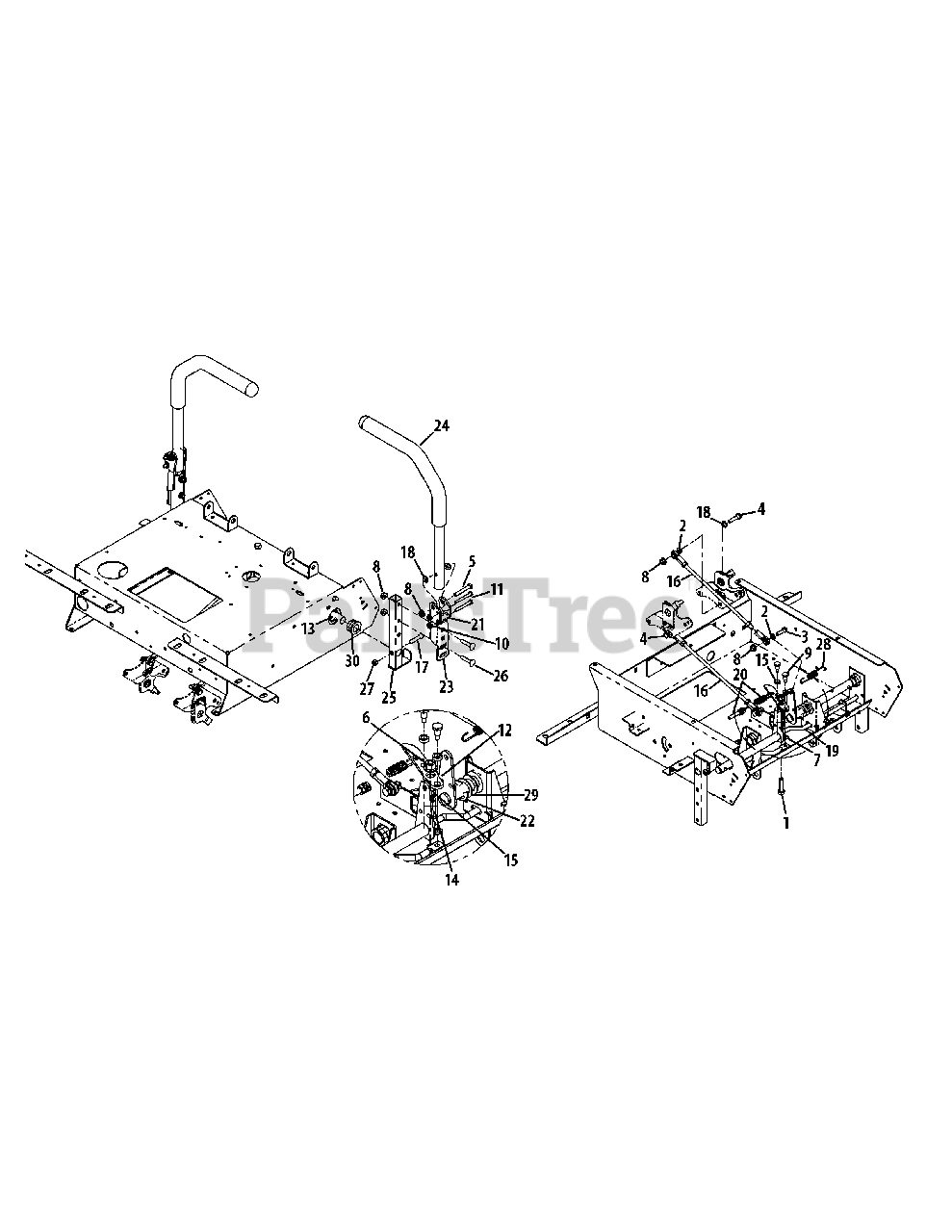

Lapbar Parts Diagram

  • Title

1

MTD 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.49

$

In Stock, only 2 left!

0

2

MTD 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

3

MTD 00012180

Hex Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

4

MTD 00013116

Hex Screw, 5/16-18 x 1-1/4

$5.49

$

In Stock, only 1 left!

0

5

MTD 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 18

0

6

MTD 00022560

Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

7

MTD 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

8

MTD 712-3004A

Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

9

MTD 01001919

Shoulder Screw, 1/4-28
(Superseded to 938-0826)

$11.99

$

In Stock, Qty 7

0

10

MTD 912-3027

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 01006898

Hex Cap Screw, 1/4-20 x 2.00

$6.49

$

Usually ships in 3-6 days

0

12

MTD 02002684

Brake Lever Plate

$

$

Not available

13

MTD 02002723

Steering Input Shaft Assembly

$62.99

$

In Stock, only 1 left!

0

14

MTD 02002844

Spacer, .385 x .625 x .869

$

$

Not available

15

MTD 02002885

Spacer, .380 x .563 x .196

$6.49

$

Usually ships in 3-6 days

0

16

MTD 02002992

Steering Link Rod

$67.99

$

Usually ships in 3-6 days

0

17

MTD 02002994

Socket Head Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 6

0

18

MTD 02003419

Bushing, .310 x .172 x .688 x .06

$3.99

$

In Stock, Qty 5

0

19

MTD 02003560

Control Lock Rod

$

$

Not available

20

MTD 02003568

Control Cable Lock Out

$48.99

$

In Stock, only 1 left!

0

21

MTD 02003644

Spacer, .25 x .38 x 1.13

$5.99

$

Usually ships in 3-6 days

0

22

MTD 02003716

E-Clip Retainer Ring
(Superseded to 716-0136)

$8.49

$

In Stock, Qty 9

0

23

MTD 02003853-0637

Lapbar Pivot Bracket

$32.99

$

In Stock, only 1 left!

0

24

MTD 02003855

Lapbar Handle/Grip Assembly

$123.99

$

Usually ships in 3-6 days

0

25

MTD 680-00050-0637

Pivot Bracket Weldment

$61.99

$

In Stock, only 2 left!

0

26

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

27

MTD 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

28

MTD 732-04610

Extension Spring, .544 x 3.35

$9.99

$

Usually ships in 3-6 days

0

29

MTD 936-0287

Flat Washer, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

30

MTD 941-0598

Hex Flange Bearing, .752

$11.99

$

In Stock, Qty 20+

0
