17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Seat Assembly Parts Diagram

Zero-Turn Mower

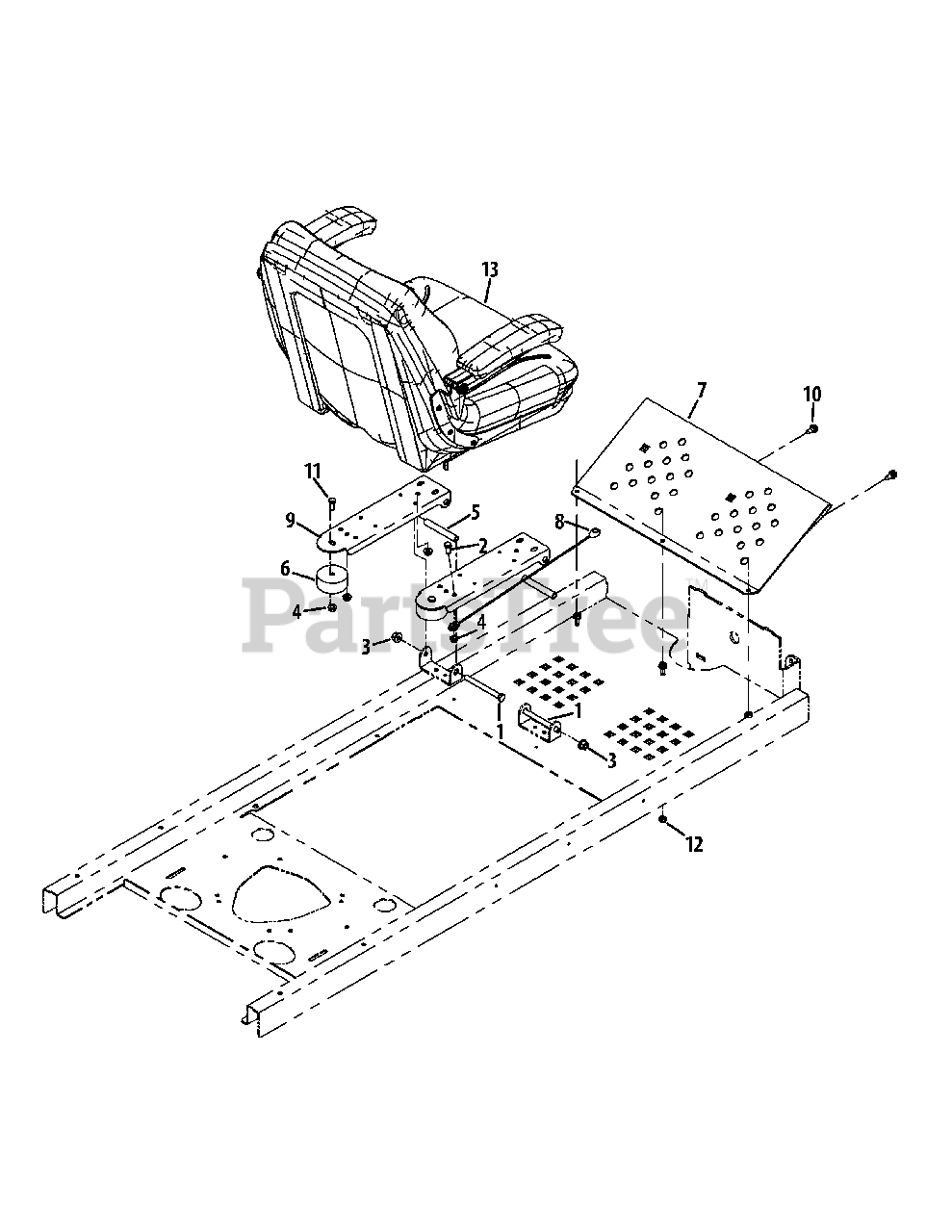

Seat Assembly Parts Diagram

  • Title

1

MTD 00011925

Hex Cap Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$7.99

$

In Stock, Qty 20+

0

2

MTD 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

3

MTD 00022560

Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

5

MTD 01009872

Spacer, .370 ID x .500 x 3.45

$17.99

$

In Stock, only 2 left!

0

6

MTD 02002952

Bumper, 2.50 x 1.13

$44.99

$

In Stock, only 4 left!

0

7

MTD 02002960-0637

Foot Rest Bracket

$

$

Not available

8

MTD 02004062P

Lift Cable

$18.99

$

Usually ships in 3-6 days

0

9

MTD 703-06691-0637

Seat Mounting Bracket

$15.99

$

In Stock, only 1 left!

0

10

MTD 710-04484

Self Tapping Screw 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

11

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

13

MTD 757-04115

Seat

$

$

Not available

MTD 02002255

Armrest kit

Note: Not shown

$261.99

$

Usually ships in 3-6 days

0

MTD 710-3256

Screw, Button Head 1/4-20 x .50

Note: Not shown

$10.99

$

Usually ships in 3-6 days

0
