17ARCACS011 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2015) Mower Deck 42-Inch Parts Diagram

Mustang XP 42" Zero-Turn Mower

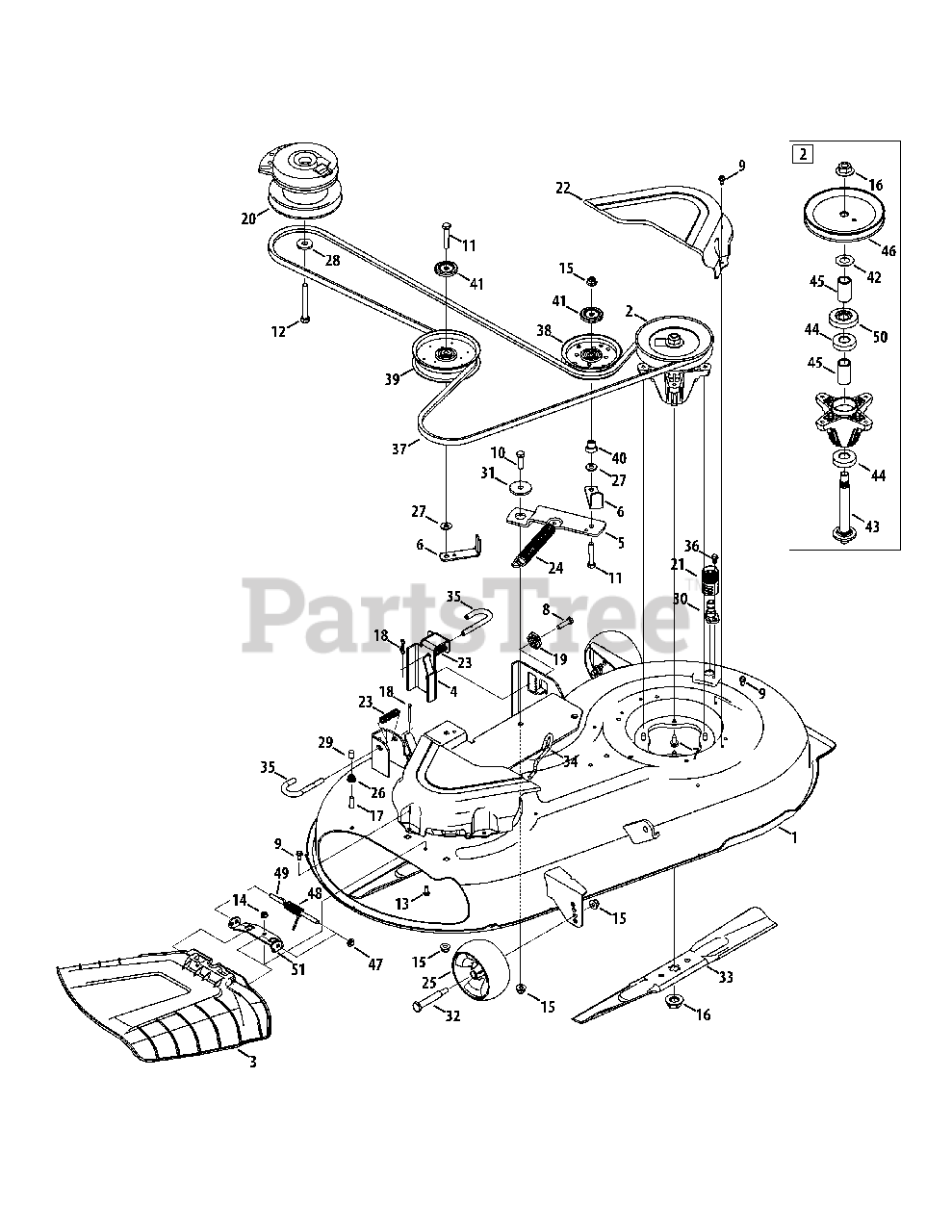

Mower Deck 42-Inch Parts Diagram

  • Title

1

Troy-Bilt 903-05209-4033

42" Deck
(Superseded to 903-05209D-4033)

$784.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-04822B

Spindle Assembly

$121.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 631-04354B

Chute Deflector Assembly
(Superseded to 631-04354C)

$41.99

$

In Stock, Qty 17

0

4

Troy-Bilt 603-05215-0637

Deck Lift Bracket
(Superseded to 603-05215A-0637)

$61.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$29.99

$

In Stock, Qty 6

0

6

Troy-Bilt 703-09583-0637

Bracket Belt Guard

$12.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3120

Hex Cap Screw, 3/8-16 x 1.50

$3.99

$

In Stock, Qty 12

0

9

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3157A

Screw, 7/16-20 x 3.25

$9.99

$

In Stock, Qty 10

0

13

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

18

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 917-05298

Deck Adjustment Gear

$12.99

$

In Stock, Qty 8

0

20

Troy-Bilt 917-05121

Electric PTO Clutch

$444.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 921-04041

Water Nozzle Adapter

$21.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-08698

Belt Cover
(Superseded to 731-08698B)

$19.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 15

0

24

Troy-Bilt 732-04960

Extension Spring, .94 Dia. x 7.57

$13.99

$

In Stock, Qty 5

0

25

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$19.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0322

Flat Washer, .450 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 720-05010

Cap, .290 x .500

$3.99

$

In Stock, Qty 13

0

30

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$12.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$8.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 942-04312

Blade, 2 in 1, 21.23
(Superseded to 942-04312A)

$29.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-06292

Deck Hanger Rod

$10.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 738-04502

Shoulder Screw, 1/4-20 x 0.50

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 954-04033A

V-Belt

$50.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 756-05042

Idler Pulley, 4.25 Dia.

$28.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 756-04511B

Idler Pulley, 5.00 Dia.

$49.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 748-05029A

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 941-0919B

Ball Bearing

$20.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 756-05111

Deck Pulley

$27.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 726-04009

Push Cap
(Superseded to 726-04009A)

$6.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 14

0

49

Troy-Bilt 747-06290B

Hinge Pin

$3.99

$

In Stock, Qty 16

0

50

Troy-Bilt 783-08435

Bearing Shield

$6.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

Troy-Bilt 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 18

0

$13.99

$

In Stock, Qty 18

0
