17ARCACS011 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2016) Platform Parts Diagram

Mustang XP 42" Zero-Turn Mower

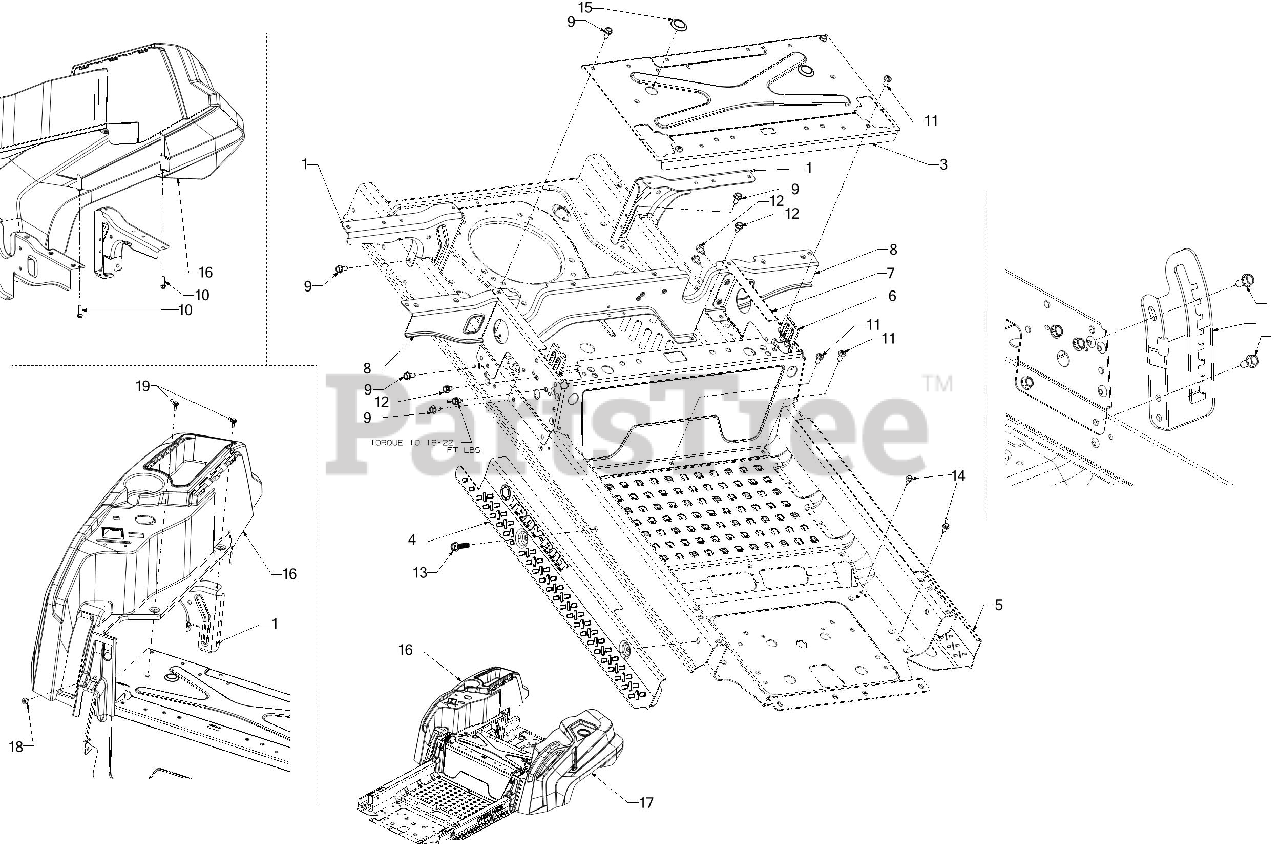

Platform Parts Diagram

  • Title

1

Troy-Bilt 703-08720B-0638

REAR TANK BRACKET

$30.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-08762C

HEIGHT INDEX BRACKET

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 703-09045F-0638

SEATBOX TOP PLATE
(Superseded to 703-09045J-0638)

$42.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09119B-0638

FRAME SUPPORT (RH)

$45.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-09139-0638

FRAME SUPPORT (LH)
(Superseded to 703-09139C-0638)

$39.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-09211A-0637

LAPBAR BRACE BRACKET

$7.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-09320A-0638

SEAT FRAME
(Superseded to 703-09320F-0638)

$71.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-09332A-0638

REAR SEATBOX BRACE
(Superseded to 703-11179-0638)

$43.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-05109

SCREW 5/16-14 x 1

$3.49

$

In Stock, Qty 7

0

11

Troy-Bilt 710-05424

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 5

0

12

Troy-Bilt 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1315

SCREW 3/8-16 X1.250

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-3045A

PLUG

$4.49

$

In Stock, Qty 11

0

16

Troy-Bilt 931-09040

CONSOLE (RH)

$108.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 931-10106

CONSOLE (LH)

$108.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 738-04549A

TORX SHOULDER SCREW 1/4-20

$6.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

$2.99

$

In Stock, Qty 20+

0
