17ARCACW309 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2015) Drive System Parts Diagram

Mustang XP 54" Zero-Turn Mower

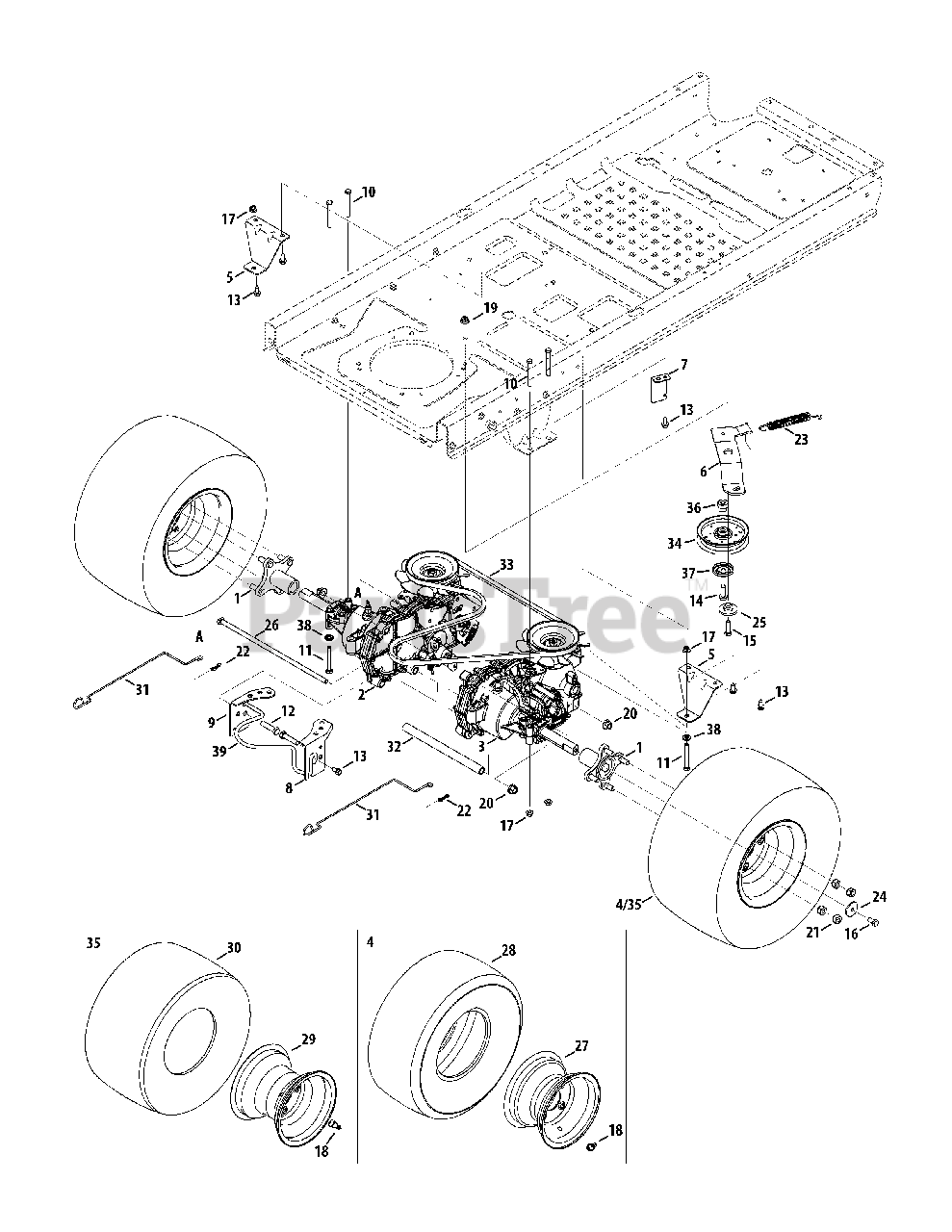

Drive System Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub Assembly

$108.99

$

In Stock, Qty 10

0

2

MTD 918-05128A

Transmission Assembly, LH
(Superseded to 918-05128B)

$1364.99

$

Usually ships in 3-6 days

0

3

MTD 918-05129A

Transmission Assembly, RH
(Superseded to 918-05129B)

$1364.99

$

Usually ships in 3-6 days

0

4

Complete Wheel, 18 x 8.5-8 (42" & 46)

Note: Not used on this model

$

$

Not available

5

MTD 703-08570-0637

Transmission Mounting Bracket

$11.99

$

Usually ships in 3-6 days

0

6

MTD 703-08605

Idler Bracket

$39.99

$

Usually ships in 3-6 days

0

7

MTD 703-08613A-0637

Spring Mounting Bracket

$4.99

$

In Stock, Qty 6

0

8

MTD 703-08614A-0637

Transmission Bracket

$10.99

$

Usually ships in 3-6 days

0

9

MTD 703-08615A-0637

Transmission Bracket

$10.99

$

Usually ships in 3-6 days

0

10

MTD 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 7

0

12

MTD 710-04092

Hex Screw, 7/16-20 x 1.75

$3.99

$

Usually ships in 3-6 days

0

13

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

14

MTD 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0514

Hex Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-3119

Hex Screw, 3/8-16 x .75

$6.49

$

In Stock, Qty 7

0

17

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 934-0255

Valve Tubeless

$3.99

$

In Stock, Qty 20+

0

19

MTD 912-3020

Jam Lock Nut, 3/8-16

$5.99

$

In Stock, Qty 10

0

20

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-3050

Lug Nut, 7/16-14

$9.49

$

In Stock, Qty 20+

0

22

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

23

MTD 732-04229

Extension Spring, .75 Dia. x 6.02

$19.99

$

In Stock, Qty 6

0

24

MTD 936-0227

Flat Washer, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

25

MTD 738-04162C

Shoulder Spacer, .884 x .190

$12.99

$

In Stock, Qty 20+

0

26

MTD 738-04192B

Rod, .405 Dia. x 14.0 LG

$19.99

$

Usually ships in 3-6 days

0

27

Rim Only, (42" & 46")

Note: Not used on this model

$

$

Not available

28

Tire Only, 18 x 8.5-8 (42" & 46")

Note: Not used on this model

$

$

Not available

29

MTD 603-04175-0662

Rim Only, (50" & 54")

$82.99

$

Usually ships in 3-6 days

0

30

MTD 734-1729-0901

Tire Only, 18 x 9.5-8 (50" & 54")
(Superseded to 734-1729-0906)

$

$

Not available

31

MTD 747-05657A

Bypass Rod
(Superseded to 747-05657B)

$13.99

$

Usually ships in 3-6 days

0

32

MTD 750-04561A

Tube, .51 ID x .75 OD x 10.2

$25.99

$

In Stock, only 2 left!

0

33

MTD 954-04317A

Belt, A-Type x 67.0

$50.99

$

In Stock, Qty 20+

0

34

MTD 756-05042

Idler Pulley, 4.25 Dia.

$28.99

$

In Stock, Qty 20+

0

35

MTD 634-04128-0911

Complete Wheel, 18 x 9.5-8 (50" & 54")
(Superseded to 634-04128-0916)

$

$

Not available

36

MTD 748-05029A

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

37

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

38

MTD 936-0264

Flat Washer, .330 x .630 x .064

$6.49

$

In Stock, Qty 11

0

39

MTD 747-06070

Engine Keeper Rod (46", 50" & 54")

$7.99

$

Usually ships in 3-6 days

0
