17ARCBDW011 - Troy-Bilt Mustang XP Pivot S 54" Zero-Turn Mower (2015) Front Axle Parts Diagram

Mustang XP Pivot S 54" Zero-Turn Mower

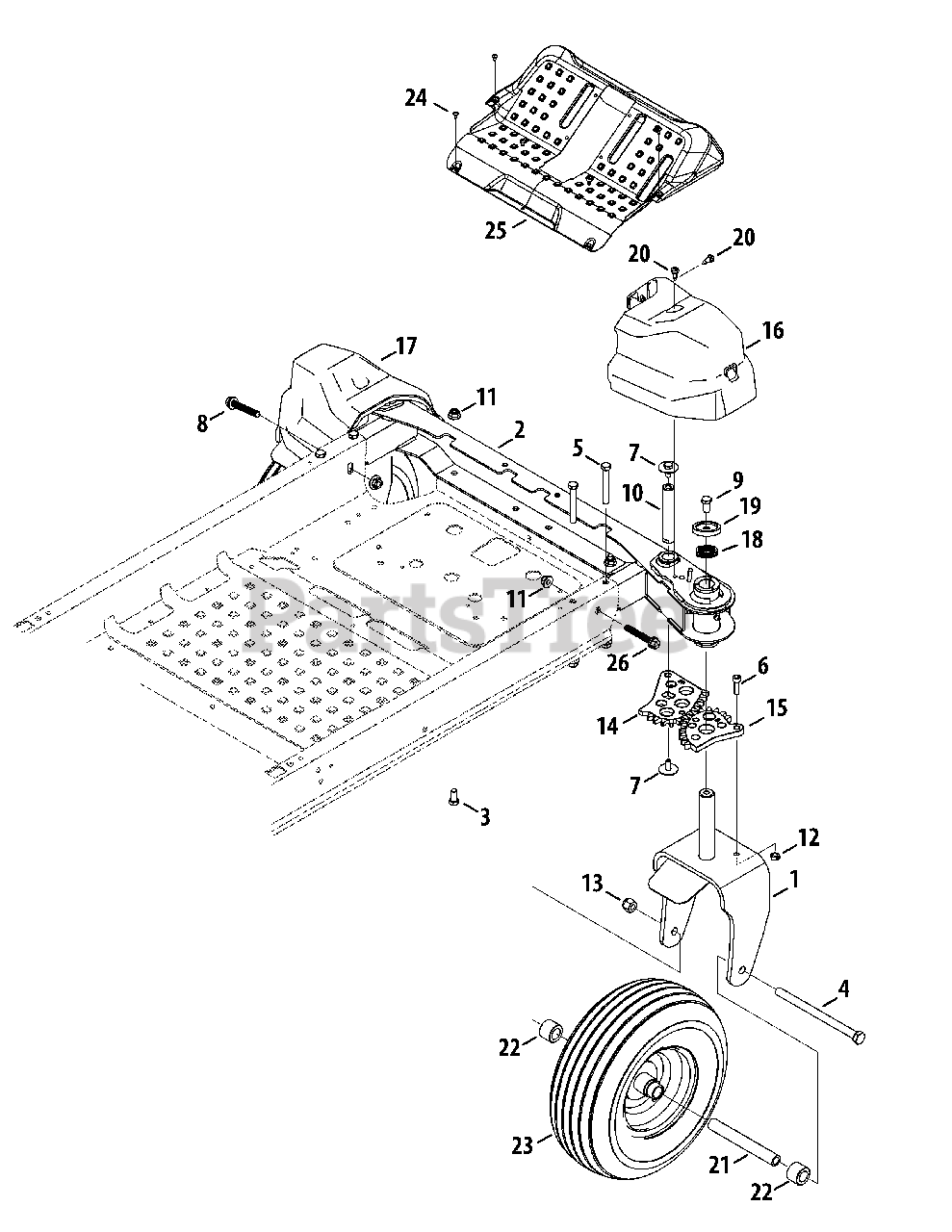

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-05059C-0637

Caster Wheel Bracket
(Superseded to 603-05059D-0637)

$140.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 903-05106

Front Axle
(Superseded to 903-05294A)

$508.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-0216

Hex Cap Screw, 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

4

Troy-Bilt 710-04652

Bolt, 1/2-20 x 7.25

$16.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04656A

Screw, 3/8-16 x 2.75

$6.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-05398

Socket Head Screw, 5/16-18 x 1.00

$2.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 710-06041

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-06045

Hex Flange Screw, 3/8-16 x 2.25

$4.99

$

In Stock, Qty 5

0

9

Troy-Bilt 710-3119

Hex Screw, 3/8-16 x .75

$6.49

$

In Stock, Qty 7

0

10

Troy-Bilt 711-06081A

Pivot Gear Steering Shaft

$20.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

13

Troy-Bilt 912-3058

Hex Lock Nut, 1/2-20

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 717-04952

12-Tooth Variable Gear

$49.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 717-05133

13-Tooth Variable Spur Gear

$47.99

$

In Stock, Qty 8

0

16

Troy-Bilt 731-09291A

Axle Cover, RH

$18.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 731-09320A

Axle Cover, LH

$18.99

$

In Stock, Qty 6

0

18

Troy-Bilt 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-05093

Shoulder Spacer, 1.75 x .180

$5.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 738-04549A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 750-04775A

Spacer, .51 ID x .75 OD x 5.825

$26.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 750-04792

Hub, .76 x 1.23 x .92 LG

$7.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 634-04711-0911

Wheel Assembly, 13 x 5-6
(Superseded to 634-04711A-0916)

Note: (Oyster)

$162.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 734-04255A-0901

Tire, Grooved, 13 x 5-6, CARLISLE
(Superseded to 734-04255A-0906)

Note: (not shown)

$76.99

$

In Stock, Qty 12

0

23

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$9.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$5.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-05070A

Self Tapping Screw, 1/4-20 x .50

$6.49

$

In Stock, Qty 12

0

25

Troy-Bilt 703-08642A-0638

Floor Board
(Superseded to 703-08642B-0638)

$128.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0
