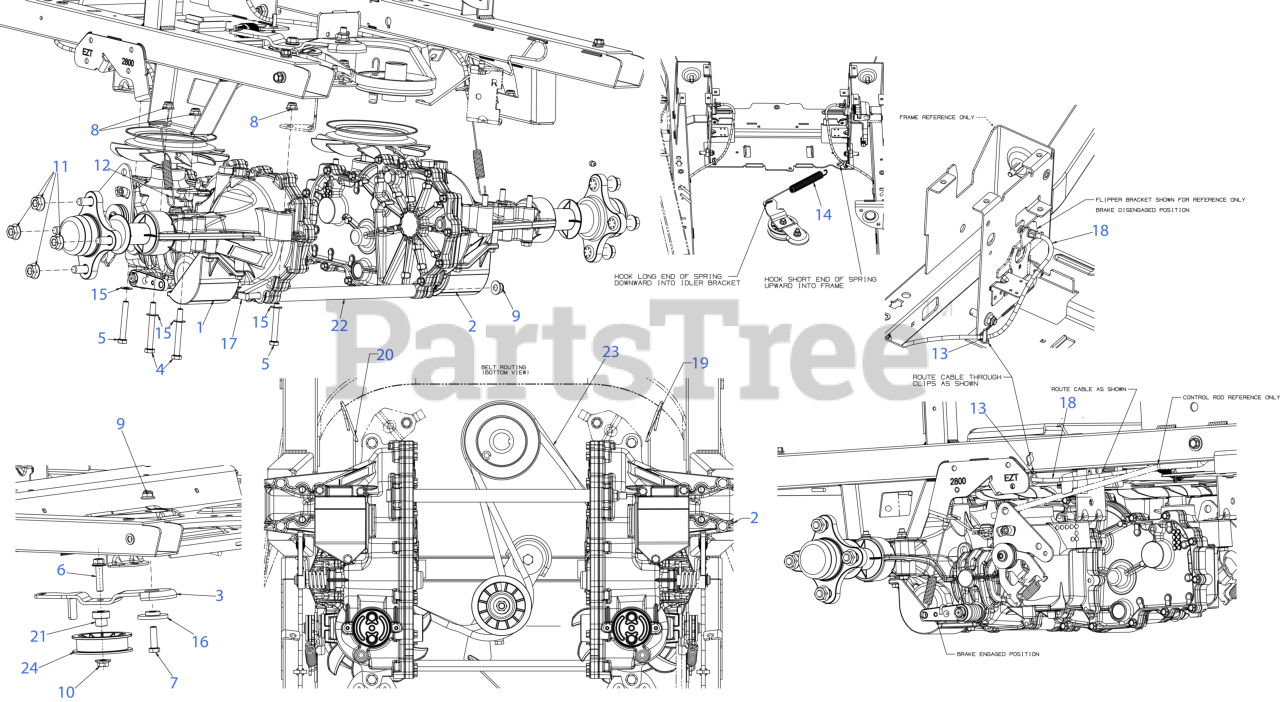

17ASFAC3066 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2021) Drive Parts Diagram

Mustang XP 54" Zero-Turn Mower

Drive Parts Diagram

  • Title

1

Troy-Bilt 618P07713B

HYDRO TRANSMISSION (LH)

Note: (See Separate Breakdown) (Cub Cadet Only)

$1821.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 618P07714B

HYDRO TRANSMISSION (RH)

Note: (See Separate Breakdown) (Cub Cadet Only)

$1584.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703E26186

HYDRO DRIVE IDLER BRACKET

$25.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 6

0

6

Troy-Bilt 710-06749

HEX HEAD BOLT (3/8-16:1.50 GR8)

$6.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-05160

HEX FLANGE NUT 7/16-14

$5.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 726-3055

CABLE RETAINER CLIP

$6.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 732-06226

EXTENSION SPRING .75 DIA X 10.27

$15.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 738-05554A

SUPPORT TUBE ROD

$13.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 746P05611B

PARK BRAKE CABLE

$35.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 747-07690A

HYDRO BYPASS ROD (RH)

$14.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 747-08130A

HYDRO BYPASS ROD (LH)

$14.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 750-07350

SUPPORT TUBE

$24.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 490-501-C069

Cub Cadet TRANS DRIVE BELT A x 67 RZT

Note: Retail Packaged Part

$50.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 490-501-Y069

Troy-Bilt TRANSMISSION DRIVE BELT

Note: Retail Packaged Part

$50.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, Qty 20+

0
