17ASFAC3066 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2021) Frame Parts Diagram

Mustang XP 54" Zero-Turn Mower

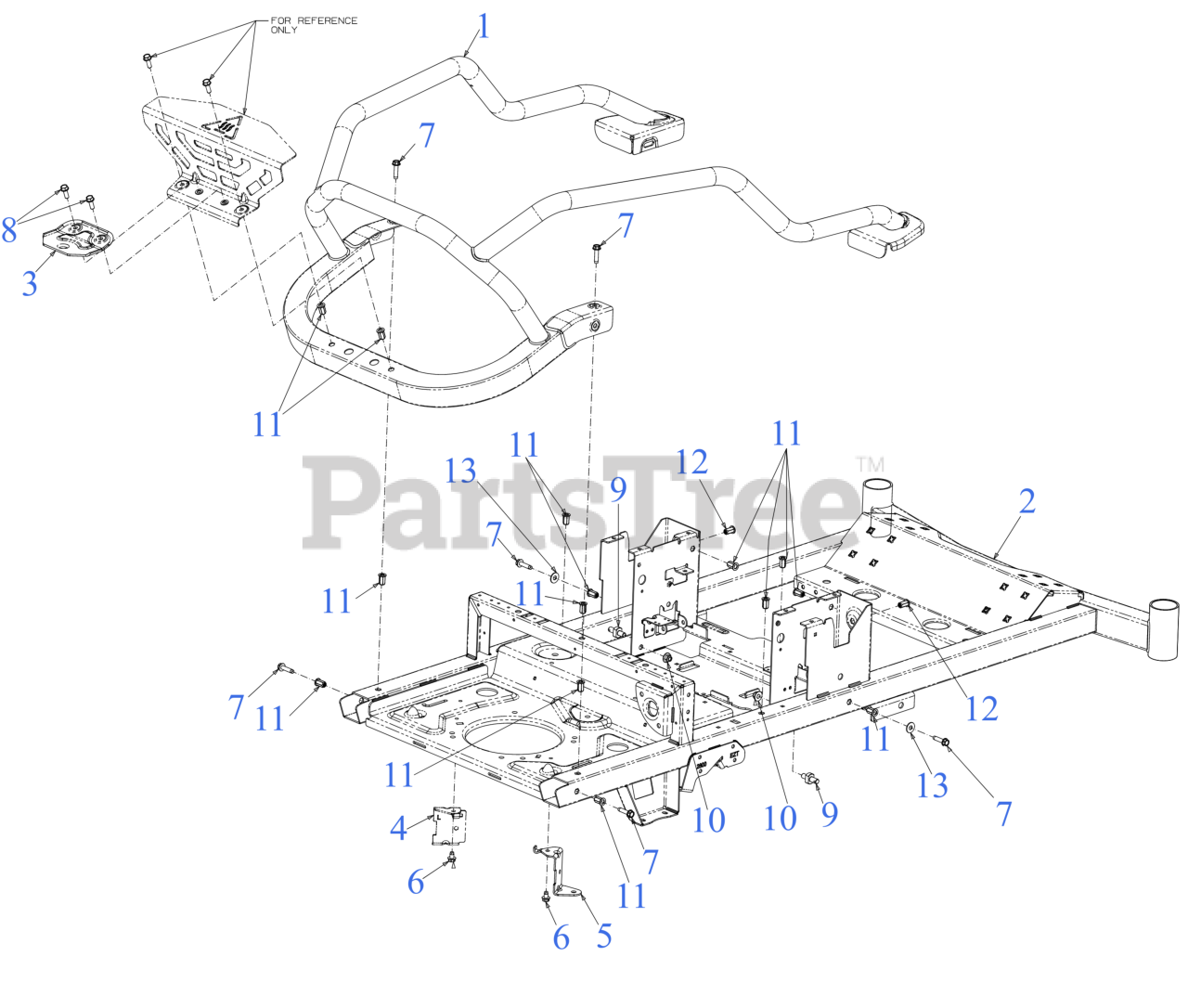

Frame Parts Diagram

  • Title

1

Troy-Bilt 603-05860

UPPER FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$317.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-07679

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$982.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703-12302

HITCH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$17.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-12963

TRANSMISSON MOUNT SUPPORT (LH)
(Superseded to 703-12963A)

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-13882

TRANSMISSON MOUNT SUPPORT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0817

SCREW 5/16-18 x 1.25

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 6

0

9

Troy-Bilt 711-09802

SHOULDER STUD

$3.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0
