17BE2ACG066 - Troy-Bilt Colt XP Zero-Turn Mower (2010) Rear Drive & Wheels Parts Diagram

Colt XP Zero-Turn Mower

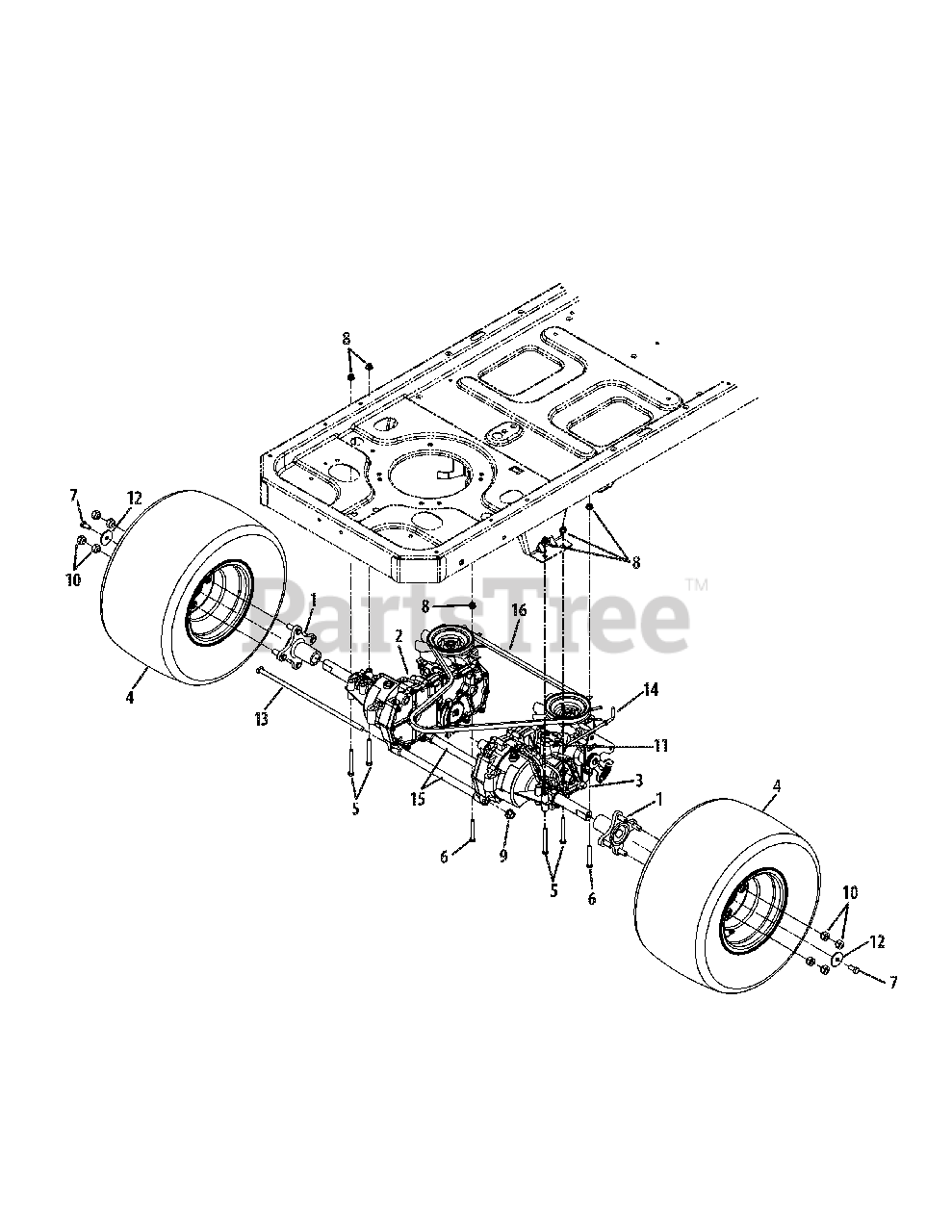

Rear Drive & Wheels Parts Diagram

  • Title

1

Troy-Bilt 918-04317

Wheel Hub

Note: Double D

$123.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 710-0852

Stud, Rib Neck, 7/16-14 x1.6

Note: Not shown

$6.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 918-04431A

LH Transmission Assembly
(Superseded to 918-04431B)

$1822.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 732-04448

Neutral Return Spring

Note: Not shown

$10.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 918-04432A

Transmission Assembly, RH
(Superseded to 918-04432B)

$1913.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 732-04448

Neutral Return Spring

Note: Not shown

$10.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 634-04294

Wheel Assembly, 18 x 8.5 x 8

$279.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 734-04246-0901

Tire, 18 x 8.5 x 8
(Superseded to 734-04246-0906)

Note: Not shown

$90.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 603-04173-0662

Rim Assembly

Note: Not shown

$93.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 934-0255

Valve Assembly

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0176

Hex Screw, 5/16-18 x 2.75

$4.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, Qty 8

0

7

Troy-Bilt 710-3119

Hex Lock Screw, 3/8-16 x .75

$7.49

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-04063

Hex Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0459

Hex Flange Lock Nut, 7/16-20

$5.49

$

In Stock, Qty 12

0

10

Troy-Bilt 712-3050

Lug Nut, 7/16-14

$10.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 914-0507

Cotter Pin, 3/32 x .75

$4.99

$

In Stock, Qty 7

0

12

Troy-Bilt 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

13

Troy-Bilt 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$22.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-04217C-0637

Bypass Rod

$23.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$28.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 954-04043A

V-Belt
(Superseded to 954-04043B)

$45.99

$

In Stock, Qty 20+

0
