17BF2ACP011 - Troy-Bilt Mustang XP Zero-Turn Mower (2009) Electrical Parts Diagram

Mustang XP Zero-Turn Mower

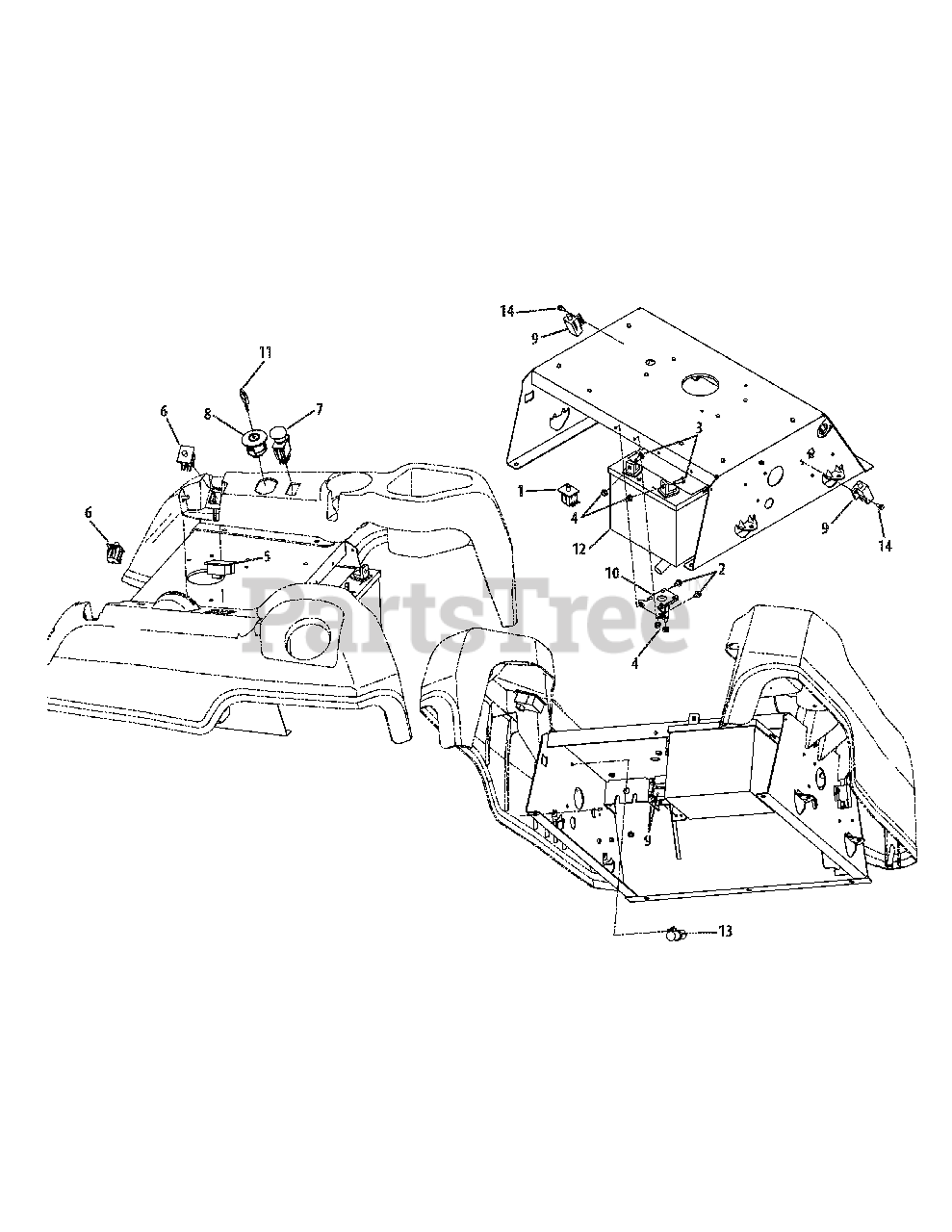

Electrical Parts Diagram

  • Title

1

Troy-Bilt 925-04040

Seat Switch

$36.99

$

In Stock, Qty 6

0

2

Troy-Bilt 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 15

0

3

Troy-Bilt 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 18

0

5

Troy-Bilt 925-04022B

Hour Meter

$146.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 925-04165

Double Pole Neutral Switch

$32.99

$

In Stock, Qty 11

0

7

Troy-Bilt 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 925-04228

Ignition Switch

$39.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-04363

Brake/Reverse Interlock Switch

$15.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 925-1707D

Battery

$

$

Not available

13

Troy-Bilt 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .5

$6.49

$

In Stock, Qty 17

0

Troy-Bilt 925-04847A

Wire Harness Assembly
(Superseded to 925-04847C)

Note: Not shown

$178.99

$

In Stock, only 2 left!

0
