17BF2ACP066 - Troy-Bilt Mustang XP Zero-Turn Mower (2009) Operator's Platform Parts Diagram

Mustang XP Zero-Turn Mower

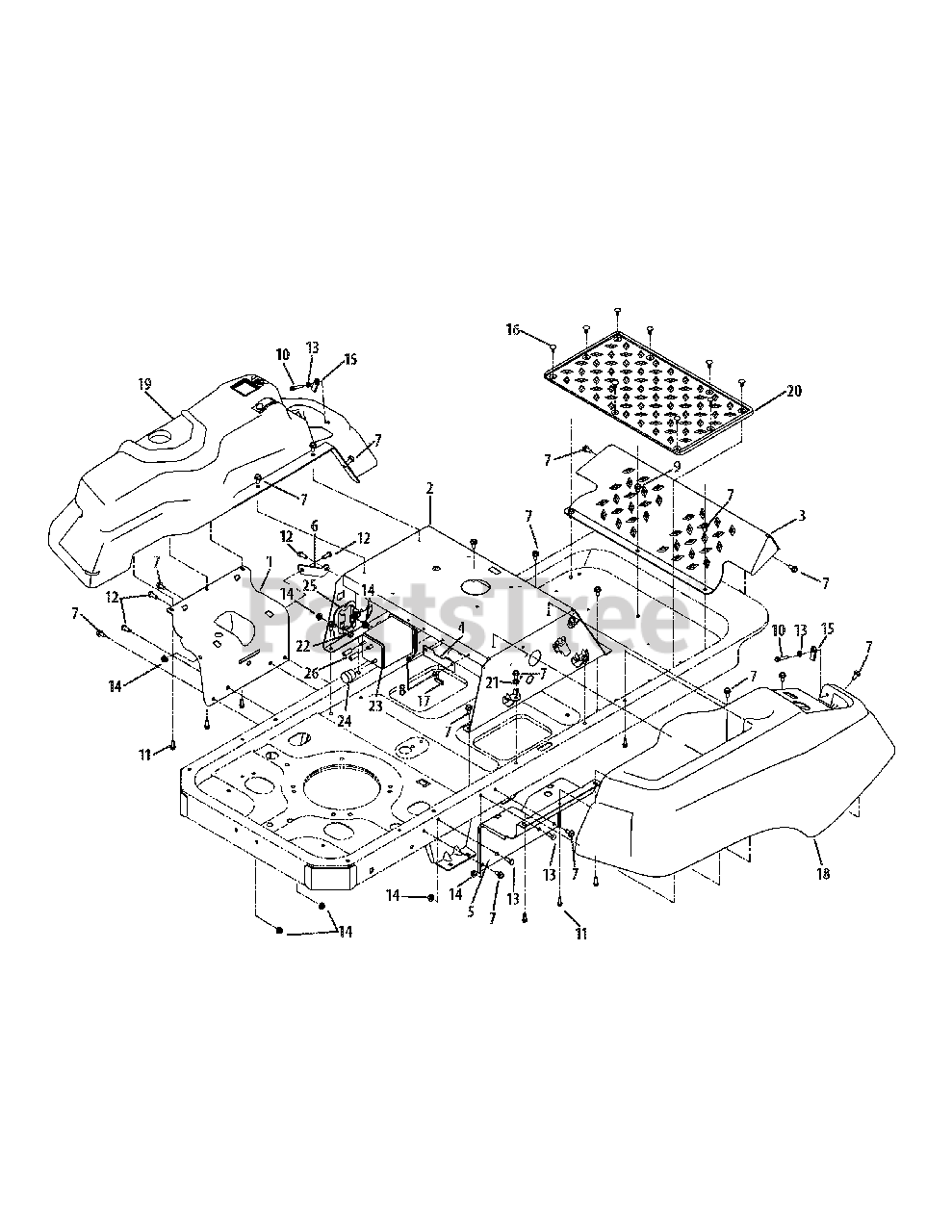

Operator's Platform Parts Diagram

  • Title

1

Troy-Bilt 603-04564-4033

Console Bracket Assembly

$

$

Not available

2

Troy-Bilt 603-04663-0638

Seat Frame Assembly

$

$

Not available

3

Troy-Bilt 703-05373B-4033

Foot Rest Bracket

$

$

Not available

4

Troy-Bilt 703-05894-0637

Battery Hold-Down Bracket

$27.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 703-06451-4033

Console Mount Bracket

$

$

Not available

6

Troy-Bilt 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

7

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0604A

Hex Washer Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$3.99

$

In Stock, Qty 16

0

11

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 912-0298

Jam Nut, 1/4-20

$5.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04092

Speed Nut, 1/4-20

$5.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-0511-18

Trim Strip

$27.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 731-06233

RH Console

$

$

Not available

19

Troy-Bilt 731-06263

LH Console
(Superseded to 731-06263B)

$117.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 735-04082B

Foot Pad
(Superseded to 735-04082C)

$47.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 736-0148

Lock Washer, 3/8

$3.49

$

In Stock, Qty 12

0

22

Troy-Bilt 710-1238

Hex Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

Note: California Models Only

$3.99

$

In Stock, Qty 9

0

23

Troy-Bilt 951-10589

Carbon Canister

Note: California Models Only

$67.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 951-10590

Canister Filter Vent

Note: California Models Only

$15.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-10610

Canister Bracket Adapter

Note: California Models Only

$21.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 751-10750-28

Fuel Hose

Note: California Models Only

$

$

Not available
