18 H - Husqvarna Hedge Trimmer (1996-03) Carburetor Parts Parts Diagram

Hedge Trimmer

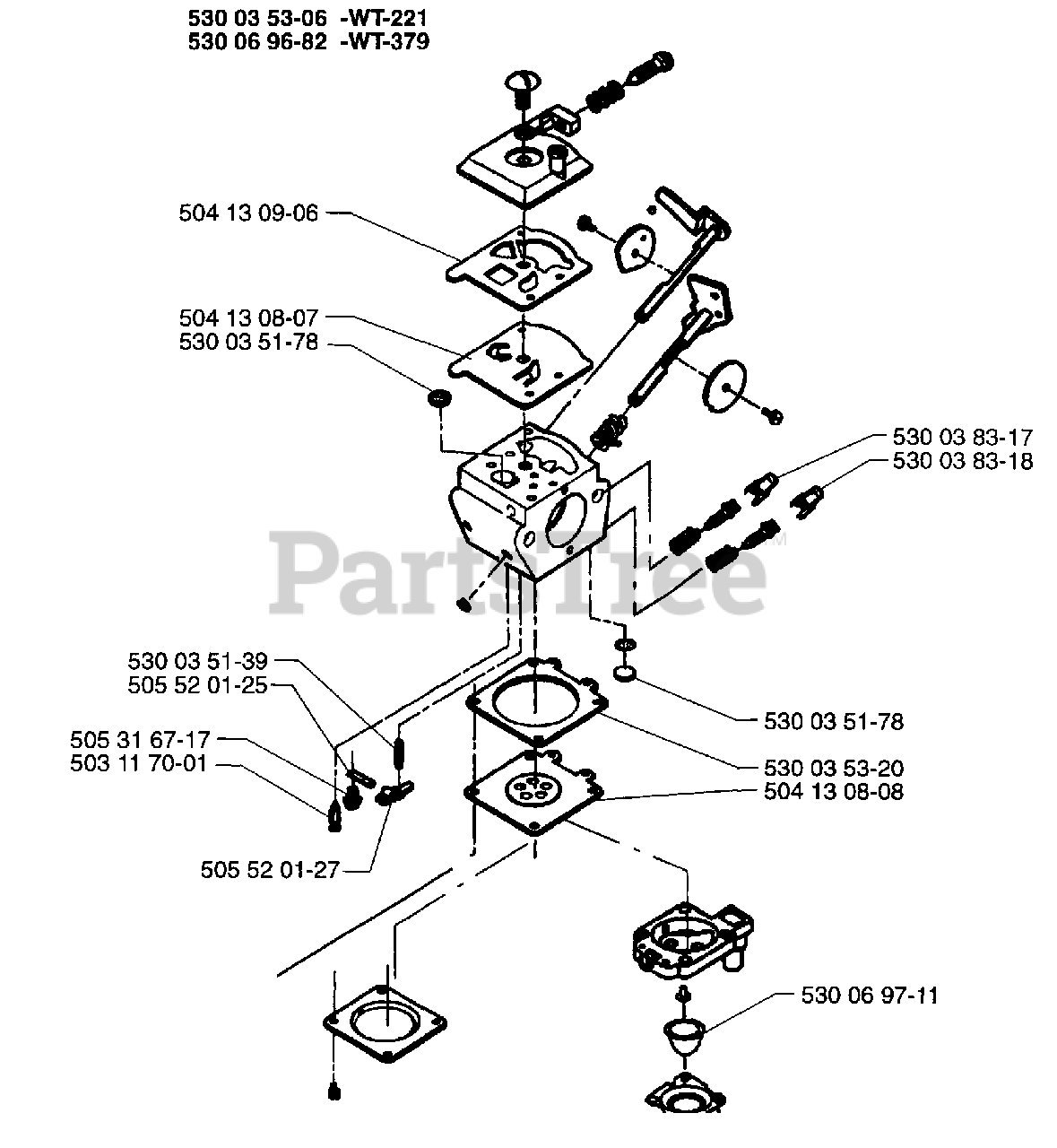

Carburetor Parts Parts Diagram

  • Title

530035306

Husqvarna 530035306

CARBURETOR
(Superseded to 530035305)

$

$

Not available

530069682

Husqvarna 530069682

KIT-CARB ASSY WT-379

$53.99

$

In Stock, only 3 left!

0

504130906

Husqvarna 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

504130807

Husqvarna 504130807

PUMP DIAPHRAGM

$6.49

$

In Stock, Qty 11

0

530035178

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

530035139

Husqvarna 530035139

SPRING, MOTOR LEVER
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

505520125

Husqvarna 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

505316717

Husqvarna 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

503117001

Husqvarna 503117001

VALVE/INLET.

$11.99

$

In Stock, Qty 11

0

505520127

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

530035178

Husqvarna 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

530035320

Husqvarna 530035320

GASKET

$4.99

$

Usually ships in 3-10 days

0

504130808

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

530069711

Husqvarna 530069711

PRIMER BULB NLA

$

$

Not available

530038317

Husqvarna 530038317

Limiter Cap, Low Blue

$3.99

$

Usually ships in 3-10 days

0

530038318

Husqvarna 530038318

Limiter Cap, High Red

$3.99

$

In Stock, Qty 20+

0
