18 H - Husqvarna Hedge Trimmer (SN: 19960900001 & Above) CARBURETOR & AIR FILTER Parts Diagram

Hedge Trimmer

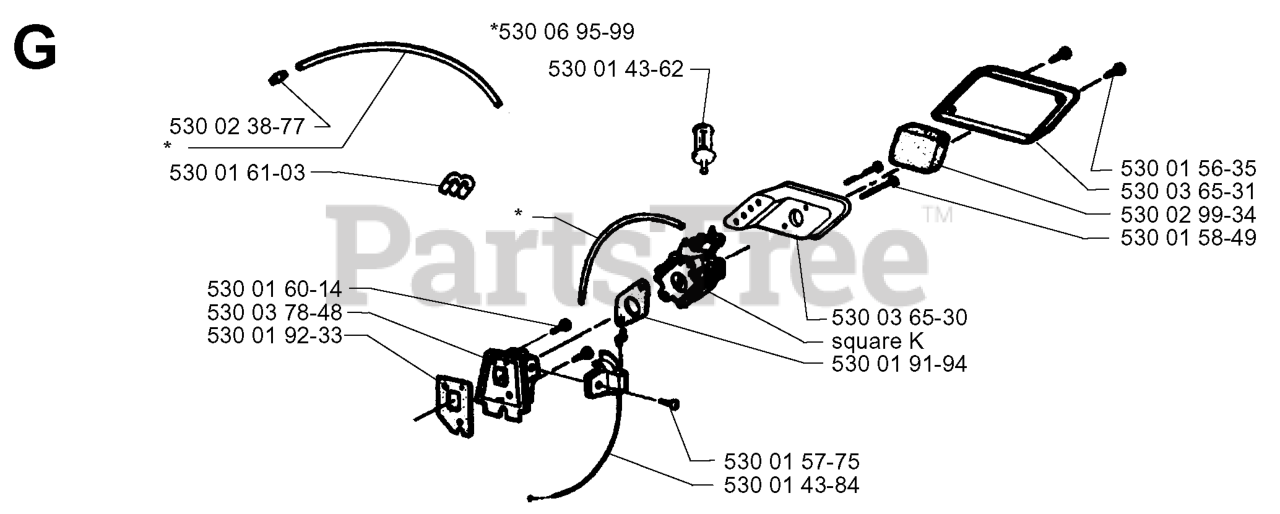

CARBURETOR & AIR FILTER Parts Diagram

  • Title

530 01 43-84

Husqvarna 530014384

THROTTLE WIRE

$

$

Not available

530 06 95-99

Husqvarna 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 20+

0

530 01 61-03

Husqvarna 530016103

RETAINER

$6.49

$

In Stock, Qty 5

0

530 01 58-49

Husqvarna 530015849

SCREW

$6.49

$

In Stock, only 1 left!

0

530 02 99-34

Husqvarna 530029934

AIR FILTER ELEMENT

$

$

Not available

530 01 43-62

Husqvarna 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

530 03 65-31

Husqvarna 530036531

AIR FILTER HOUSING

$1.99

$

Usually ships in 3-10 days

0

530 03 78-48

Husqvarna 530037848

ADAPTOR-CARB(ORANGE)
(Superseded to 530049024)

$6.91

$

Usually ships in 3-10 days

0

530 02 38-77

Husqvarna 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 20+

0

530 03 65-30

Husqvarna 530036530

AIR FILTER HOUSING
(Superseded to 530036192)

$3.99

$

Usually ships in 3-10 days

0

530 01 57-75

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

530 01 92-33

Husqvarna 530019233

GASKET

$3.99

$

In Stock, only 2 left!

0

530 01 60-14

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

530 01 56-35

Husqvarna 530015635

SCREW-10-14X5/8 PHIL.FI

$4.99

$

Usually ships in 3-10 days

0

530 01 91-94

Husqvarna 530019194

GASKET - CARBURETOR

$6.49

$

In Stock, Qty 5

0
