18 H - Husqvarna Hedge Trimmer (SN: 19960900001 & Above) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

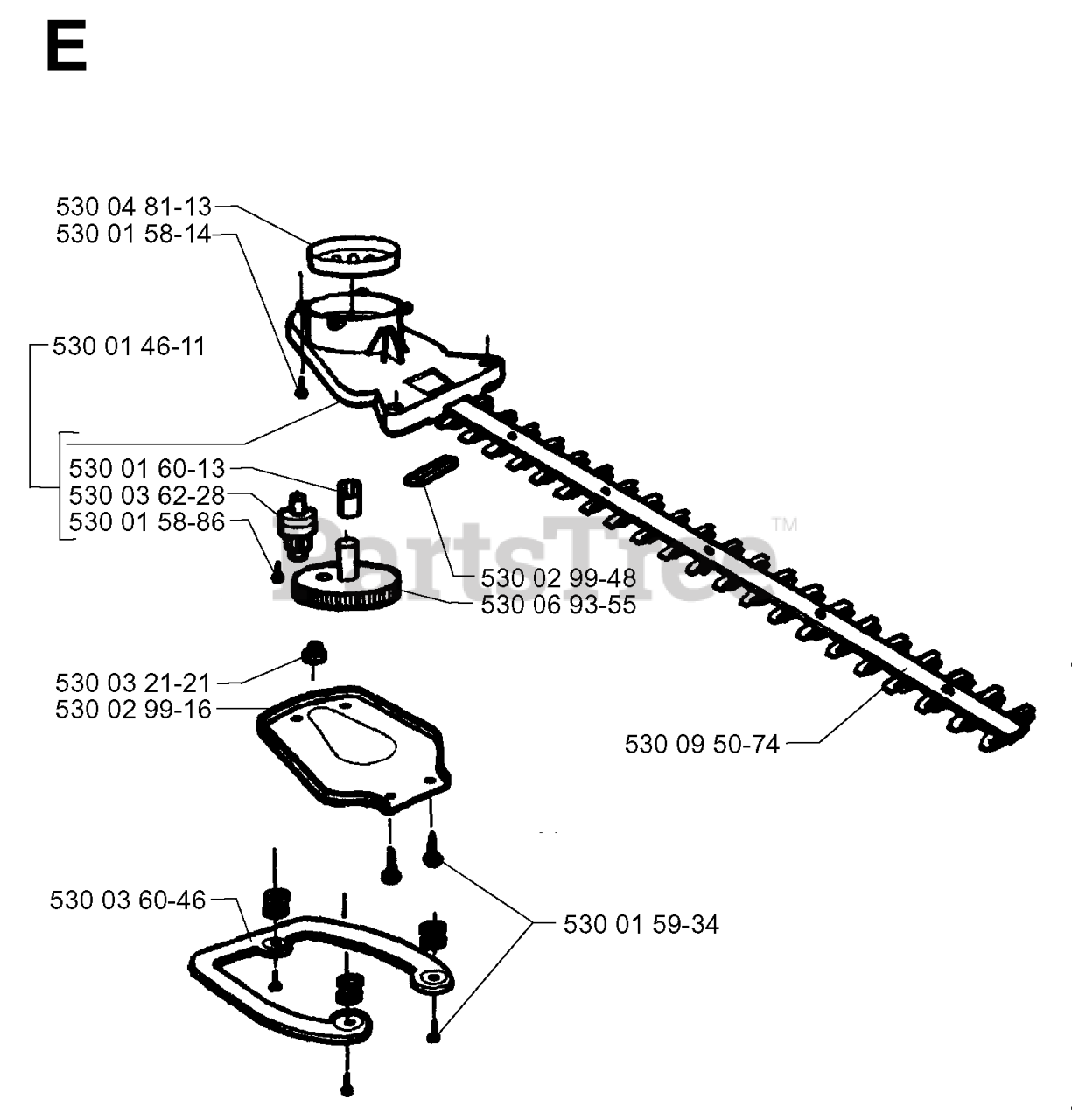

CUTTING EQUIPMENT Parts Diagram

  • Title

530 02 99-16

Husqvarna 530029916

PLATE-GEARBOX COVER

$6.49

$

In Stock, only 2 left!

0

530 04 81-13

Husqvarna 530048113

CLUTCH DRUM
(Superseded to 530056069)

$36.99

$

Usually ships in 3-10 days

0

530 09 50-74

Husqvarna 530095074

CUTTER BLADE
(Superseded to 530403228)

$

$

Not available

530 03 60-46

Husqvarna 530036046

ISOLATOR PLATE

$7.49

$

Usually ships in 3-10 days

0

530 01 58-14

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

530 03 21-21

Husqvarna 530032121

BLADE BUSHING

$

$

Not available

530 01 60-13

Husqvarna 530016013

BEARING

$6.49

$

Usually ships in 3-10 days

0

530 01 46-11

Husqvarna 530014611

GEAR BOX ASSY
(Superseded to 530071931)

$

$

Not available

530 06 93-55

Husqvarna 530069355

GEAR

$

$

Not available

530 01 59-34

Husqvarna 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

530 02 99-48

Husqvarna 530029948

SEAL

$3.99

$

Usually ships in 3-10 days

0

530 03 62-28

Husqvarna 530036228

GEAR

$

$

Not available

530 01 58-86

Husqvarna 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 17

0
