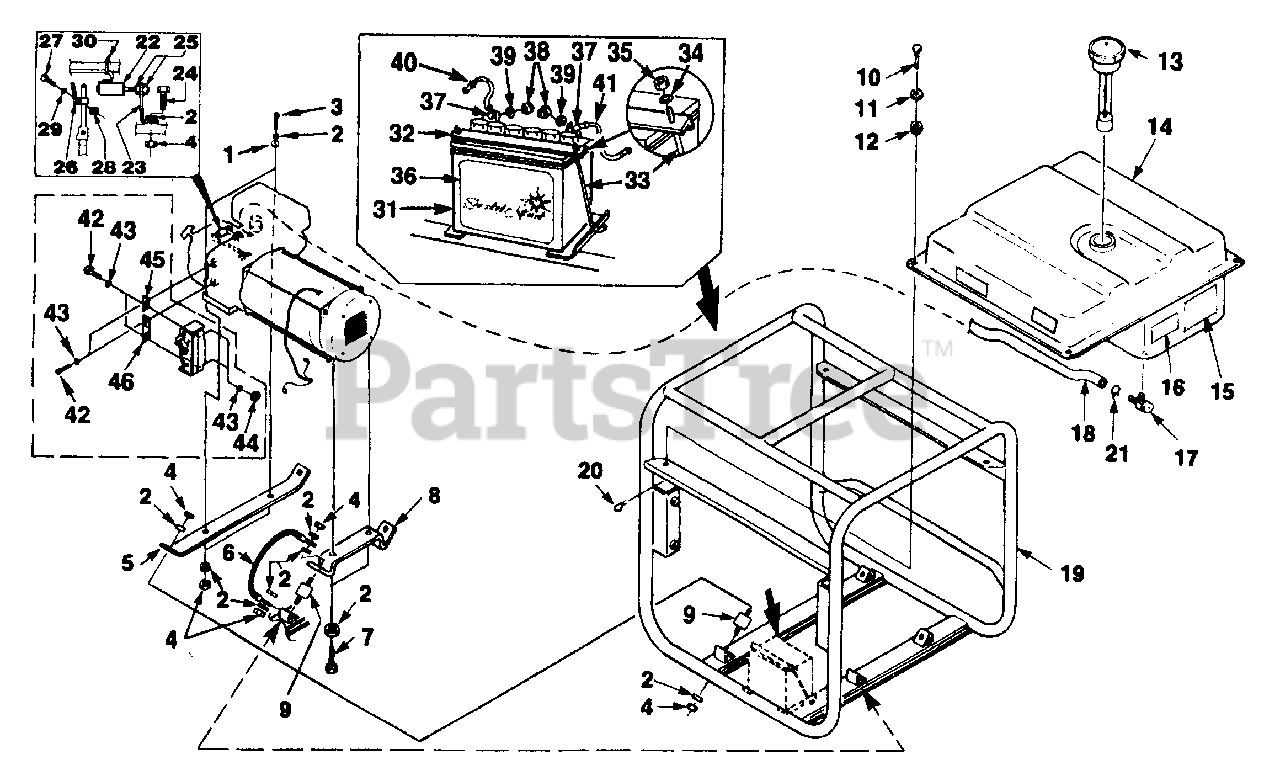

180 HI63 (UT-03763) - Homelite Generator Tank Handles, Idle Control Parts Diagram

Generator

Tank Handles, Idle Control Parts Diagram

  • Title

1

Homelite 84046

WASHER-Flat (5/16)

$

$

Not available

2

Homelite 83081

WASHER-Lock/Int.

$

$

Not available

3

Homelite 80197

SCREW-Cap Hex Hd. (5/16-18 X 2")

$

$

Not available

4

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

5

Homelite 49265

SUPPORT-Engine
(Superseded to UP03535)

$35.99

$

Usually ships in 3-7 days

0

6

Homelite A49399

GROUND-Strap

$

$

Currently unavailable

7

Homelite 82206

SCREW-Thread Form. (5/16-18 X 1")

$5.49

$

Usually ships in 3-7 days

0

8

Homelite 48944

SUPPORT-Generator

$

$

Not available

9

Homelite 49367

ISOLATOR-Vibration
(Superseded to UP03483)

$

$

Not available

10

Homelite 49329

PIN-Clevis

$

$

Not available

11

Homelite 84066

WASHER-Flat

$

$

Currently unavailable

12

Homelite 49351

GROMMET-Isolator

$

$

Not available

13

Homelite 49179

CAP-Fuel

$

$

Not available

14

Homelite 021101

TANK-Fuel
(Superseded to UP07001)

$513.99

$

Usually ships in 3-7 days

0

15

Homelite 49598

DECAL-Caution

$

$

Not available

16

Homelite 49340A

DECAL-Fuel Valve
(Superseded to UP07235)

$

$

Not available

17

Homelite 02192

VALVE-Fuel

$

$

Not available

18

Homelite 0216001

FUEL-Line

$

$

Currently unavailable

19

Homelite A015671

ROLL CAGE
(Superseded to UP05800)

$

$

Not available

20

Homelite 49412

PIN-Cotter Hair

$

$

Not available

21

Homelite 02181

HOSE-Clip

$

$

Not available

22

Homelite A02233

ELECTROMAGNET

$

$

Not available

23

Homelite 02173

BRACKET-Magnet, 11HP

$

$

Not available

24

Homelite 80085

SCREW-Cap Hex Hd. (5/16-18 X 1)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 810652

NUT-Hex
(Superseded to UP03514)

$6.49

$

In Stock, only 1 left!

0

26

Homelite 02172

PADDLE-8HP & 11HP
(Superseded to UP07777)

$

$

Not available

27

Homelite 80577

SCREW-Machine Pan Hd. (8-32 X 3/8")
(Superseded to UP03389)

$

$

Not available

28

Homelite 81227

NUT-Speed

$

$

Not available

29

Homelite 83022

WASHER-Lock/Int.
(Superseded to UP03410)

$

$

Not available

30

Homelite JA994274

TIE-Cable

$

$

Not available

31

BATTERY-12 Volt

Note: Not Used On This Model.

$

$

Not available

32

STRAP-Battery

Note: Not Used On This Model.

$

$

Not available

33

BOLT-Battery

Note: Not Used On This Model.

$

$

Not available

34

WASHER-Lock

Note: Not Used On This Model.

$

$

Not available

35

NUT-Hex (#10)

Note: Not Used On This Model.

$

$

Not available

36

DECAL-Electric Start

Note: Not Used On This Model.

$

$

Not available

37

SCREW-Cap Hex Hd. (1/4-20 X 5/8")

Note: Not Used On This Model.

$

$

Not available

38

NUT-Hex

Note: Not Used On This Model.

$

$

Not available

39

WASHER-Lock

Note: Not Used On This Model.

$

$

Not available

40

CABLE-Battery (Pos.)

Note: Not Used On This Model.

$

$

Not available

41

CABLE-Battery (Neg.)

Note: Not Used On This Model.

$

$

Not available

42

SCREW-Cap Hex Hd. (1/4-20 X 5/8")

Note: Not Used On This Model.

$

$

Not available

43

WASHER-Lock (Int.) (1/4")

Note: Not Used On This Model.

$

$

Not available

44

NUT-Hex (1/4-20)

Note: Not Used On This Model.

$

$

Not available

45

BRACKET-Panel/Engine

Note: Not Used On This Model.

$

$

Not available

46

BRACKET-Panel/Engine

Note: Not Used On This Model.

$

$

Not available
