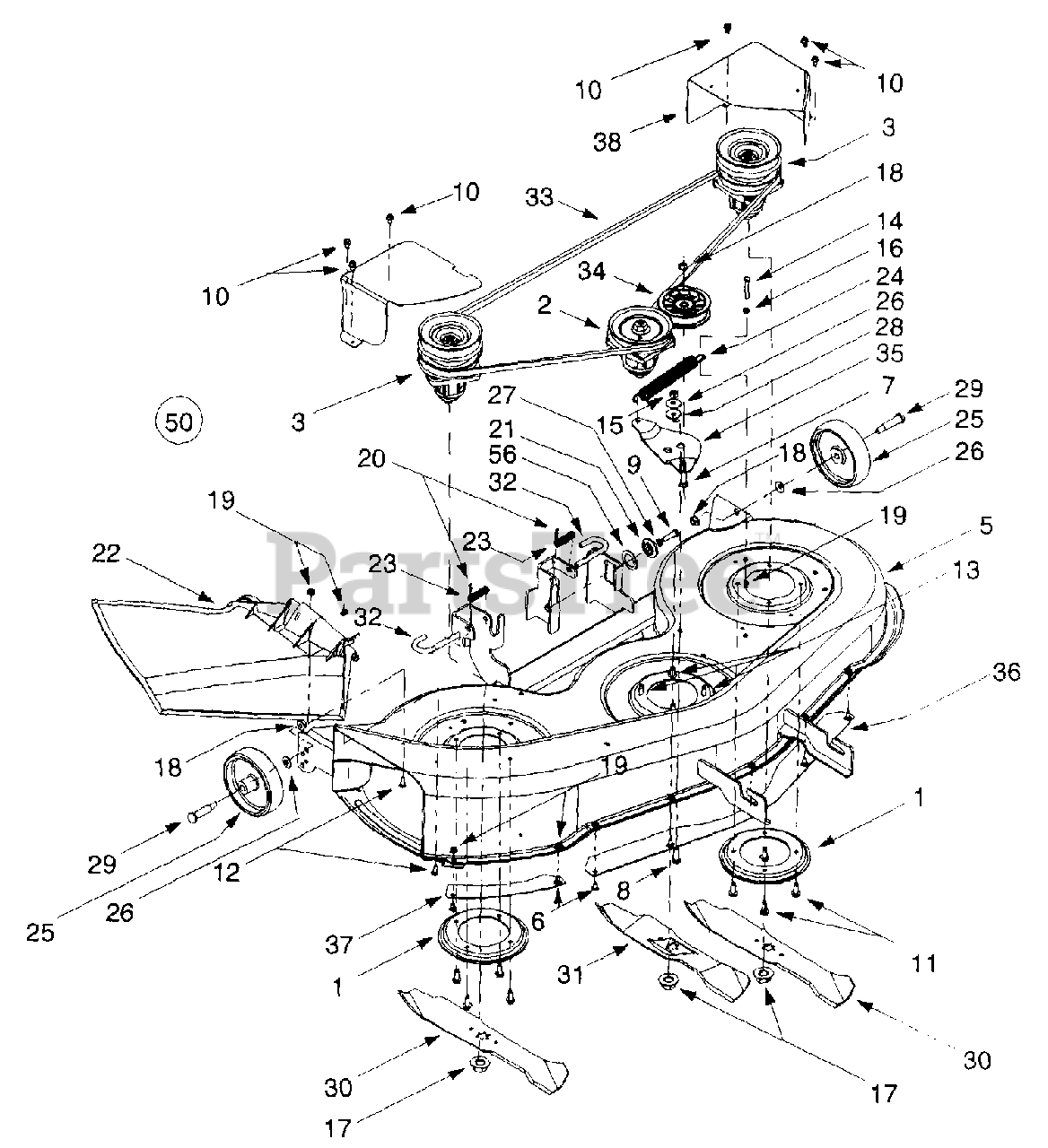

1800 (13AK608H101) - Cub Cadet Garden Tractor 46-inch Cutting Deck Parts Diagram

Garden Tractor

46-inch Cutting Deck Parts Diagram

  • Title

1

Cub Cadet 17982

Reinforcement Spindle Plate
(Superseded to 17982-0637)

Variations

Cub Cadet 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 2 left!

0

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0240

Spindle Assembly, 5 Dia.
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 20+

0

2

Cub Cadet 17983

Bearing Shield
(Superseded to 504-01396)

Note: Not Shown

$

$

Not available

2

Cub Cadet 619-0042A

Spindle Housing
(Superseded to 753-07015)

Note: Not Shown

$53.99

$

In Stock, only 1 left!

0

2

Cub Cadet 712-0417A

Hex Flange Nut 5/8-18

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 738-0927

Spindle Shaft 4.450

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 941-0919

Ball Bearing 20 x 47 x 14:62
(Superseded to 941-0919B)

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

2

Cub Cadet 748-0434

Spacer .750 x 1.150 x .230

Note: Not Shown

$3.99

$

In Stock, Qty 5

0

2

Cub Cadet 750-0952

Spacer .750 x 1.060 x 1.800

Note: Not Shown

$6.99

$

In Stock, Qty 9

0

2

Cub Cadet 756-1187

Deck Pulley 5.0 Dia

Note: Not Shown

$35.99

$

In Stock, only 2 left!

0

3

Cub Cadet 618-0241

Double Pulley Spindle Assembly
(Superseded to 918-0241B)

$183.99

$

In Stock, Qty 7

0

3

Cub Cadet 17983

Bearing Shield
(Superseded to 504-01396)

Note: Not Shown

$

$

Not available

3

Cub Cadet 619-0042A

Spindle Housing
(Superseded to 753-07015)

Note: Not Shown

$53.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-0417A

Hex Flange Nut 5/8-18

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 738-0926

Spindle Shaft 5.350

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 941-0919

Ball Bearing 20 x 47 x 14:62
(Superseded to 941-0919B)

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet 750-0952

Spacer .792 x 1.060 x 1.800

Note: Not Shown

$6.99

$

In Stock, Qty 9

0

3

Cub Cadet 756-0603

Double Deck Pulley

Note: Not Shown

$111.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-0265-0498

46-inch Deck Shell
(Superseded to 683-0265C-0716)

$

$

Not available

6

Cub Cadet 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0650

Self Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3288

Hex Cap Screw, 1/4-20 x 1.62

$

$

Currently unavailable

15

Cub Cadet 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 9

0

17

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.12

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 717-1553

Deck Adjustment Gear
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

22

Cub Cadet 731-1032A

Side Discharge Chute Assembly
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 19

0

23

Cub Cadet 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$13.99

$

In Stock, Qty 20+

0

25

Cub Cadet 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 15

0

29

Cub Cadet 738-0373

Shoulder Spacer, .498 x 1.53
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

30

Cub Cadet 742-0611

Three-in-one Blade, Star Center, 16.28
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

31

Cub Cadet 742-0612

Three-in-one Blade, Star Center, 14.88
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

33

Cub Cadet 754-0349

Deck Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

35

Cub Cadet 783-0139

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Cub Cadet 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783-0141

Center Deck Skirt

Variations

Cub Cadet 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$56.99

$

In Stock, only 1 left!

0

$56.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

Cub Cadet 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$45.99

$

In Stock, only 1 left!

0

$45.99

$

In Stock, only 1 left!

0

38

Cub Cadet 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

Cub Cadet 783-0747-0498

Belt Cover, LH 46" Yellow - OLD CUB YELLOW (0498)

$54.99

$

In Stock, Qty 15

0

Cub Cadet 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, Qty 9

0

Cub Cadet 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$54.99

$

In Stock, Qty 9

0

Cub Cadet 783-0747-0716

Belt Cover, LH 46" Yellow - CUB YELLOW-99 (0716)

$54.99

$

In Stock, Qty 15

0

Cub Cadet 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$54.99

$

In Stock, Qty 9

0

Cub Cadet 783-0747-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$54.99

$

In Stock, Qty 9

0

$51.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 783-0805

RH Belt Cover
(Superseded to 783-0805C)

Variations

Cub Cadet 783-0805-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0805-0498

BELT COVER (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0805-0665

USE 783-0805C-0665 COVER-BELT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0805-0691

USE 783-0805C-0691 COVER-BELT - BLACK JACK (0691)

$

$

Not available

$

$

46

Cub Cadet 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 753-0852-0498

46-inch Deck Assembly Complete
(Superseded to 953-0874-0716)

$

$

Not available

56

Cub Cadet 736-0163

Flat Washer, 1.03 x 1.62 x .030

$4.49

$

In Stock, Qty 20+

0
