1800 (13AK608H101) - Cub Cadet Garden Tractor Engine Blower Assembly Parts Diagram

Garden Tractor

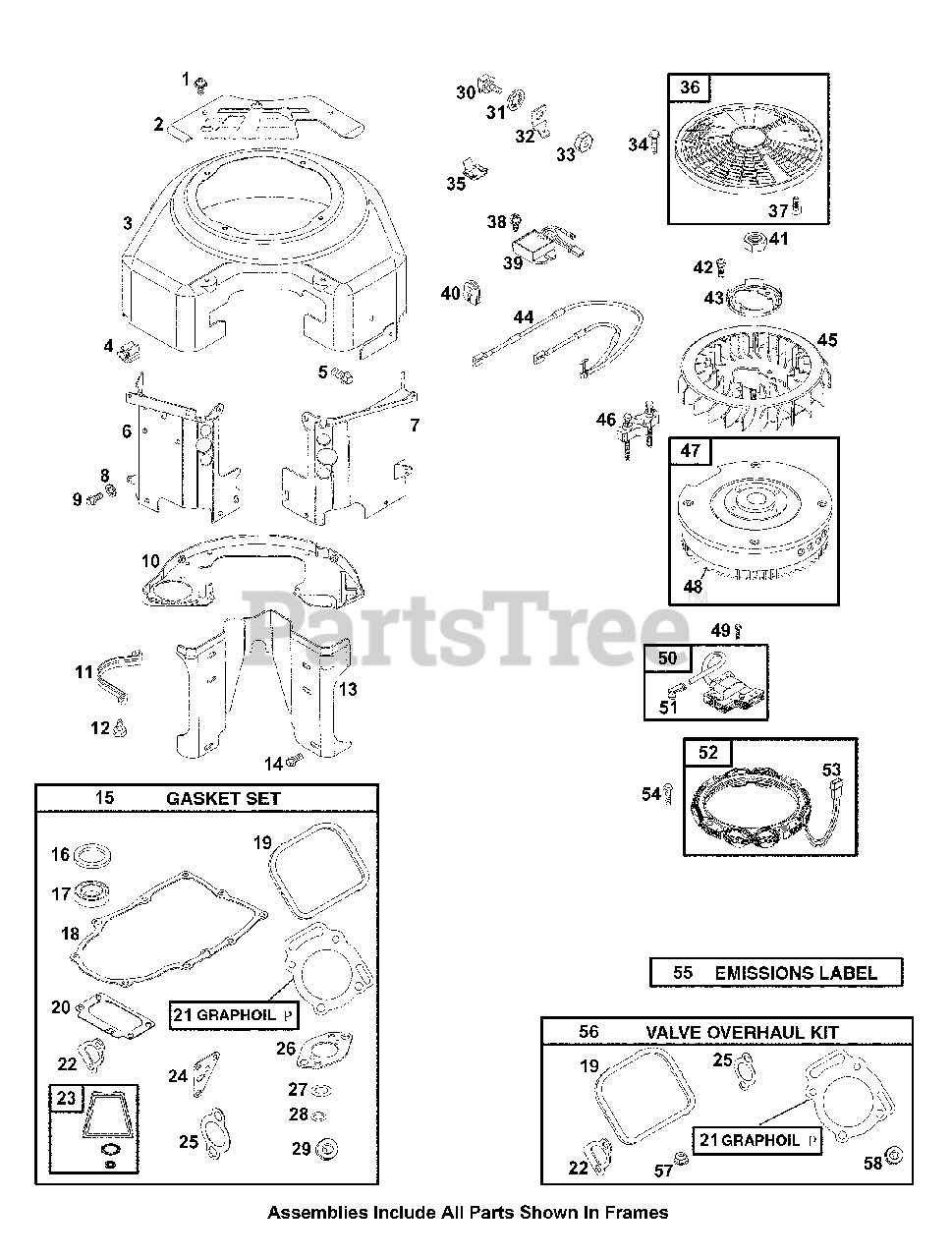

Engine Blower Assembly Parts Diagram

  • Title

1

Cub Cadet BS-690677

Screw (Carburetor Cover)

$3.99

$

In Stock, only 2 left!

0

2

Cub Cadet BS-690757

Carburetor Cover

$18.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-690930

Blower Housing (Red)

$181.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-690586

Wire Clip

$3.99

$

In Stock, only 3 left!

0

5

Cub Cadet BS-692056

Screw (Housing Blower)

$5.99

$

In Stock, Qty 5

0

6

Cub Cadet BS-691575

Air Guide Cover (Cylinder #1)

$

$

Not available

7

Cub Cadet BS-698913

Cylinder Cover (Cylinder #2)

$

$

Currently unavailable

8

Cub Cadet BS-691551

Washer (Air Guide Cover)

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-692539

Screw (Air Guide Cover)

$3.49

$

In Stock, only 2 left!

0

10

Cub Cadet BS-807663

Back Plate

$

$

Not available

11

Cub Cadet BS-805505

Starter Drive Cover

$

$

Not available

12

Cub Cadet BS-690688

Screw (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-690750

Air Guide Cover

$

$

Not available

14

Cub Cadet BS-692056

Screw (Air Guide Cover)

$5.99

$

In Stock, Qty 5

0

15

Cub Cadet BS-808386

Gasket Kit

$

$

Currently unavailable

16

Cub Cadet BS-805101

Oil Seal
(Superseded to BS-805101S)

$5.99

$

In Stock, Qty 8

0

17

Cub Cadet BS-805049

Oil Seal
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 13

0

18

Cub Cadet BS-691684

Crankcase Gasket
(Superseded to BS-845254)

$45.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-806039

Rocker Cover Gasket
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 17

0

20

Cub Cadet BS-692081

Air Cleaner Gasket

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-806086

Cylinder Head Gasket
(Superseded to BS-845884)

$30.99

$

In Stock, only 2 left!

0

22

Cub Cadet BS-692035

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-807688

Breather Gasket
(Superseded to BS-844986)

$8.49

$

In Stock, Qty 8

0

24

Cub Cadet BS-692063

Oil Adapter Gasket

$4.49

$

In Stock, only 3 left!

0

25

Cub Cadet BS-691613

Exhaust Gasket

$5.49

$

In Stock, Qty 16

0

26

Cub Cadet BS-691694

Intake Gasket

$2.99

$

In Stock, Qty 20+

0

27

Cub Cadet BS-692154

O-Ring Seal

$5.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-690681

O-Ring Seal (Oil Pump)

$5.99

$

In Stock, Qty 7

0

29

Cub Cadet BS-806477

Sealing Washer (Carburetor Plug)

$7.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-691972

Insulator

$8.49

$

In Stock, Qty 6

0

31

Cub Cadet BS-92791

Washer (Ground Terminal)
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-93722

Ground Terminal
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

33

Cub Cadet BS-691612

Nut (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

34

Cub Cadet BS-805447

Screw (Rotating Screen)
(Superseded to BS-691647)

$3.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-690451

Debris Clip

$2.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-494439

Rotating Screen

$53.99

$

In Stock, only 1 left!

0

37

Cub Cadet BS-690737

Spacer

$8.49

$

Usually ships in 2-12 days

0

38

Cub Cadet BS-692067

Screw (Regulator)

$3.99

$

In Stock, Qty 11

0

39

Cub Cadet BS-691185

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 19

0

40

Cub Cadet BS-690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-690887

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-691058

Screw (Fan Retainer)

$5.99

$

In Stock, Qty 12

0

43

Cub Cadet BS-690452

Fan Retainer

$10.99

$

Usually ships in 2-12 days

0

44

Cub Cadet BS-493792

Wire Assembly
(Superseded to BS-844547)

$17.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-690911

Flywheel Fan

$

$

Not available

46

Cub Cadet BS-19203

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

47

Cub Cadet BS-690921

Flywheel

$

$

Not available

48

Cub Cadet BS-808162

Ring Gear

$

$

Currently unavailable

49

Cub Cadet BS-692066

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

50

Cub Cadet BS-492341

Magneto Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-493880

Cable Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

52

Cub Cadet BS-691064

Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 7

0

53

Cub Cadet BS-399916

Alternator Wire

$12.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-692066

Screw (Alternator)

$3.49

$

In Stock, Qty 11

0

55

Cub Cadet BS-499371

Emissions Label Kit

$4.49

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-808391

Valve Overhaul Kit
(Superseded to BS-841191)

$89.99

$

In Stock, only 1 left!

0

57

Cub Cadet BS-692055

Nut (Rocker Cover)

$3.99

$

In Stock, Qty 13

0

58

Cub Cadet BS-691766

Sealing Washer

$6.49

$

In Stock, Qty 20+

0
