1800 (13AK608H101) - Cub Cadet Garden Tractor Steering Assembly Parts Diagram

Garden Tractor

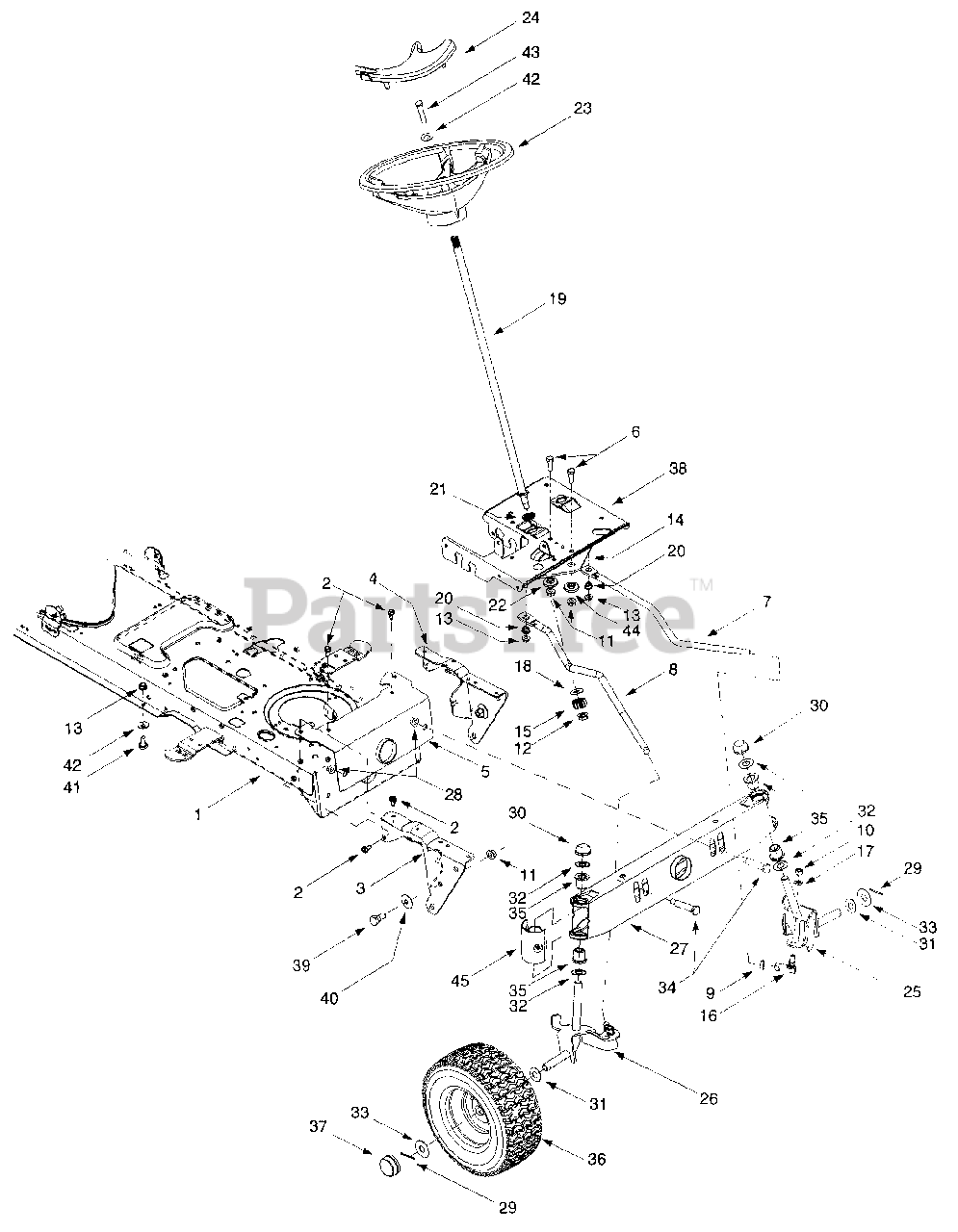

Steering Assembly Parts Diagram

  • Title

1

Cub Cadet 683-0263A

Lower Frame Assembly

Variations

Cub Cadet 683-0263A-0498

LOWER FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0263A-0637

LOWER FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0263A-0665

LOWER FRAME ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0263A-0691

LOWER FRAME ASSEMBLY - BLACK JACK (0691)

$

$

Not available

$

$

2

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

3

Cub Cadet 783-0726

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

$

$

4

Cub Cadet 783-0727

LH Pivot Support Bracket
(Superseded to 783-0727D)

Variations

Cub Cadet 783-0727-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1409

LH Drag Link
(Superseded to 711-1409A)

$

$

Not available

8

Cub Cadet 711-1408

RH Drag Link

$

$

Not available

9

Cub Cadet 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 717-1550A

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$74.99

$

In Stock, Qty 20+

0

15

Cub Cadet 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$25.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 738-1001

Steering Shaft, .625 OD x 24.4
(Superseded to 738-1001A)

$79.99

$

In Stock, only 2 left!

0

20

Cub Cadet 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 748-0416

Shoulder Spacer, .38 ID

$

$

Not available

23

Cub Cadet 631-0027

Steering Wheel
(Superseded to 931-0027A)

$103.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-1904

Steering Wheel Cap w/ Logo

$

$

Not available

25

Cub Cadet 638-0019

LH Axle Assembly, .625 Diameter
(Superseded to 938-0019A)

Note: (Model 1600: Units equipped with a 42-inch deck have axles with a .625 diameter.)

$61.99

$

In Stock, Qty 7

0

Cub Cadet 638-0021

LH Axle Assembly, .625 / .750 Diameter
(Superseded to 938-0021)

Note: (Model 1800: Units equipped with a 46-inch deck have axles with a .625/.750 diameter.)

$109.99

$

In Stock, Qty 5

0

26

Cub Cadet 638-0020

RH Axle Assembly, .625 Diameter
(Superseded to 938-0020A)

Note: (Model 1600: Units equipped with a 42-inch deck have axles with a .625 diameter.)

$

$

Not available

Cub Cadet 638-0022

RH Axle Assembly, .625 / .750 Diameter
(Superseded to 938-0022)

Note: (Model 1800: Units equipped with a 46-inch deck have axles with a .625/.750 diameter.)

$99.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 683-0128A

Pivot Bar
(Superseded to 683-0128B)

Variations

Cub Cadet 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$102.99

$

In Stock, Qty 20+

0

Cub Cadet 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$102.99

$

In Stock, Qty 20+

0

Cub Cadet 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$102.99

$

In Stock, Qty 20+

0

Cub Cadet 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$102.99

$

In Stock, Qty 20+

0

$95.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 15

0

30

Cub Cadet 726-0214

Push Cap, 5/8

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0316

Flat Washer, .78 x 1.59 x .06

$4.99

$

In Stock, Qty 7

0

33

Cub Cadet 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.99

$

In Stock, Qty 9

0

35

Cub Cadet 741-0659

Flange Bearing, .632 ID x .937 OD
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet 741-0660

Flange Bearing, .760 ID x .937 OD
(Superseded to 741-0660A)

$3.49

$

In Stock, Qty 20+

0

36

Cub Cadet 634-0105A

Wheel Assembly Complete, 15 x 6 x 6
(Superseded to 634-0105B)

Variations

Cub Cadet 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$264.99

$

In Stock, only 3 left!

0

Cub Cadet 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$264.99

$

In Stock, only 3 left!

0

Cub Cadet 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$264.99

$

In Stock, only 3 left!

0

Cub Cadet 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$264.99

$

In Stock, only 3 left!

0

Cub Cadet 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$264.99

$

In Stock, only 3 left!

0

Cub Cadet 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-0105A-0941

USE 634-0105B-0941 WHEEL ASM- - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 634-0105A-0945

USE 634-0105B-0945 WHEEL ASM- - Duro Yellow (0945)

$

$

Not available

$214.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0172

Rim Only
(Superseded to 934-0172A)

Variations

Cub Cadet 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0172-0674

Rim Assembly, Gray - YARDMAN YELLOW (0674)

$110.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$110.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 734-1731

Tire Only, Square Shoulder

Variations

Cub Cadet 734-1731-0902

Turf Tire - Dico (0902)

$47.99

$

In Stock, Qty 12

0

Cub Cadet 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$52.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0487A

Plastic Flange
(Superseded to 741-0487C)

Note: (Not Shown)

$7.99

$

In Stock, Qty 20+

0

Cub Cadet 741-0706

Plastic Flange w/ Fitting
(Superseded to 941-0706)

Note: (Not Shown)

$8.99

$

In Stock, Qty 20+

0

37

Cub Cadet 931-0484A

Hub Cap

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 783-0653A

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653A-0498

Steering Support Bracket - OLD CUB YELLOW (0498)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0637

Steering Support Bracket - POWDER BLACK (0637)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0691

Steering Support Bracket - BLACK JACK (0691)

$95.99

$

In Stock, only 3 left!

0

$95.99

$

In Stock, only 3 left!

0

39

Cub Cadet 738-1020

Shoulder Screw, .625 x .50, 7/16-20

$7.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0140

Shoulder Screw, .435 x .178, 5/16 x .56

$5.99

$

In Stock, Qty 10

0

42

Cub Cadet 736-0242

Bell Washer, .34 x .872

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0643

Hex Bolt, 5/16-18 X 1

$7.49

$

In Stock, Qty 20+

0

44

Cub Cadet 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$10.99

$

In Stock, Qty 20+

0

45

Cub Cadet 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

$16.99

$

In Stock, Qty 19

0
