1800 (5118 HR) - Troy-Bilt Tractor (SN: B060100101 - B060199999) BODYWORK & TRIM ASSEMBLY Parts Diagram

Tractor

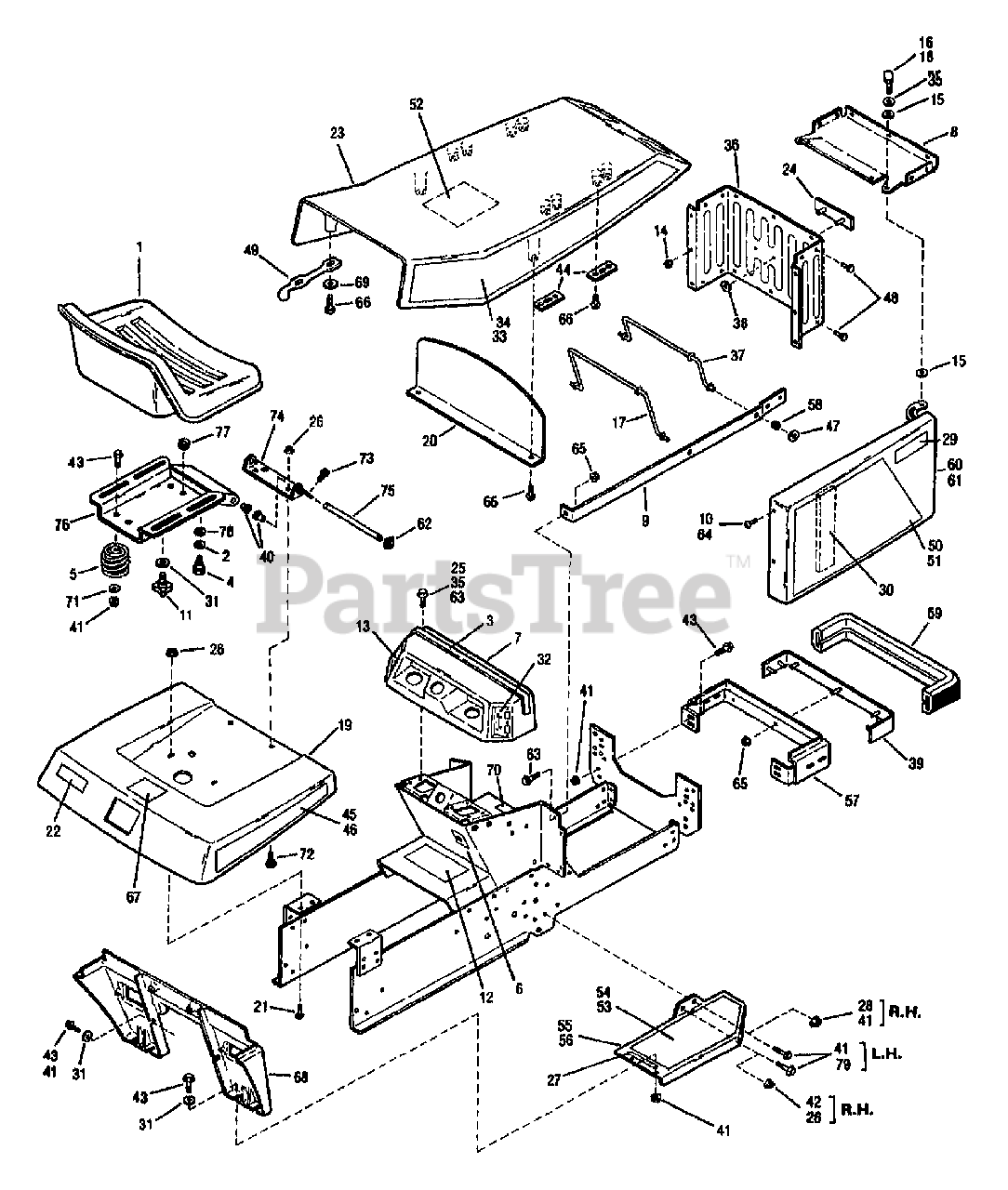

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1757363

SEAT

$

$

Currently unavailable

2

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

3

MTD 1755516

PAD-HOOD

$

$

Not available

4

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$6.49

$

In Stock, Qty 5

0

5

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

6

MTD 1756775

DECAL-IGNITION

$

$

Not available

7

Troy-Bilt 1757362

PANEL-INST

$

$

Currently unavailable

8

MTD 1755628010

CAP-GRILLE

$

$

Not available

9

MTD 1753783010

SUPPORT

$

$

Not available

10

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.49

$

Usually ships in 3-6 days

0

11

MTD 1734269

KNOB

$

$

Not available

12

MTD 1756773

DECAL-INSTRUCTIONS

$

$

Not available

13

MTD 1756777

DECAL-CHOKE

$

$

Not available

14

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

15

MTD 1755714

WASHER

$

$

Not available

16

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

17

MTD 1752901

LINK-HINGE

$

$

Not available

18

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

19

MTD 1749821010

FENDER

$

$

Not available

20

Troy-Bilt 1752903

BAFFLE-HOOD

$

$

Currently unavailable

21

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

22

MTD 1757254

DECAL-LOGO

$

$

Not available

23

Troy-Bilt 1757208

HOOD

$

$

Currently unavailable

24

MTD 1757361

PLATE-LOGO

$

$

Not available

25

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

27

MTD 1755522

CUSHION

$

$

Not available

28

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

29

MTD 1757220

DECAL-HYDRO

$

$

Not available

30

MTD 1753950

BLOCK-SEALING

$

$

Not available

31

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

32

MTD 1755931

DECAL-THROTTLE

$

$

Not available

33

Troy-Bilt 1757209

DECAL-HOOD LH

$

$

Currently unavailable

34

MTD 1757210

DECAL-HOOD RH

$

$

Not available

35

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

36

Troy-Bilt 1755515041

GRILLE

$

$

Currently unavailable

37

MTD 1752900

LINK-HINGE

$

$

Not available

38

MTD 1754126

NUT-PUSH

$

$

Not available

39

MTD 1755517

ASSM-BUMPER STRAP

$

$

Not available

40

Troy-Bilt 1185779

BUSHING

$

$

Currently unavailable

41

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$2.99

$

Usually ships in 3-6 days

0

42

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

43

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

44

MTD 1752902

RETAINER-HINGE LINK

$

$

Not available

45

MTD 1757368

DECAL-RH

$

$

Not available

46

MTD 1757367

DECAL-LH

$

$

Not available

47

Troy-Bilt 1753799

RETAINER
(Superseded to 726-0201)

$6.49

$

In Stock, Qty 20+

0

48

MTD 1739918

RIVET-POP

$

$

Not available

49

MTD 1727127

LATCH-RUBBER

$

$

Not available

50

Troy-Bilt 1757369

DECAL-SIDE COVER LH

$

$

Currently unavailable

51

MTD 1757370

DECAL-SIDE COVER RH

$

$

Not available

52

MTD 1757206

DECAL-SVC INST

$

$

Not available

53

MTD 1757359

PAD

$

$

Not available

54

MTD 1757360

PAD

$

$

Not available

55

MTD 1752250010

FOOTREST-LH

$

$

Not available

56

MTD 1752251010

FOOTREST-RH

$

$

Not available

57

MTD 1752181010

ASSM-GRILLE SUPT

$

$

Not available

58

MTD 1753792

GROMMET

$

$

Not available

59

MTD 1755518

BUMPER-EXTRUSION

$

$

Not available

60

Troy-Bilt 1755496041

ASSM-COVER

$

$

Currently unavailable

61

Troy-Bilt 1755498041

ASSM-COVER

$

$

Currently unavailable

62

Troy-Bilt 1185257

RING-RET."E" .300 ID
(Superseded to 916-0125)

$

$

Not available

63

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

64

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.49

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

66

MTD 1185130

SCR-SEMS MACH

$

$

Not available

67

MTD 1757366

DECAL-FUEL

$

$

Not available

68

MTD 1757358

SUPT-RUNNING BOARD

$

$

Not available

?69

MTD 1737369

WASHER-M10

$

$

Not available

70

MTD 1754143

DECAL-WARNING

$

$

Not available

71

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$5.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

74

MTD 1755456001

BRACKET

$

$

Not available

75

MTD 1755622

ROD

$

$

Not available

76

Troy-Bilt 1755620001

ASSM-SEAT SUPPORT

$

$

Currently unavailable

77

Troy-Bilt 1755487

GROMMET

$

$

Currently unavailable

?78

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

79

MTD 1186345

SCR

$

$

Not available

Troy-Bilt 1757461

PAINT-WHITE 12OZ SPRY CAN

$

$

Currently unavailable

Troy-Bilt 1754423

PAINT-RED SPRAYCAN POWDER

$

$

Currently unavailable
