18005 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) Engine Assembly (model 18010) Parts Diagram

Walk-Behind Mower

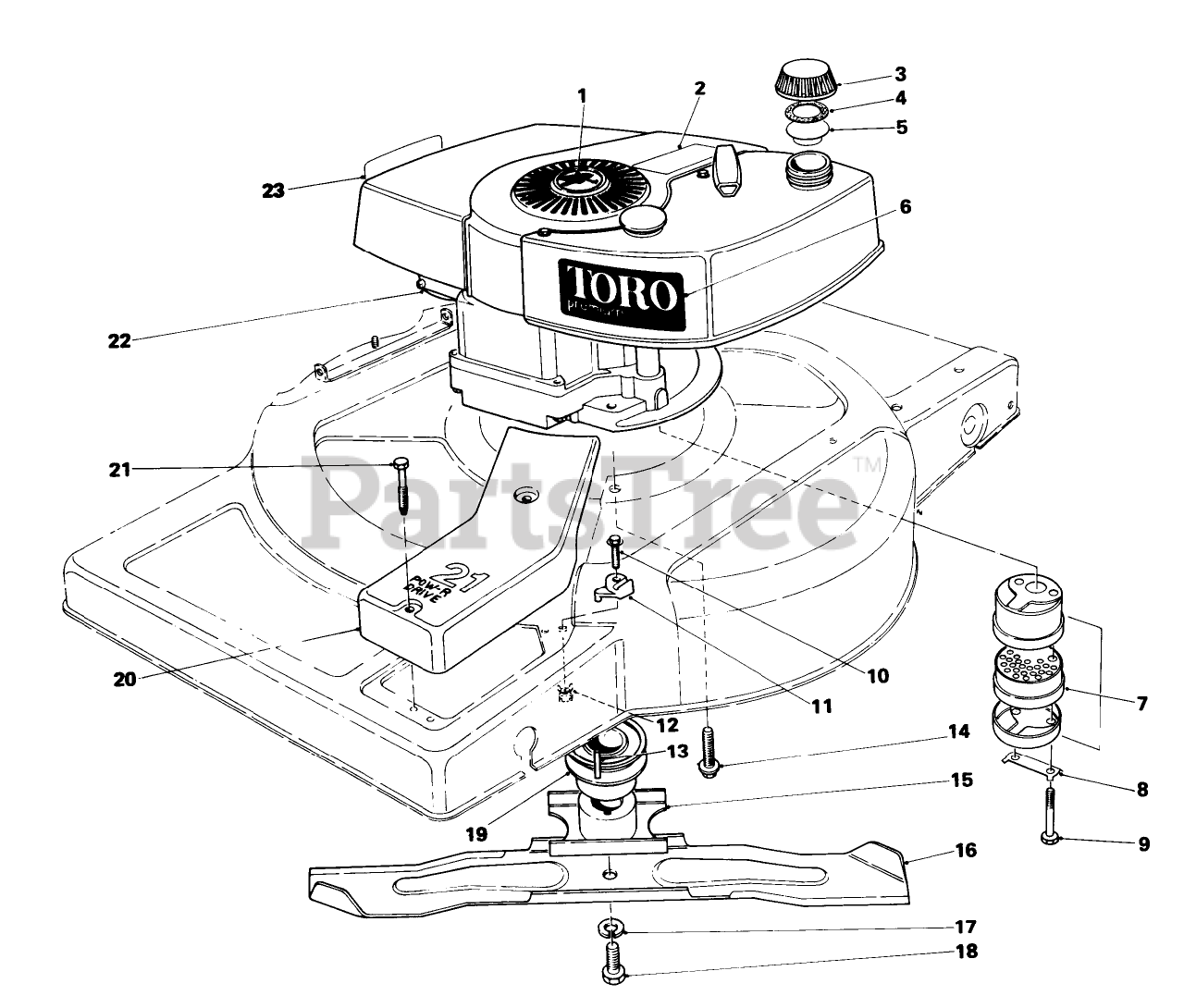

Engine Assembly (model 18010) Parts Diagram

  • Title

1

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

2

Toro 25-1050

DISCONTINUED

$

$

Not available

3

Toro 27-7870

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

4

Toro 2210-144

GASKET

$

$

Not available

5

Toro 2210-143

DISCONTINUED

$

$

Not available

6

Toro 40-2570

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

7

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

Toro 39-5930

DISCONTINUED

Note: Not illustrated

$

$

Not available

8

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

11

Toro 38-6400

DISCONTINUED

$

$

Not available

12

Toro 32115-2

DISCONTINUED

$

$

Not available

13

Toro 27-8590

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

14

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

15

Toro 424240

Blade Retainer

$

$

Currently unavailable

16

Toro 36-8220

See Supercession: 11-6319
(Superseded to 11-6319)

$96.99

$

Usually ships in 3-6 days

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

18

Toro 3-5246

DISCONTINUED

$

$

Not available

19

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$53.99

$

Usually ships in 3-6 days

0

20

Toro 36-0390

DISCONTINUED

$

$

Not available

21

Toro 37-7260

SCREW-HWH

$6.99

$

In Stock, only 2 left!

0

22

Toro 221-692

Engine

$

$

Currently unavailable

23

Toro 37-1580

DISCONTINUED

$

$

Not available
