18015 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HOUSING ASSEMBLY MODEL 18060 Parts Diagram

Walk-Behind Mower

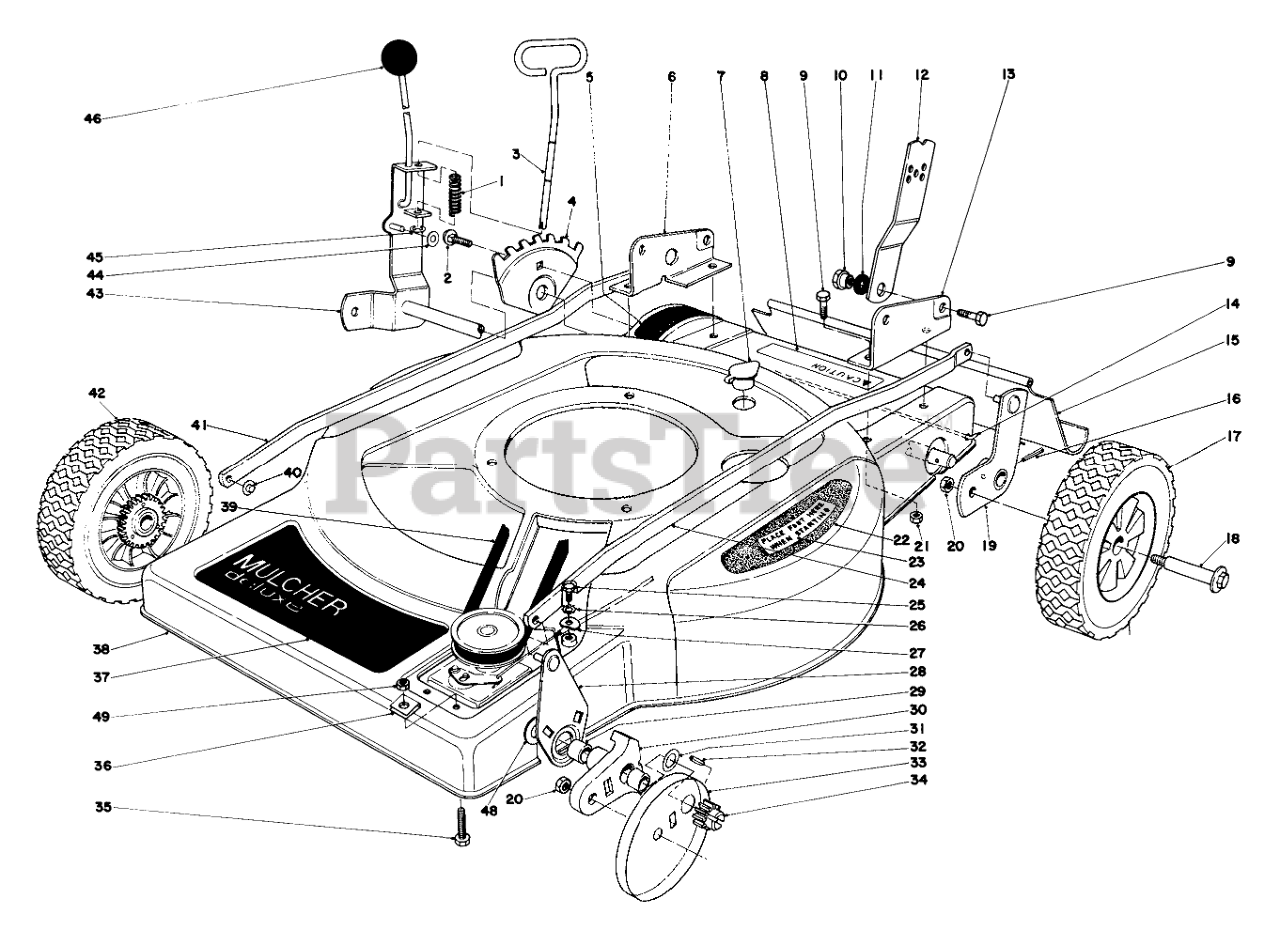

HOUSING ASSEMBLY MODEL 18060 Parts Diagram

  • Title

1

Toro 36-0280

Spring Compression

$

$

Currently unavailable

2

Toro 37-7190

Carriage Bolt

$

$

Not available

3

Toro 36-3930

Rod Stop

$

$

Not available

4

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

5

Toro 36-0030

Decal Height of Cut

$

$

Not available

6

Toro 36-0260

Bracket Handle R.H.

$

$

Currently unavailable

7

Toro 64500

Plug Washout

$

$

Currently unavailable

8

Toro 36-6590

Caution Decal

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

12

Toro 27-7070

Handle Latch
(Superseded to 100-3296-03)

$

$

Not available

13

Toro 36-0240

Bracket Handle L.H.

$

$

Currently unavailable

14

Toro 33-3204

SHIELD ROD

$

$

Not available

15

Toro 33-5560

SHIELD - TRAILING

$82.99

$

Usually ships in 3-6 days

0

16

Toro 37-1460

Pin-Special

$

$

Not available

17

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

18

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

19

Toro 36-0330

Pivot Arm Rear L.H.

$

$

Currently unavailable

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

22

Toro 36-0410

PAD STEP

$

$

Not available

23

Toro 36-2820

Decal Step Pad

$

$

Not available

24

Toro 36-5060

Spanner Link L.H.

$

$

Not available

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

26

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

27

Toro 2412-31

CLAMP-BODEN

$1.99

$

Usually ships in 3-6 days

0

27

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

28

Toro 36-2620

PIVOT ARM LINK WA

$

$

Not available

29

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

30

Toro 36-5620

Pivot Arm (Incl. Ref. #29)
(Superseded to 38-2220)

$110.99

$

Usually ships in 3-6 days

0

31

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

32

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

33

Toro 18-9820

WHEEL COVER

$37.99

$

Usually ships in 3-6 days

0

34

Toro 18-9690

Pinion
(Superseded to 99-2532)

$13.99

$

Usually ships in 3-6 days

0

35

Toro 3-7281

SCREW

$

$

Not available

36

Toro 37-7370

SPEED NUT

$

$

Not available

37

Toro 36-0120

Decal-Front Deck
(Superseded to 44-0490)

$

$

Not available

38

Toro 36-0090

Housing

$

$

Not available

39

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

40

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

41

Toro 36-0370

Spanner Link R.H.

$

$

Not available

42

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

43

Toro 36-3940

Pivot Arm Bracket

$

$

Not available

44

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 14

0

46

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

48

Toro 11-4930

WASHER

$

$

Not available

49

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0
