18015 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE TECUMSEH MODEL TNT-100-10049C Parts Diagram

Walk-Behind Mower

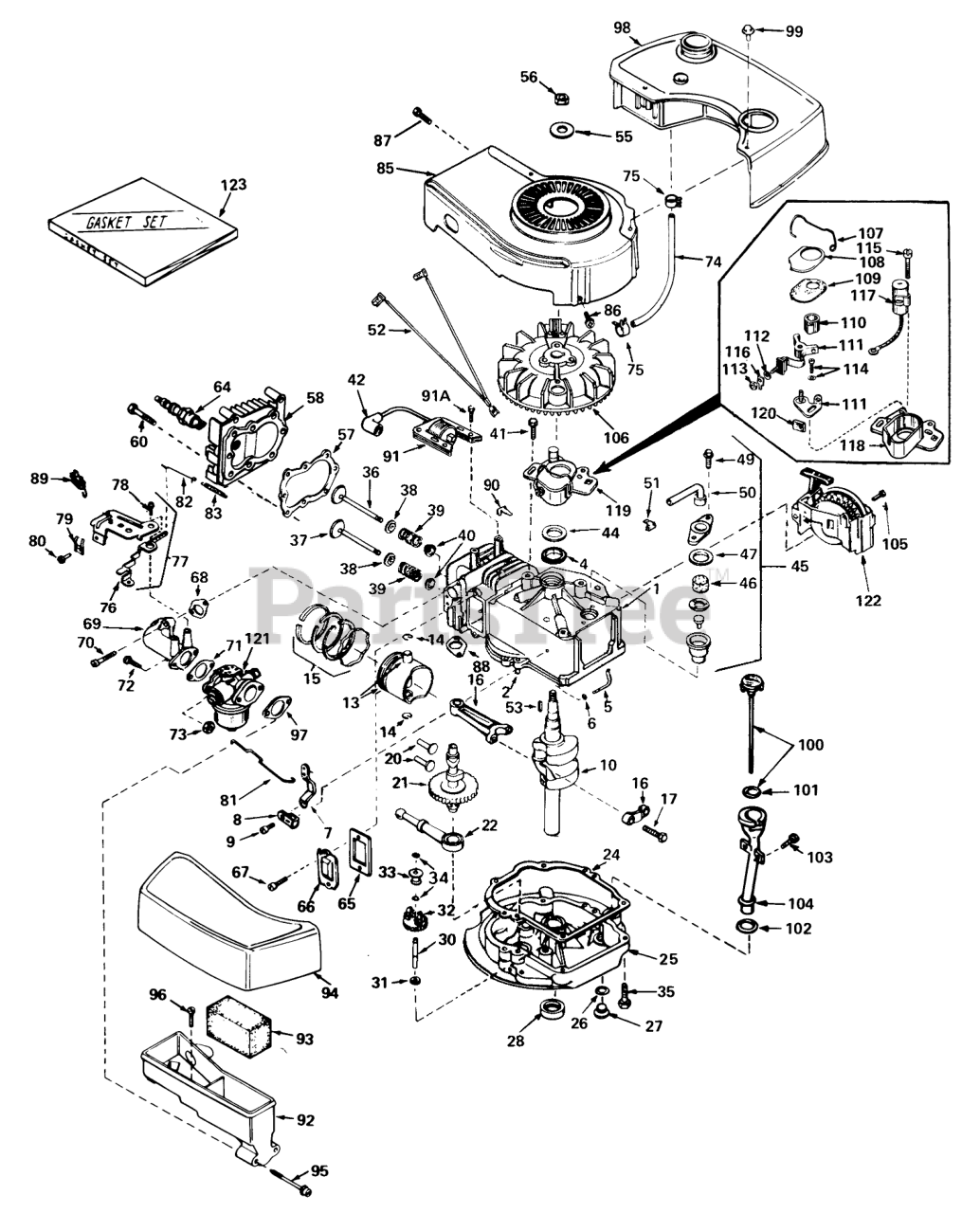

ENGINE TECUMSEH MODEL TNT-100-10049C Parts Diagram

  • Title
1

Tecumseh Part# 34429

Cylinder Assy. (Incl. #2, 4 & 105)
(Superseded to 34429A)
Usually ships in 8 to 14 days

$

$101.19

0

2
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$6.72

0

5

Tecumseh Part# 30589

Rod, Governor (Incl. #6)
Usually ships in 1 day

$

$5.44

0

6

Tecumseh Part# 28277

Washer-Flat
Usually ships in 1 day

$

$1.76

0

7

Tecumseh Part# 32651

Governor Lever
Usually ships in 8 to 14 days

$

$1.76

0

8

Tecumseh Part# 31335

Clamp-Lever, Governor
Usually ships in 1 day

$

$1.76

0

9

Tecumseh Part# 650548

Screw
(Superseded to 651018)
Usually ships in 1 day

$

$1.66

0

10

Tecumseh Part# 34430

Crankshaft
(Superseded to 37449)
Usually ships in 8 to 14 days

$

$67.64

0

13

Tecumseh Part# 32603A

Piston, Pin & Ring Assy. (Incl. #14 & 15)(Std.)
(Superseded to 35544A)
Usually ships in 8 to 14 days

$

$60.34

0

13

Tecumseh Part# 32604A

Piston, Pin & Ring Assy. (Incl. #14 & 15)(.010 oversize)
(Superseded to 35545A)
Usually ships in 8 to 14 days

$

$76.46

0

13

Tecumseh Part# 32605A

Piston, Pin & Ring Assy. (Incl. #14 & 15)(.020 oversize)
(Superseded to 35546)
Usually ships in 8 to 14 days

$

$73.44

0

14

Tecumseh Part# 20381

Ring-Retaining, Piston Pin
Usually ships in 1 day

$

$1.76

0

15

Tecumseh Part# 32606

Ring Set Piston (Std.)
(Superseded to 34854)
Usually ships in 8 to 14 days

$

$23.30

0

15

Tecumseh Part# 32607

Ring Set Piston (.010 Oversize)
(Superseded to 34855)
Usually ships in 8 to 14 days

$

$35.98

0

15

Tecumseh Part# 32608

Ring Set Piston (.020 Oversize)
(Superseded to 34856)
Usually ships in 8 to 14 days

$

$40.86

0

16

Tecumseh Part# 30963B

Rod Assy., Connecting (Incl. #17)
Usually ships in 1 day

$

$29.26

0

17

Tecumseh Part# 32610A

Bolt-Rod, Connecting
Usually ships in 1 day

$

$1.76

0

20

Tecumseh Part# 27241

Lifter-Valve
Usually ships in 1 day

$

$5.44

0

21

Tecumseh Part# 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)
Usually ships in 8 to 14 days

$

$72.26

0

22

Tecumseh Part# 29914

Oil Pump ASM
Usually ships in 1 day

$

$9.16

0

24

Tecumseh Part# 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$2.81

0

25

Tecumseh Part# 30594B

Flange Assy., Mounting (Incl. #26 thru 30)
(Superseded to 37644)
Usually ships in 8 to 14 days

$

$81.86

0

26

Tecumseh Part# 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$1.76

0

27

Tecumseh Part# 27244

Plug Oil Drain
(Superseded to 36083)
Usually ships in 1 day

$

$0.86

0

28
Usually ships in 1 day

$

$5.80

0

30

Tecumseh Part# 30574

Shaft-Governor
(Superseded to 30574A)
Usually ships in 1 day

$

$7.00

0

31

Tecumseh Part# 30590A

Washer-Flat
Usually ships in 1 day

$

$4.04

0

32

Tecumseh Part# 30591

Gear Assy., Governor (Incl. #31)
Usually ships in 1 day

$

$13.90

0

33

Tecumseh Part# 30588A

Spool-Governor
Usually ships in 1 day

$

$1.76

0

34

Tecumseh Part# 29193

Ring-Retaining
Usually ships in 1 day

$

$1.76

0

35

Tecumseh Part# 650488

Screw (1/4-20 x 1-1/4)
Usually ships in 1 day

$

$1.76

0

36

Tecumseh Part# 29314A

Valve, Intake (Std.)(Incl. #38, 39 & 40)
(Superseded to 29314C)
Usually ships in 1 day

$

$5.68

0

36

Tecumseh Part# 29315B

Valve, Intake (1/32" oversize)(Incl. #38, 39 & 40)
(Superseded to 29315C)
Usually ships in 8 to 14 days

$

$42.92

0

37

Tecumseh Part# 29313B

Valve, Exhaust (Std.)(Incl. #38, 39 & 40)
(Superseded to 29313C)
Usually ships same day

Not available

$

$

37

Tecumseh Part# 29315B

Valve, Exhaust (1/32" oversize)(Incl. #38, 39 & 40)
(Superseded to 29315C)
Usually ships in 8 to 14 days

$

$42.92

0

38

Tecumseh Part# 31671

Cap-Upper Valve Spring
Usually ships in 8 to 14 days

$

$1.40

0

39

Tecumseh Part# 31672

Spring-Valve
Usually ships in 1 day

$

$1.76

0

40

Tecumseh Part# 31673

Cap-Valve, Spring
Usually ships in 1 day

$

$1.72

0

Usually ships same day

Currently unavailable

$

$

42

Tecumseh Part# 610118

Cover-Spark Plug
Usually ships in 1 day

$

$3.74

0

44

Tecumseh Part# 33876

Gasket Stator
Usually ships in 1 day

$

$5.02

0

45

Tecumseh Part# 34214

Breather Assy. (Incl. #46, 47, 49, 50 & 51)
(Superseded to 34214B)
Usually ships in 1 day

$

$15.56

0

46

Tecumseh Part# 33734

Element-Breather
Usually ships in 1 day

$

$1.70

0

47

Tecumseh Part# 33735

Gasket-Breather

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$1.70

0

49

Tecumseh Part# 650768

Screw, Hex Hd. w/Conical
(Superseded to 30200)
Usually ships in 1 day

$

$1.24

0

50

Tecumseh Part# 33886

Tube, Breaker
Usually ships in 1 day

$

$7.02

0

51

Tecumseh Part# 33887

Clip, Breather
Usually ships in 1 day

$

$3.78

0

52

Tecumseh Part# 34432

Wire Ground
Usually ships in 8 to 14 days

$

$3.46

0

53

Tecumseh Part# 610995

682488 LB GRASS HI-
Usually ships in 1 day

$

$1.38

0

55

Tecumseh Part# 650815

Washer-Belleville
Usually ships in 1 day

$

$1.76

0

56

Tecumseh Part# 650816

Nut-Flywheel
Usually ships in 1 day

$

$1.76

0

57

Tecumseh Part# 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$11.04

0

58

Tecumseh Part# 34342

Head-Cylinder
(Superseded to 36476)
Usually ships in 8 to 14 days

$

$32.28

0

60

Tecumseh Part# 6021A

Screw (5/16-18x1-1/2)
Usually ships in 1 day

$

$1.76

0

64

Tecumseh Part# 33636

Plug, Spark (J17LM or equiv.)
Usually ships in 1 day

$

$5.17

0

64

Tecumseh Part# 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)
Usually ships in 1 day

$

$5.17

0

65

Tecumseh Part# 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$2.46

0

66

Tecumseh Part# 32755

Cover-Valve
Usually ships in 8 to 14 days

$

$5.30

0

Usually ships in 1 day

$

$5.04

0

68

Tecumseh Part# 32649

Gasket, Intake
(Superseded to 32649A)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$3.08

0

69

Tecumseh Part# 33004

Pipe, Intake
(Superseded to 33004A)
Usually ships in 8 to 14 days

$

$23.64

0

70

Tecumseh Part# 650451

Screw (1/4-20 x 1)
Usually ships in 1 day

$

$1.76

0

71

Tecumseh Part# 31688

Gasket-Carburetor
(Superseded to 31688A)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$2.13

0

72

Tecumseh Part# 6201

Screw (1/4-28 x 7/8)
Usually ships in 1 day

$

$1.76

0

73

Tecumseh Part# 29752

Nut and Lock Washer (1/4-28)
Usually ships in 1 day

$

$1.76

0

74
Usually ships in 1 day

$

$7.30

0

75

Tecumseh Part# 26460

Clamp-Line, Fuel
Usually ships in 1 day

$

$1.49

0

76

Tecumseh Part# 34310

Lever Control
Usually ships in 8 to 14 days

$

$5.26

0

77

Tecumseh Part# 33889A

Control Assy . Speed (Incl. #77, 78 & 89)
Usually ships in 8 to 14 days

$

$13.66

0

78

Tecumseh Part# 650804

Screw, Hex Washer Hd Shoulder Self-Tap
Usually ships in 8 to 14 days

$

$3.44

0

Usually ships in 1 day

$

$1.76

0

80

Tecumseh Part# 28942

Screw (10-32 x 3/8)
Usually ships in 1 day

$

$1.24

0

81

Tecumseh Part# 34336

Link-Throttle
(Superseded to 34336A)
Usually ships in 1 day

$

$1.72

0

82

Tecumseh Part# 33151

Link Governor Spring
Usually ships in 1 day

$

$1.76

0

83

Tecumseh Part# 33890

Spring Governor
Usually ships in 1 day

$

$1.70

0

85

Tecumseh Part# 33891

Housing, Blower
(Superseded to 33891B)
Usually ships in 8 to 14 days

$

$52.48

0

86

Tecumseh Part# 650497

Screw
(Superseded to 650911)
Usually ships in 8 to 14 days

$

$1.68

0

87

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

88

Tecumseh Part# 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$1.40

0

89
Usually ships in 8 to 14 days

$

$3.64

0

90
Usually ships in 8 to 14 days

$

$1.76

0

91

Tecumseh Part# 34431

Lamination
(Superseded to 730207)
Usually ships in 1 day

$

$65.98

0

91A

Tecumseh Part# 650814

Screw
(Superseded to 651007)
Usually ships in 1 day

$

$1.64

0

92

Tecumseh Part# 33895

Body Air Cleaner
Usually ships in 8 to 14 days

$

$10.78

0

93
Usually ships in 1 day

$

$4.46

0

94

Tecumseh Part# 33897

Cove, Air Cleaner
Usually ships same day

Currently unavailable

$

$

95

Tecumseh Part# 650762

Screw Fil Hd.
Usually ships in 8 to 14 days

$

$5.40

0

96

Tecumseh Part# 650784

Screw, Hex Hd.
Usually ships in 1 day

$

$1.68

0

97

Tecumseh Part# 33051

Gasket-Air Cleaner

Note: Indicates items included in Gasket Set part no. 33906

Usually ships in 1 day

$

$1.38

0

98

Tecumseh Part# 33904A

Tank, Fuel
(Superseded to 33904B)
Usually ships same day

Currently unavailable

$

$

99

Tecumseh Part# 28763

Screw (10-32 x 35/64)
Usually ships in 1 day

$

$1.62

0

100

Tecumseh Part# 33894A

Dipstick, OiI (Incl. #101)(Twist Lock)
(Superseded to 36879)
Usually ships in 8 to 14 days

$

$9.74

0

Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$2.10

0

103

Tecumseh Part# 650562

Screw (10-32 x 1/2)
Usually ships in 1 day

$

$1.68

0

104

Tecumseh Part# 34380

Tube-Oil Fill
Usually ships in 8 to 14 days

$

$9.16

0

105

Tecumseh Part# 650802

Screw (1/2-20x5/8)
Usually ships in 1 day

$

$1.76

0

106

Tecumseh Part# 611007

FIywheel
(Superseded to 611046A)
Usually ships in 8 to 14 days

$

$94.44

0

107

Tecumseh Part# 30551

Spring Breaker Box
Usually ships in 8 to 14 days

$

$1.52

0

108
Usually ships in 1 day

$

$3.64

0

109

Tecumseh Part# 610955

Gasket-Dust Cover
Usually ships same day

Currently unavailable

$

$

110

Tecumseh Part# 30992

Cam-Breaker
Usually ships in 8 to 14 days

$

$5.60

0

111

Tecumseh Part# 30547A

Breaker Assy.
Usually ships in 1 day

$

$15.69

0

Usually ships in 8 to 14 days

$

$1.52

0

Usually ships same day

Currently unavailable

$

$

114

Tecumseh Part# 29181

Breaker Screw
Usually ships in 1 day

$

$1.66

0

115

Tecumseh Part# 610593

Condenser Screw
Usually ships in 1 day

$

$1.68

0

116

Tecumseh Part# 33356

Terminal, Ground
Usually ships in 1 day

$

$1.76

0

117
Usually ships in 1 day

$

$11.76

0

118

Tecumseh Part# 611008

Stator Plate
(Superseded to 611006)
Usually ships same day

Currently unavailable

$

$

119

Tecumseh Part# 611006

Stator Assy. (Incl. #107, 111 thru 118 & 120)
Usually ships same day

Currently unavailable

$

$

120

Tecumseh Part# 30549

Felt,Cam Wiper
Usually ships in 1 day

$

$1.70

0

121

Tecumseh Part# 632050

Carburetor (Incl. #71)
(Superseded to 632795A)
Usually ships in 1 day

$

$109.20

0

122

Tecumseh Part# 590531

Starter-Sidemount
(Superseded to 590532)
Usually ships in 1 day

$

$87.70

0

123

Tecumseh Part# 33906

53024/VAR.16HP O/P
(Superseded to 33906D)
Usually ships in 8 to 14 days

$

$23.40

0
