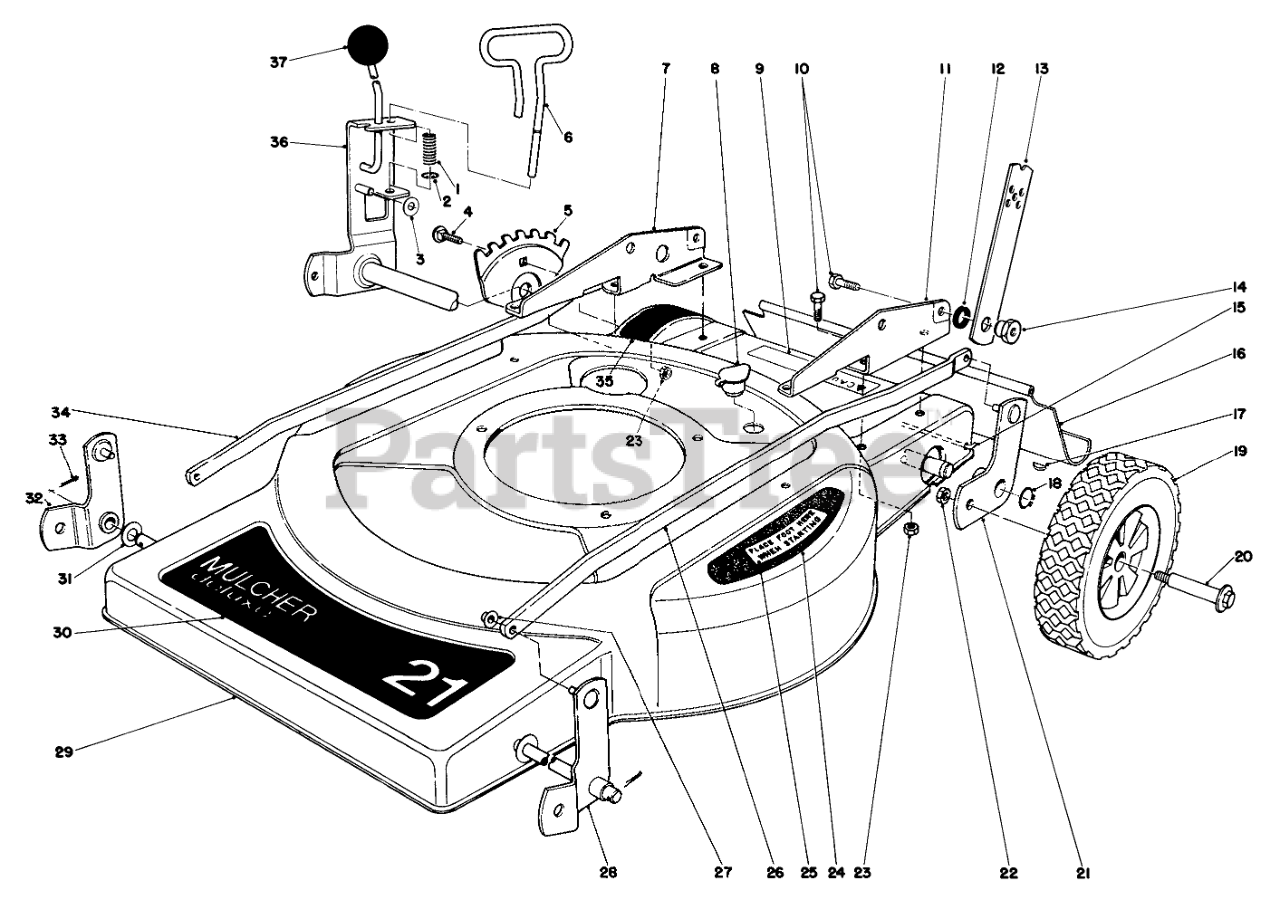

18015 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 38-2340

SPRING-COMPRESSION
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$0.95

0

3

Toro Part# 3256-22

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

4

Toro Part# 37-7190

Carriage Bolt
Usually ships same day

Not available

$

$

5

Toro Part# 36-0010

HOC ADJUSTMENT PLT
Usually ships same day

Not available

$

$

6
Usually ships same day

Not available

$

$

7

Toro Part# 38-2260

Bracket Handle R.H.
Usually ships same day

Not available

$

$

8

Toro Part# 6-4500

WASHOUT PLUG
Usually ships in 5 to 8 days

$

$8.13

0

9

Toro Part# 36-6590

Caution Decal
Usually ships same day

Not available

$

$

10

Toro Part# 322-2

SCREW-HH
Usually ships in 1 day

$

$2.15

0

11

Toro Part# 38-2250

Bracket-Handle R.H.
Usually ships same day

Not available

$

$

12
Usually ships in 1 day

$

$3.30

0

13

Toro Part# 27-7080

HANDLE LATCH
Usually ships in 5 to 8 days

$

$18.21

0

14

Toro Part# 27-6520

HANDLE PIVOT NUT
Usually ships in 1 day

$

$7.13

0

15

Toro Part# 33-3204

SHIELD ROD
Usually ships same day

Not available

$

$

16

Toro Part# 33-5560

SHIELD - TRAILING
Usually ships in 5 to 8 days

$

$67.57

0

17

Toro Part# 3257-32

KEY-WOODRUFF
Usually ships in 1 day

$

$2.23

0

18

Toro Part# 32151-62

RING-RETAINING
Usually ships in 1 day

$

$1.44

0

19

Toro Part# 27-6200

WHEEL TIRE ASM 8 IN
Usually ships in 1 day

$

$45.08

0

20

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

21

Toro Part# 38-7390

Pivot Arm
Usually ships same day

Not available

$

$

22

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

23

Toro Part# 32152-1

NUT-LOCK, CONE
Usually ships in 1 day

$

$1.44

0

24
Usually ships same day

Not available

$

$

25

Toro Part# 36-2820

Decal Step Pad
Usually ships same day

Not available

$

$

26

Toro Part# 36-5060

Spanner Link L.H.
Usually ships same day

Not available

$

$

27
Usually ships in 1 day

$

$1.78

0

28

Toro Part# 38-2320

LH FRT PIVOT ARM WA
Usually ships in 5 to 8 days

$

$91.86

0

29
Usually ships same day

Not available

$

$

30

Toro Part# 36-4690

Decal-Front Deck
Usually ships same day

Currently unavailable

$

$

31
Usually ships in 5 to 8 days

$

$6.63

0

32

Toro Part# 38-2330

Pivot Arm
Usually ships same day

Not available

$

$

33

Toro Part# 3272-11

PIN-COTTER
Usually ships in 1 day

$

$1.00

0

34

Toro Part# 36-0370

Spanner Link R.H.
Usually ships same day

Not available

$

$

35

Toro Part# 36-0030

Decal Height of Cut
Usually ships same day

Not available

$

$

36

Toro Part# 38-7400

Pivot Arm Bracket
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$11.17

0

Toro Part# 8-3389

Loose Parts

Note: Not illustrated

Usually ships same day

Currently unavailable

$

$
