18017 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Engine Tecumseh Model Tvs 90-43007 Parts Diagram

Walk-Behind Mower

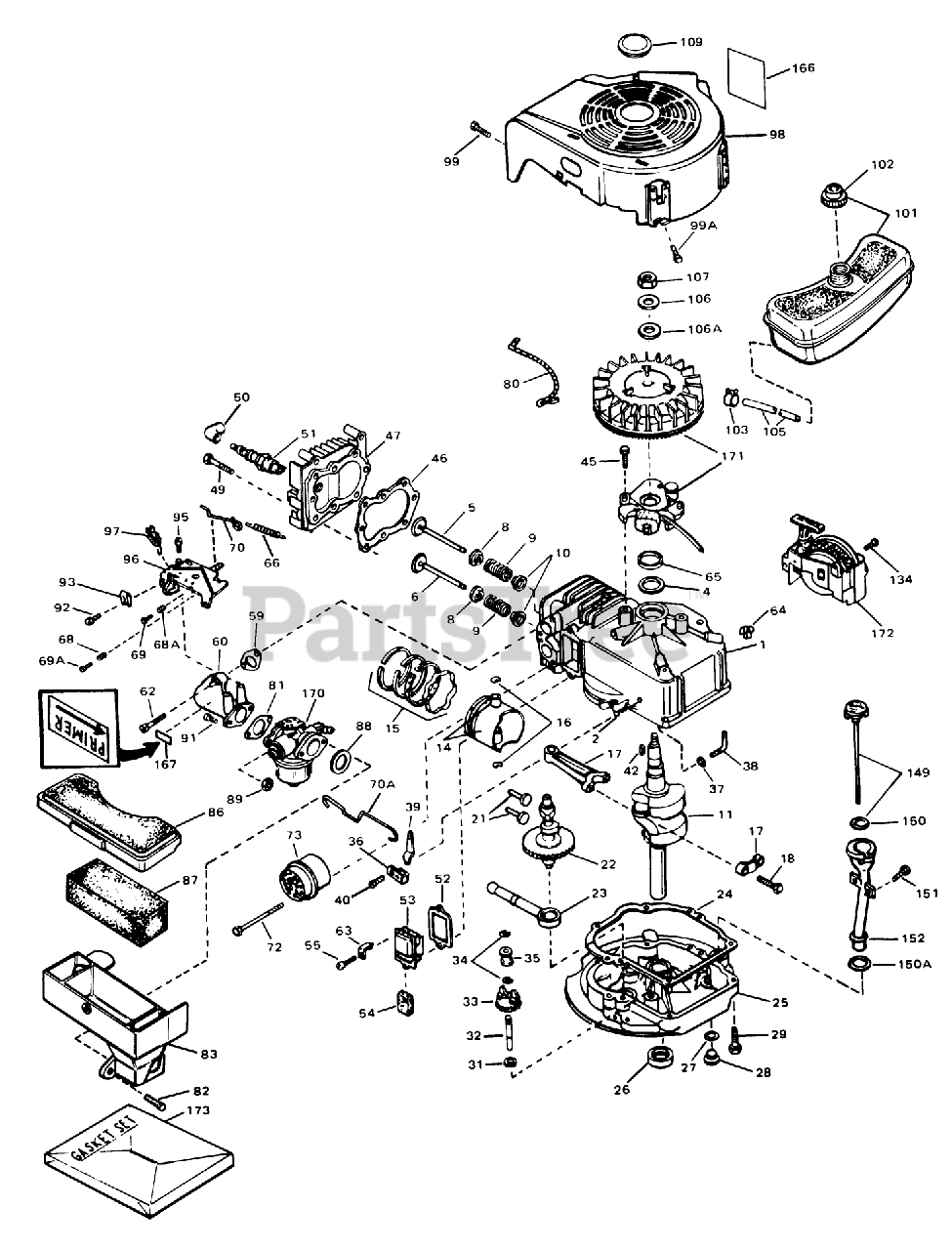

Engine Tecumseh Model Tvs 90-43007 Parts Diagram

  • Title

1

Toro 32537B

Cylinder Assembly (Incl. Ref. #2 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 29183

OIL SEAL

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

8

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

9

Toro 31672

Spring-Valve

$

$

Currently unavailable

10

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 34233A

Crankshaft

$

$

Currently unavailable

14

Toro 32538A

Piston, Pin Ring Assy. (Std.) (Incl. Ref. #15 16)

$

$

Currently unavailable

14

Toro 32548A

Piston, Pin Ring Assy. (.010 Oversize) (Incl. Ref. #15 16)

$

$

Currently unavailable

14

Toro 32549A

Piston, Pin Ring Assy. (.020 Oversize) (Incl. Ref. #1516)

$

$

Currently unavailable

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 33553

Camshaft(Mech.Comp. Release)

$

$

Currently unavailable

23

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

*26750A Gasket, Mounting Flange

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

25

Toro 30594B

Flange Assy., Mounting (Incl. Ref. #26thru 30)

$

$

Currently unavailable

26

Toro 26208

Seal Oil

$

$

Currently unavailable

27

*28833 Gasket, Oil Drain Plug

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

28

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

29

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 30590A

Washer-Flat

$

$

Currently unavailable

32

Toro 30574

Shaft-Governor

$

$

Currently unavailable

33

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 28277

Washer-Flat

$

$

Currently unavailable

38

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

39

Toro 31383

Lever, Governor

$

$

Currently unavailable

40

Toro 650648

Screw, Hex Washer Hd.

$

$

Currently unavailable

42

Toro 610961

Key-Flywheel

$

$

Currently unavailable

45

Toro 650489

Screw

$

$

Currently unavailable

46

*29953B Gasket, Cylinder Head

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

47

Toro 34335

2025A67 ADD.ASSEMBL

$3.23

$

Usually ships in 3-6 days

0

49

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

50

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

51

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

51

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

52

*31619 Gasket, Breather

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

53

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

54

Toro 31410

Element-Breather

$

$

Currently unavailable

55

Toro 650128

Screw

$

$

Currently unavailable

59

*32649 Gasket, Intake Pipe

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

60

Toro 31384

Pipe, Intake

$

$

Currently unavailable

62

Toro 650451

Screw (1/4-20 x 1)

$

$

Currently unavailable

63

Toro 30593

Retainer Clip

$

$

Currently unavailable

64

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

65

Toro 33876

Gasket Stator

$

$

Currently unavailable

66

Toro 31361

Spring Governor

$

$

Currently unavailable

68

Toro 33802

61709/GIL1515A/95-5

$3.23

$

Usually ships in 3-6 days

0

68A

Toro 31342

Spring-Compression

$

$

Currently unavailable

69

Toro 650549

Screw

$

$

Currently unavailable

69A

Toro 650777

Screw

$

$

Currently unavailable

70

Toro 34337

2035A67 ADD.ASSEMBL

$3.23

$

Usually ships in 3-6 days

0

70A

Toro 34336

Link-Throttle

$

$

Currently unavailable

72

Toro 650795

Screw

$

$

Currently unavailable

73

Toro 27181A

Muffler Kit (Incl. Ref. #72)

$

$

Currently unavailable

80

Toro 34231

Wire-Ground

$

$

Currently unavailable

81

*26756 Gasket, Carburetor

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

82

Toro 650806

Screw

$

$

Currently unavailable

83

Toro 34339

Body, Air Cleaner

$

$

Currently unavailable

86

Toro 34341

Cover Air Cleaner

$

$

Currently unavailable

87

Toro 34340

Filter-Air Cleaner

$

$

Currently unavailable

88

*34338 Gasket, Air Cleaner

Note: Indicates items included in Gasket Set part no. 33238B

$

$

Not available

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

91

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

92

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

93

Toro 27793

Conduit

$

$

Currently unavailable

95

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

96

Toro 33131A

Control Assy.-Remote Speed (Incl. Ref. #69 thru 72 76)

$

$

Currently unavailable

97

Toro 610973

Terminal

$

$

Currently unavailable

98

Toro 34345

Housing, Blower

$

$

Currently unavailable

99

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

99A

Toro 650497

Screw

$

$

Currently unavailable

101

Toro 32170A

Tank, Fuel

$

$

Currently unavailable

102

Toro 32387A

Cap, Fuel

$

$

Currently unavailable

103

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

105

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

106

Toro 650763

Washer-Spring

$

$

Currently unavailable

106A

Toro 650791

Washer Flat

$

$

Currently unavailable

107

Toro 650607

Hex Nut

$

$

Currently unavailable

109

Toro 34113

Plug, Screen

$

$

Currently unavailable

134

Toro 650802

Screw (1/2-20x5/8)

$

$

Currently unavailable

149

Toro 34281

Dipstick-Oil (Incl. Ref. #112)

$

$

Currently unavailable

150

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

150A

Toro 34265

Gasket

$

$

Currently unavailable

151

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

152

Toro 34264

Tube-Oil Fill

$

$

Currently unavailable

166

Toro 34346

Decal-Instruction

$

$

Currently unavailable

167

Toro 34363

Decal, Instruction

$

$

Currently unavailable

170

Toro 632046

Carbu retor (Incl. Ref. #81)

$

$

Currently unavailable

171

Toro 610793A

Magneto

$

$

Currently unavailable

172

Toro 590531

Starter-Sidemount

$

$

Currently unavailable

173

Toro 33238B

Gasket Set

$

$

Currently unavailable
