18055x89 - Yard King 18" Walk-Behind Mower (1996) General Assembly Parts Diagram

18" Walk-Behind Mower

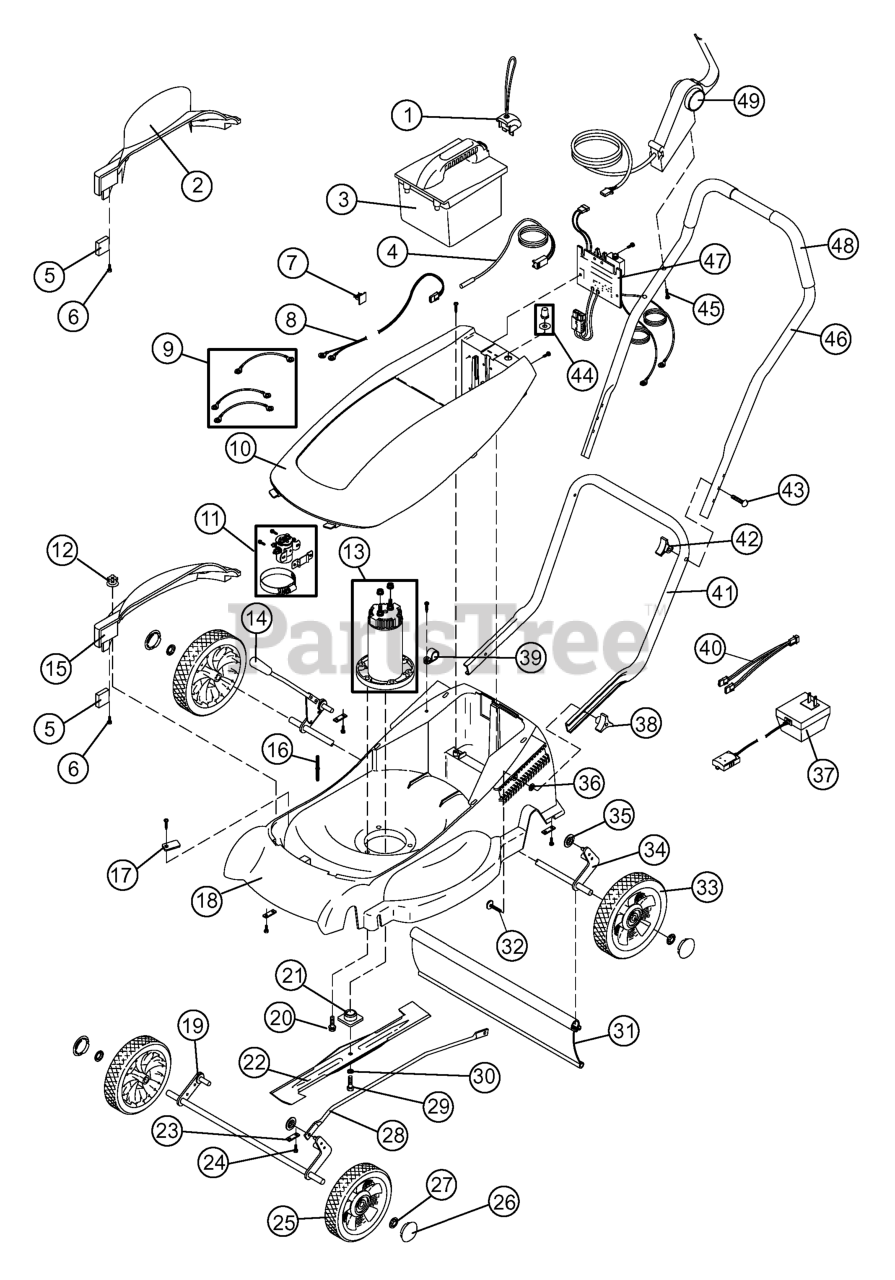

General Assembly Parts Diagram

  • Title

1

Key Assembly *

$

$

Not available

2

Murray 776065

Discharge Chute

$

$

Currently unavailable

3

Battery Pack Assembly

Note: (To order part call Briggs & Stratton)

$

$

Not available

4

Interlock Switch Assembly *

$

$

Not available

5

Murray 776066MA

Magnet

$4.49

$

Usually ships in 2-12 days

0

6

Murray 776067

Screw

$

$

Currently unavailable

7

Murray 776068

Cord Clip

$

$

Currently unavailable

8

Circuit Board Wire Assembly

Note: (To order part call Briggs & Stratton)

$

$

Not available

9

Harness - Wiring

$

$

Not available

10

Murray 776069

Mower Cover *

$

$

Currently unavailable

11

Solenoid *

$

$

Not available

12

Murray 776070

Knob

$

$

Currently unavailable

13

Motor *

$

$

Not available

14

Murray 776071

Height Adjustor Handle

$

$

Currently unavailable

15

Murray 776072

Mulching Cover

$

$

Currently unavailable

16

Murray 776073

Chute Stud

$

$

Currently unavailable

17

Murray 776074

Interlock Retainer

$

$

Currently unavailable

18

Murray 776075

Mower Deck

$

$

Currently unavailable

19

Murray 776076

Height Adjustor, Front

$

$

Currently unavailable

20

Murray 776077

Bolt, Motor

$

$

Currently unavailable

21

Murray 776078

Blade Adaptor

$

$

Currently unavailable

22

Murray 776079

Blade

$

$

Currently unavailable

23

Murray 776080

Axle Retainer

$

$

Currently unavailable

24

Murray 776081

Screw

$

$

Currently unavailable

25

Murray 776082

Front Wheel

$

$

Currently unavailable

26

Murray 776083

Hubcap

$

$

Currently unavailable

27

Murray 776084

Wheel Retainer

$

$

Currently unavailable

28

Murray 776085

Height Adjustor Link

$14.99

$

Usually ships in 2-12 days

0

29

Murray 776086

Blade Mounting Bolt

$

$

Currently unavailable

30

Murray 776087

Washer, Split Ring

$

$

Currently unavailable

31

Murray 776088

Trailing Shield

$12.99

$

Usually ships in 2-12 days

0

32

Murray 776089

Lower Handle Bar Bolt

$

$

Currently unavailable

33

Murray PER - 776090

Rear Wheel

$

$

Currently unavailable

34

Murray 776091

Height Adjustor, Rear

$1.99

$

Usually ships in 2-12 days

0

35

Murray 776092

Link Retainer

$

$

Currently unavailable

36

Murray 776093

Bolt Retainer

$

$

Currently unavailable

37

Charger

Note: (To order part call Briggs & Stratton)

$

$

Not available

38

Murray 776094

Handlebar Knob

$

$

Currently unavailable

39

Murray 776096

Wire Clamp

$

$

Currently unavailable

40

Harness, Battery Charger *

Note: (Optional)

$

$

Not available

41

Murray 776097

Lower Handlebar

$

$

Currently unavailable

42

Murray 776094

Handlebar Knob

$

$

Currently unavailable

43

Murray 776095

Handlebar Bolt

$

$

Currently unavailable

44

Circuit Breaker Label/Boot

Note: (To order part call Briggs & Stratton)

$

$

Not available

45

Murray 776098

Handlebar Screw

$1.99

$

Usually ships in 2-12 days

0

46

Murray 776099

Upper Handlebar

$

$

Currently unavailable

47

Motor Control *

$

$

Not available

48

Murray 776100

Foam Grip

$

$

Currently unavailable

49

Blade Control Assembly

Note: (To order part call Briggs & Stratton)

$

$

Not available
