18060 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

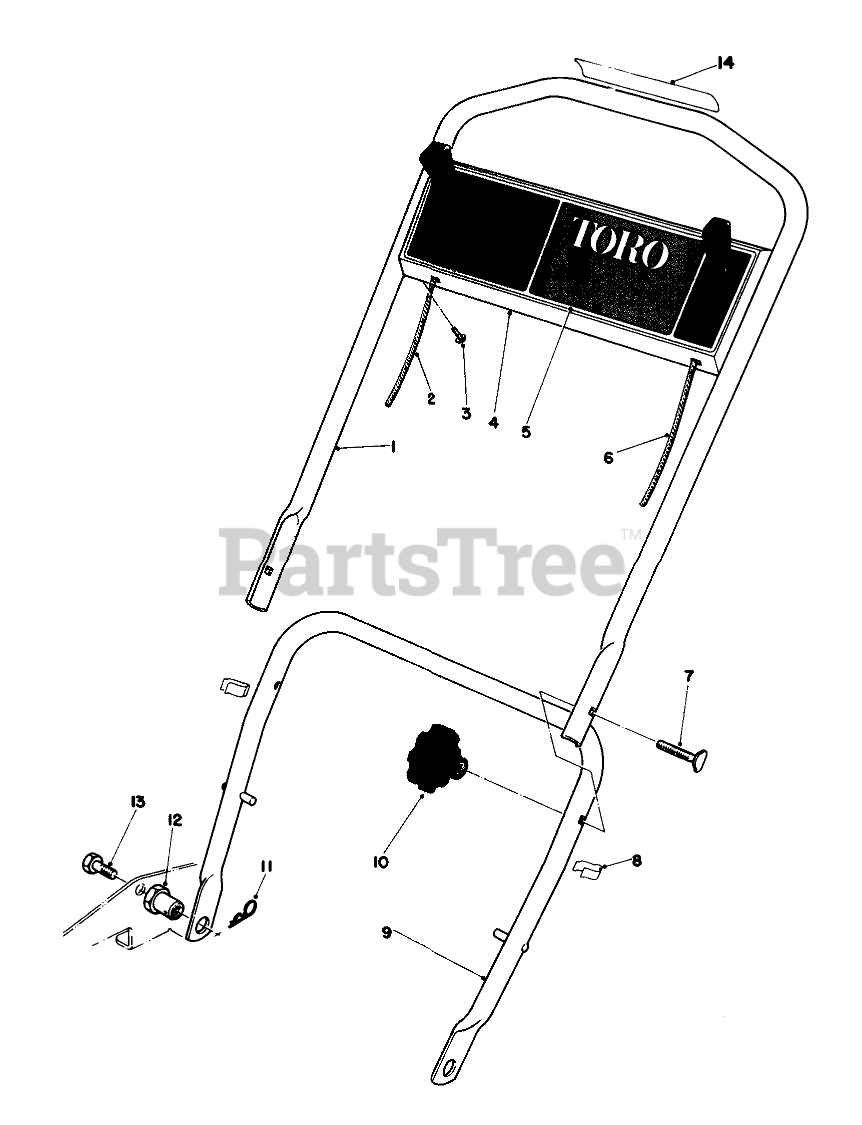

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 36-0110

UPPER HANDLE

$

$

Not available

2

Toro 39-5870

Throttle Control
(Superseded to 46-6020)

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 39-6620

Control Plate

$

$

Not available

5

Toro 39-6600

Decal Control Plate

$

$

Not available

6

Toro 39-5881

Control-Traction
(Superseded to 46-6060)

$143.99

$

In Stock, only 1 left!

0

7

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 38-2450

LOWER HANDLE ASM

$222.99

$

Usually ships in 3-6 days

0

10

Toro 194050

Horn

$

$

Currently unavailable

11

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

12

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

13

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 40-4540

Decal-Instruction

$

$

Not available
