18060 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Engine Assembly Model 18015 Parts Diagram

Walk-Behind Mower

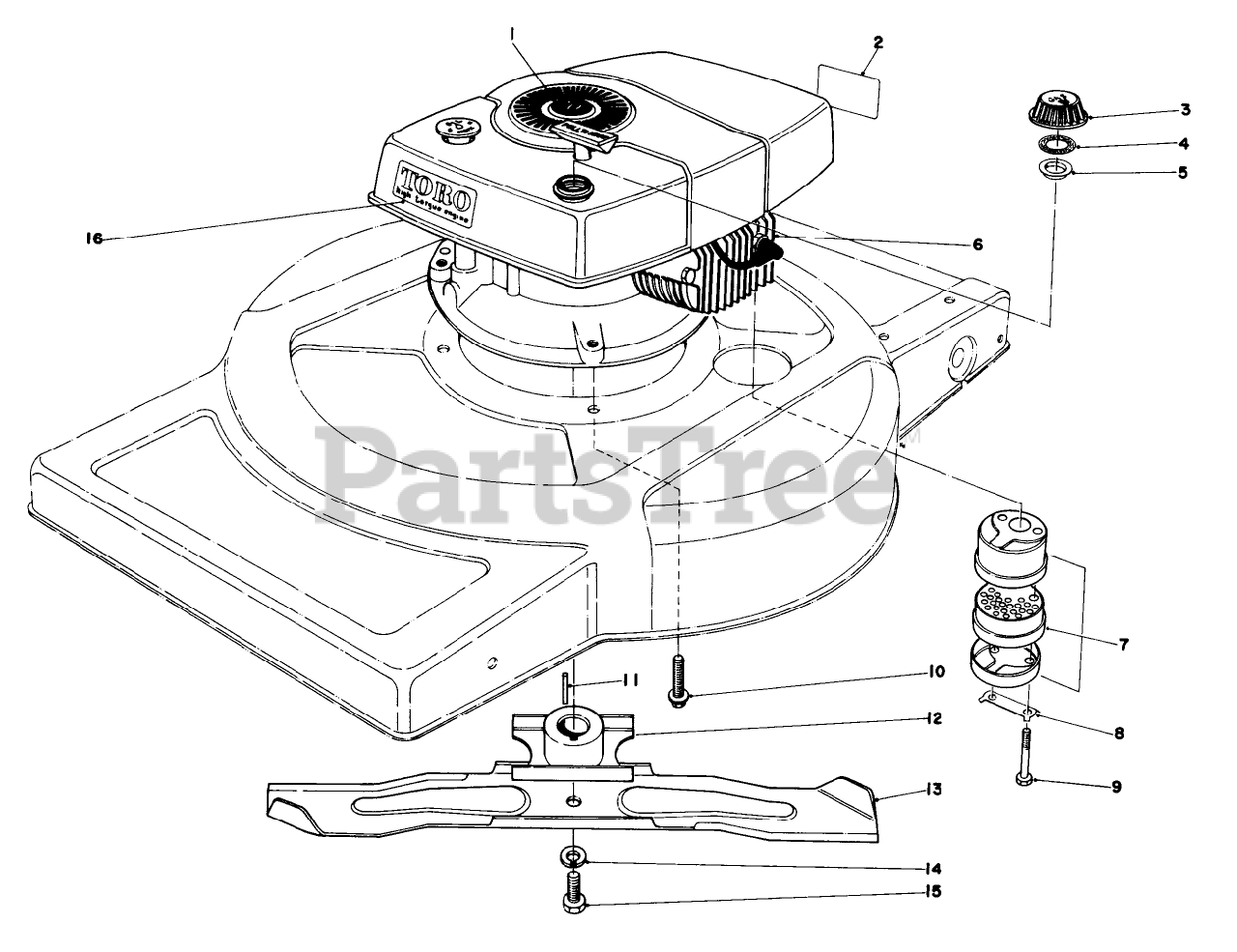

Engine Assembly Model 18015 Parts Diagram

  • Title

1

Toro 214870

Plug Button

$

$

Currently unavailable

2

Toro 37-1580

DISCONTINUED

$

$

Not available

3

Toro 27-7870

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

4

Toro 2210-144

GASKET

$

$

Not available

5

Toro 2210-143

DISCONTINUED

$

$

Not available

6

Toro 221-578

Engine

$

$

Currently unavailable

7

Toro 54769

Muffler (Incl. Ref. #10 11)

$

$

Currently unavailable

8

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

10

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

11

Toro 7-0036

KEY-SQUARE

$

$

Not available

12

Toro 23-0110

See Supercession: 23-0110-03
(Superseded to 23-0110-03)

$

$

Not available

13

Toro 36-8220

See Supercession: 11-6319
(Superseded to 11-6319)

$96.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

15

Toro 23-0080

BLADE SCREW

$

$

Not available

16

Toro 23-1260

DISCONTINUED

$

$

Not available

Toro 36-3200

See Supercession: 39-5930
(Superseded to 39-5930)

Note: Not illustrated

$

$

Not available
