18085 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

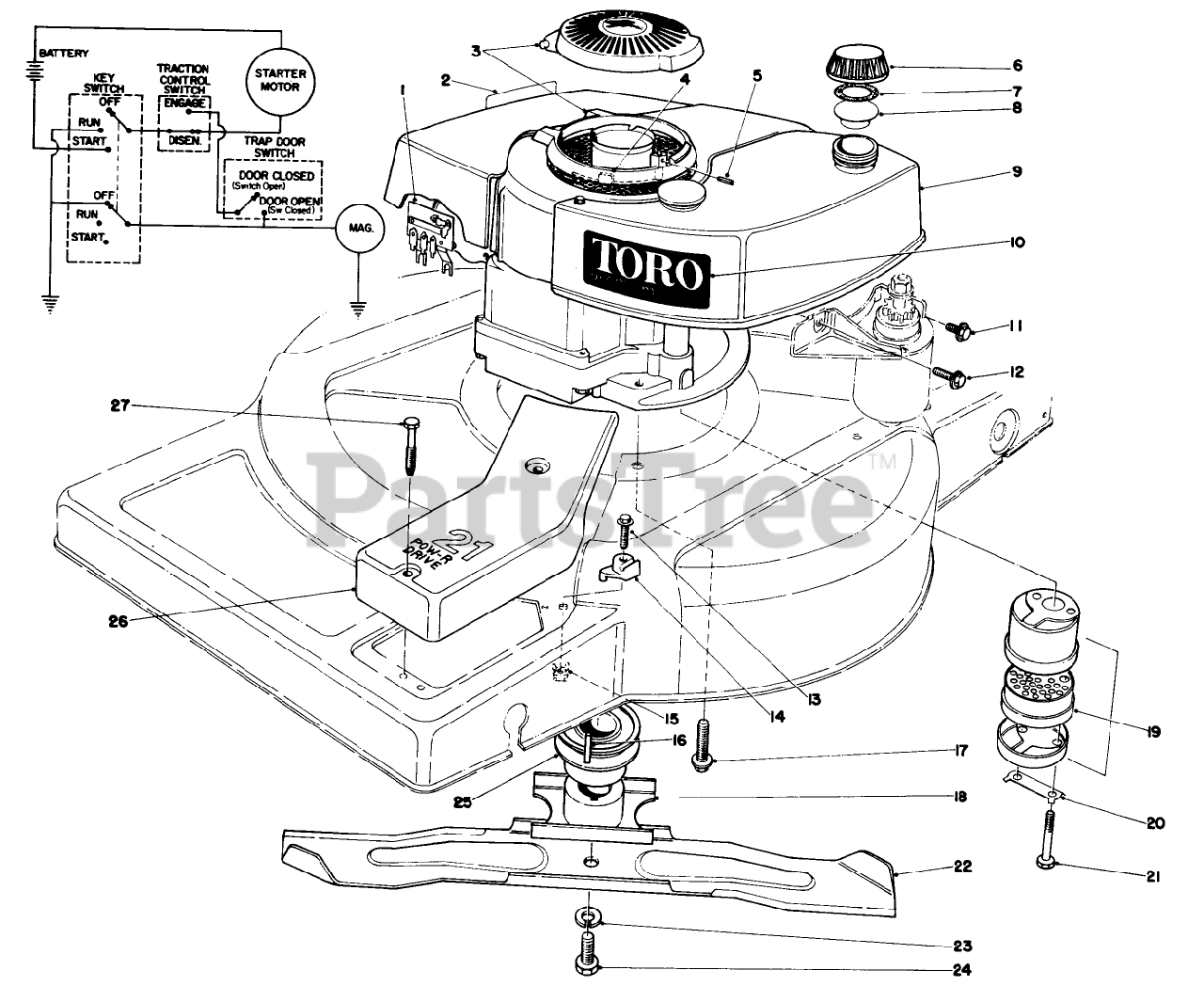

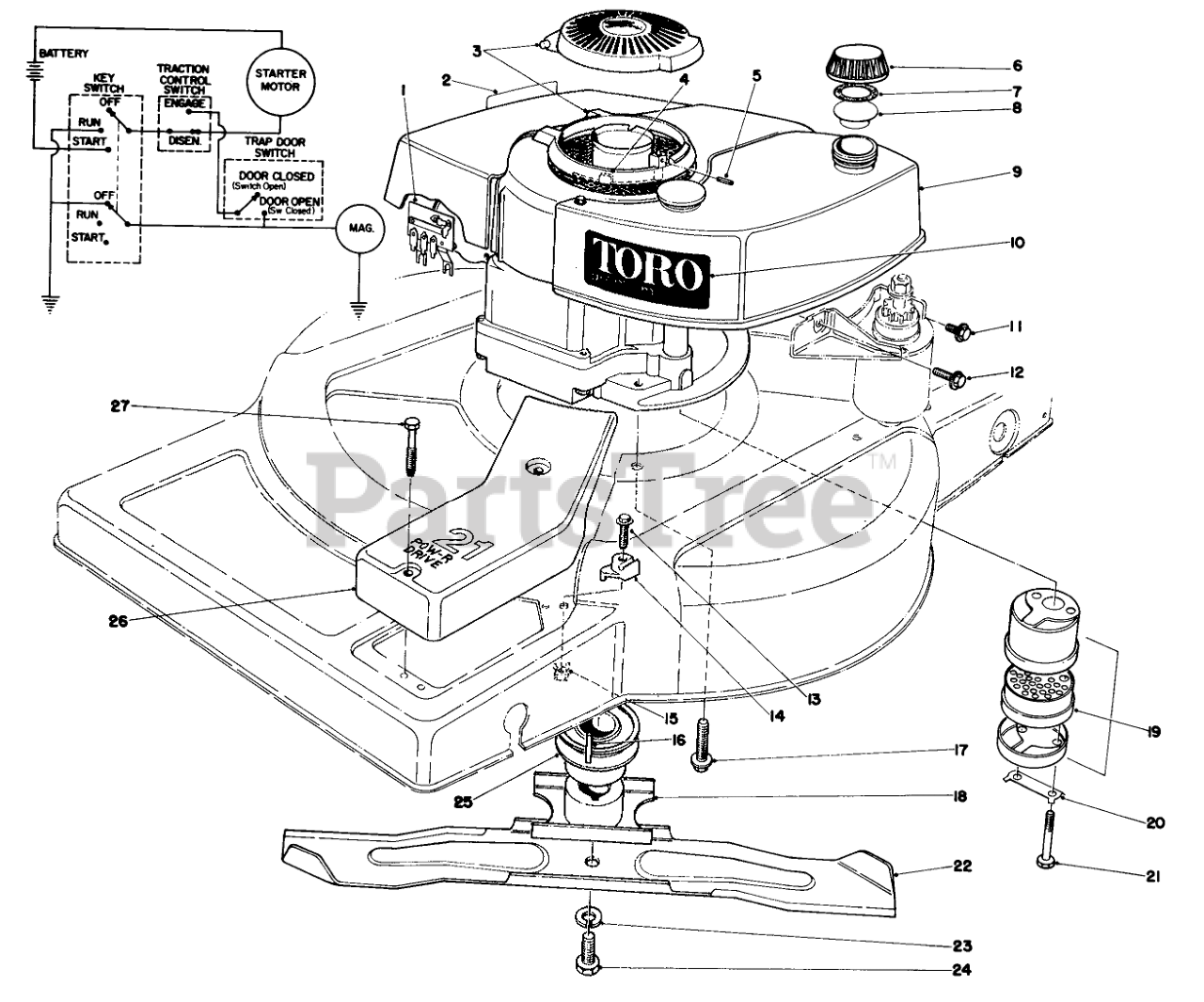

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 24-9770

SWITCH & TERM BLK CVR

$

$

Not available

2

Toro 37-1580

Decal-Maintenan

$

$

Not available

3

Toro 38-3080

Cover Assembly
(Superseded to 38-4720)

$

$

Not available

4

Toro 25-1570

WIRE CLIP

$

$

Not available

5

Toro 32121-90

SPRING PIN

$2.49

$

Usually ships in 3-6 days

0

6

Toro 27-7870

Gas Cap (Incl. Ref. #7 & 8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 221-659

Engine (Model No. TNT100-10073C)

$

$

Currently unavailable

Toro 221-611

Engine

Note: Not illustrated

$

$

Currently unavailable

10

Toro 40-2570

Decal
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

14

Toro 38-6400

CABLE BOSS

$

$

Not available

15

Toro 32115-2

SPEED NUT

$

$

Not available

16

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

17

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

18

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

19

Toro 5-4769

Muffler Assembly (Incl. Ref. #20 & 21)

$54.99

$

Usually ships in 3-6 days

0

20

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

21

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

22

Toro 36-8220

Blade
(Superseded to 11-6319)

$73.99

$

Usually ships in 3-6 days

0

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

24

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

25

Toro 23-0130

Pulley
(Superseded to 93-0278)

$43.99

$

Usually ships in 3-6 days

0

26

Toro 36-0390

COVER BELT

$

$

Not available

27

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

Toro 33-2930

Rope-Starter

Note: Not illustrated

$

$

Not available
