18095 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

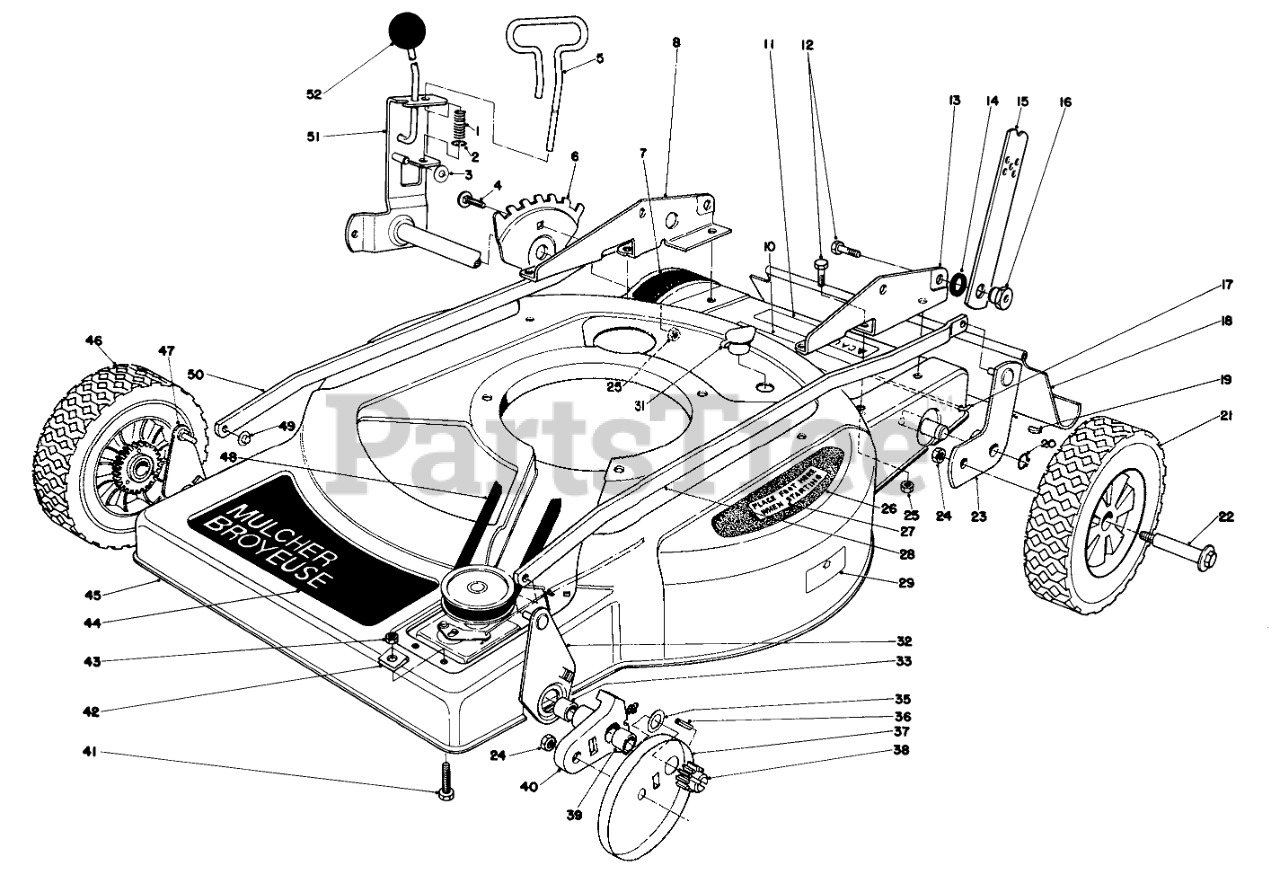

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 38-2340

SPRING-COMPRESSION

$

$

Not available

2

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 14

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 37-7190

Carriage Bolt

$

$

Not available

5

Toro 38-2350

STOP ROD

$

$

Not available

6

Toro 36-0010

HOC ADJUSTMENT PLT

$

$

Not available

7

Toro 37-9880

Decal Height of Cut

$

$

Not available

8

Toro 38-2260

Bracket Handle R.H.

$

$

Not available

10

Toro 37-9870

Decal Caution

$

$

Not available

11

Toro 36-6590

Caution Decal

$

$

Not available

12

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 38-2250

Bracket-Handle R.H.

$

$

Not available

14

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

15

Toro 27-7080

HANDLE LATCH

$22.99

$

Usually ships in 3-6 days

0

16

Toro 27-6520

HANDLE PIVOT NUT

$8.99

$

Usually ships in 3-6 days

0

17

Toro 33-3204

SHIELD ROD

$

$

Not available

18

Toro 33-5560

SHIELD - TRAILING

$82.99

$

Usually ships in 3-6 days

0

19

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

20

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

21

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

22

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

23

Toro 38-7390

Pivot Arm

$

$

Not available

24

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

26

Toro 36-0410

PAD STEP

$

$

Not available

27

Toro 36-2820

Decal Step Pad

$

$

Not available

28

Toro 36-5060

Spanner Link L.H.

$

$

Not available

29

Toro 36-5920

Decal Step

$

$

Not available

31

Toro 6-4500

WASHOUT PLUG

$

$

Not available

32

Toro 38-2420

Link Pivot Arm L.H.
(Superseded to 36-2620)

$

$

Not available

33

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

35

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

36

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

37

Toro 18-9820

WHEEL COVER

$37.99

$

Usually ships in 3-6 days

0

38

Toro 18-9690

Pinion
(Superseded to 99-2532)

$13.99

$

Usually ships in 3-6 days

0

39

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

40

Toro 38-2220

Pivot Arm (Incl. Ref. #33 & 39)

$110.99

$

Usually ships in 3-6 days

0

41

Toro 3-7281

SCREW

$

$

Not available

42

Toro 37-7370

SPEED NUT

$

$

Not available

43

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

44

Toro 38-4430

Decal-Front Deck

$

$

Currently unavailable

45

Toro 38-2210

Housing

$

$

Not available

46

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

47

Toro 38-2430

Link Pivot Arm R.H.
(Superseded to 36-2620)

$

$

Not available

48

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

49

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

50

Toro 36-0370

Spanner Link R.H.

$

$

Not available

51

Toro 38-7400

Pivot Arm Bracket

$

$

Not available

52

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

Toro 8-5629

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
