181-014J000 - MTD Walk-Behind Mower, Electric (1991) Parts Parts Diagram

Walk-Behind Mower, Electric

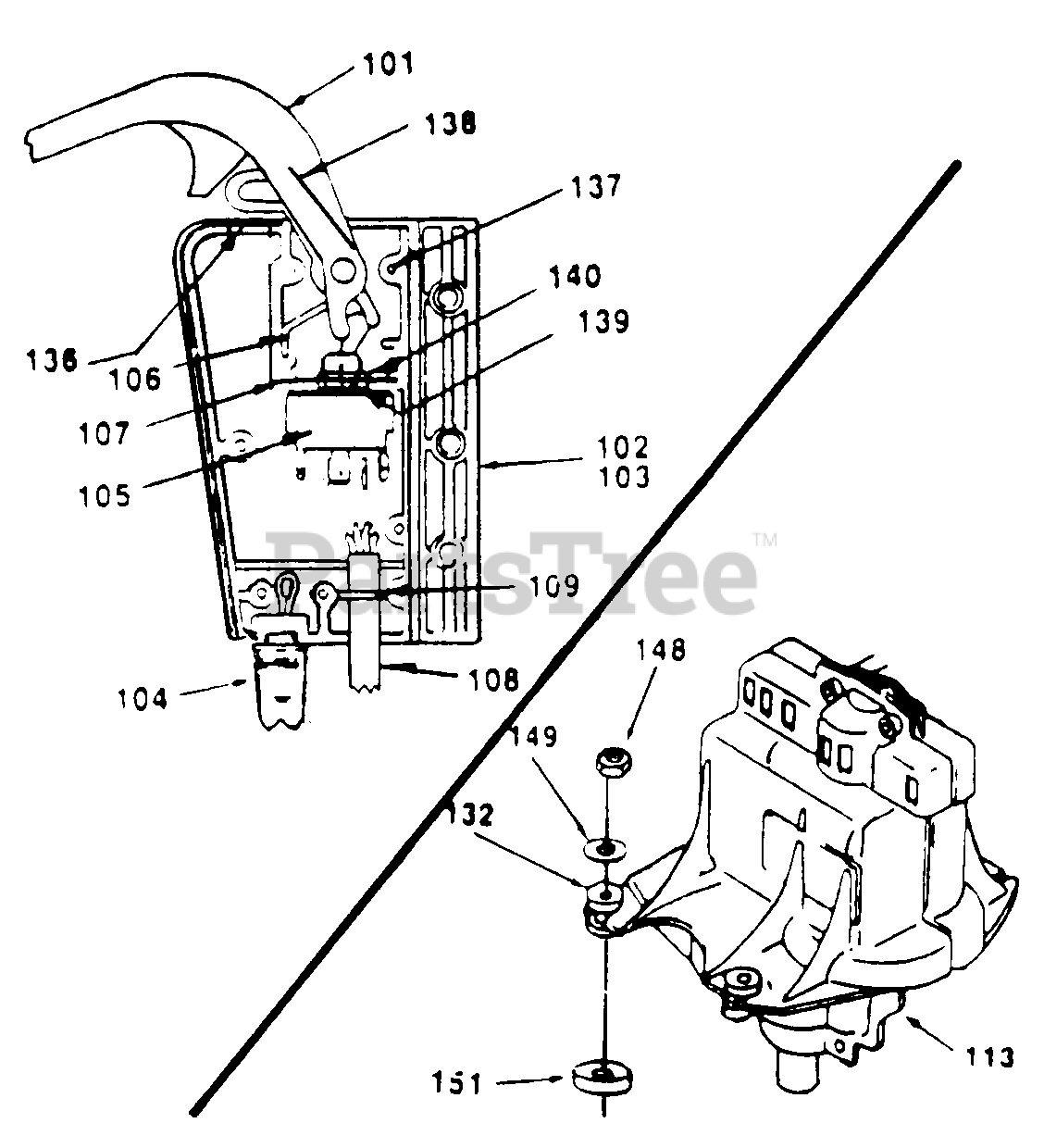

Parts Parts Diagram

  • Title

101

MTD 725-1594

Handle - Switch

$

$

Not available

102

MTD 725-1593

Housing - Upper Halt

$

$

Currently unavailable

103

MTD 725-1592

Housing - Lower Halt

$

$

Not available

104

MTD 729-0316

Plug Assembly

$

$

Not available

105

MTD 725-1591

Switch

$

$

Not available

106

MTD 732-0666

Spring - Switch Handle

$

$

Currently unavailable

107

MTD 725-1596

Switch Mount Plate

$

$

Not available

108

MTD 629-0002

Cord Assembly

$

$

Currently unavailable

109

MTD 725-1595

Cord Restraint

$

$

Currently unavailable

113

MTD 624-0015

Motor&SwitchAssembly Complete

$

$

Currently unavailable

132

MTD 731-1216

Insulator - Motor Housing

$

$

Not available

136

MTD 721-0281

Hole Plug

$

$

Currently unavailable

137

MTD 710-1172

Screw-Switch 80x

Note: (Spec)

$

$

Not available

138

MTD 725-1597

Interlock Trigger

$

$

Not available

139

MTD 736-0192

Washer

$3.99

$

In Stock, only 2 left!

0

140

MTD 712-0444

Nut-Switch Mounting

$

$

Currently unavailable

148

MTD 712-0324

Nut 1/4-20 Locking

$3.49

$

In Stock, Qty 20+

0

149

MTD 736-3090

Flat Washer 1/4" I.D.

$6.49

$

In Stock, only 2 left!

0

151

MTD 731-1175

Spacer - Motor Mounting

$

$

Not available

MTD 818-60138

Cord & Switch Box Assembly (Complete)

$

$

Currently unavailable
