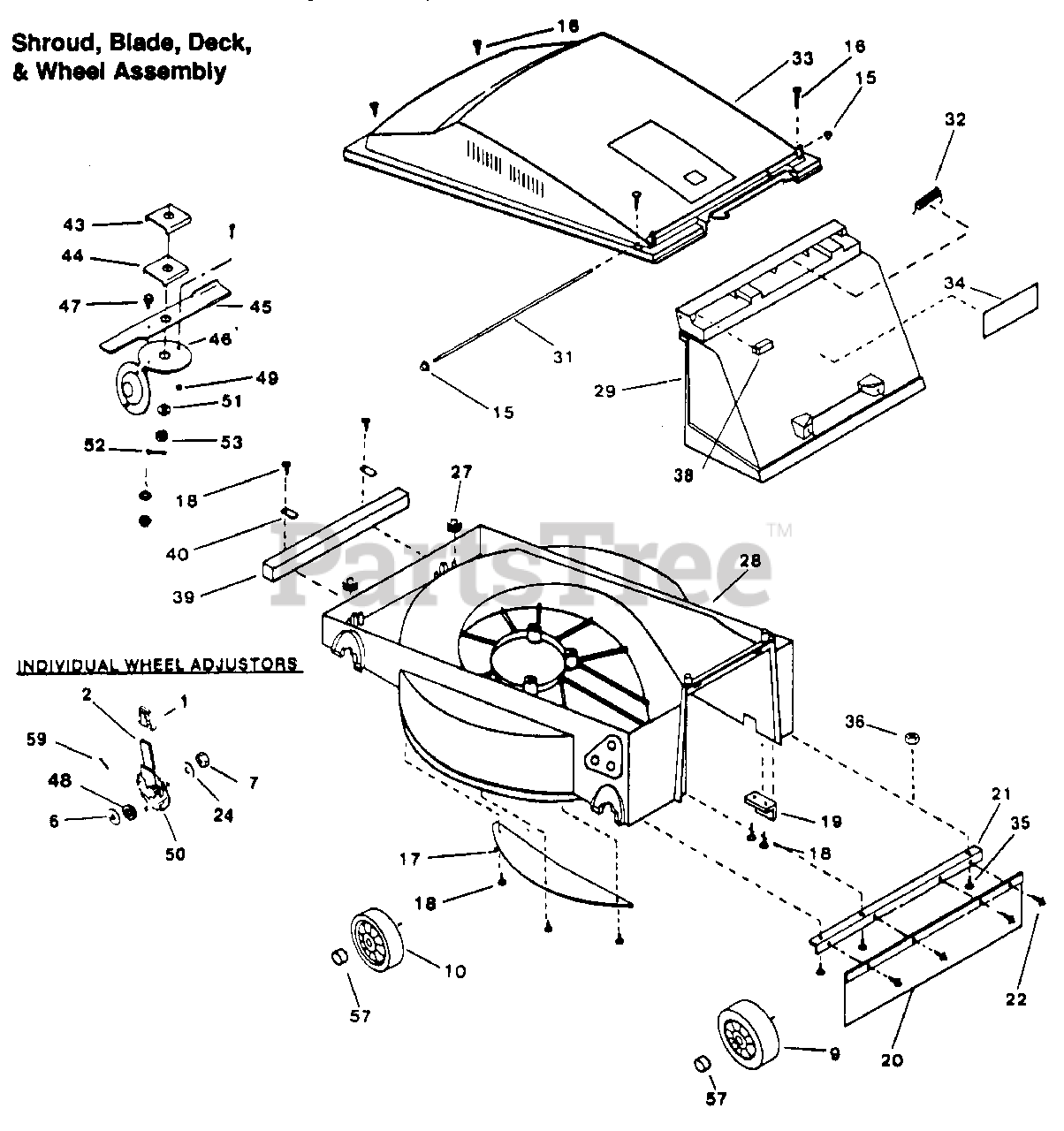

181-184D000 - MTD Walk-Behind Mower, Electric (1991) Shroud, Blade, Deck & Wheels Parts Diagram

Walk-Behind Mower, Electric

Shroud, Blade, Deck & Wheels Parts Diagram

  • Title

1

MTD 720-0239

Knob

$

$

Not available

2

MTD 787-0133

Handle-Wheel Adjust

$

$

Not available

6

MTD 736-3068

Flat Washer 1/2"

$6.49

$

In Stock, only 2 left!

0

7

MTD 712-0431

Nut 3/8-16 Locking
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

MTD 734-1697

8" Wheel

$

$

Not available

10

MTD 734-1170

7" Wheel

$

$

Not available

15

MTD 726-0135

Retainer

$6.49

$

In Stock, only 4 left!

0

16

MTD 710-1169

Screw #10-16 x 1"

$

$

Not available

17

MTD 782-7517

Cover Plate

$

$

Currently unavailable

18

MTD 710-1168

Screw #10-16 x 3/4"
(Superseded to 710-1128)

$

$

Not available

19

MTD 782-9003

Retainer-Axle

$

$

Currently unavailable

20

MTD 720-0254

Trail Shield

$

$

Not available

21

MTD 782-7518

Hanger

$

$

Currently unavailable

22

MTD 728-0225

Blind Rivet

$

$

Not available

24

MTD 736-0300

Flat Washer 3/8"

$3.99

$

In Stock, Qty 20+

0

27

MTD 726-0286

Fastener-Shroud

$

$

Not available

28

MTD 782-0106

20" Molded Deck (Black)

Variations

MTD 782-0106-0637

No Longer Available DECK ASM - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 731-1243

Rear Door

$

$

Not available

31

MTD 750-0843

Pin-Rear Door

$

$

Currently unavailable

32

MTD 732-0665

Spring-Rear Door

$

$

Not available

33

MTD 731-1242

Shroud-Motor

$

$

Not available

34

MTD 777-9390

Decal-Data & Warning

$

$

Currently unavailable

35

MTD 710-0280

Screw #10-24 x 3/4"

$

$

Not available

36

MTD 712-0161

Nut #10-24

$4.49

$

In Stock, Qty 9

0

38

MTD 731-1244

Block-Rear Door

$

$

Currently unavailable

39

MTD 711-0874

Counterweight

$

$

Currently unavailable

40

MTD 782-9004

Retainer

$

$

Not available

43

MTD 748-0343

Blade Adaptor

$

$

Not available

44

MTD 731-1218

Adaptor Insulator

$

$

Not available

45

MTD 742-0553

Blade-20"

$

$

Not available

46

MTD 731-1217

Blade Insulator

$

$

Not available

47

MTD 710-0451

Carriage Bolt 5/16-18 x 3/4" (Short Sq.-Neck)

$3.99

$

In Stock, Qty 20+

0

48

MTD 750-0796

Plastic Wheel Spacer

$

$

Not available

49

MTD 712-0437

Keps Nut 5/16-18

$

$

Not available

50

MTD 642-0105

Adjuster

Note: (Right Front)

$

$

Currently unavailable

MTD 642-0107

Adjuster

Note: (Left Front)

$

$

Currently unavailable

MTD 642-0106

Adjuster

Note: (Right Rear)

$

$

Not available

MTD 642-0108

Adjuster

Note: (Left Rear)

$

$

Currently unavailable

51

MTD 736-0462

Washer

Note: (Special)

$

$

Not available

52

MTD 714-0228

Cotter Pin 3/32 x 1 " (Stainless Steel)

$

$

Not available

53

MTD 712-0401

Blade Nut

Note: (Special)

$

$

Currently unavailable

57

MTD 720-0251

Hub Cap

Note: (Optional)

$

$

Not available

59

MTD 714-0507

Cotter Pin 3/32 x 3/4"

$4.49

$

In Stock, only 4 left!

0

MTD 770-7392F

Owner's Guide

Note: (Not Shown)

$

$

Currently unavailable
