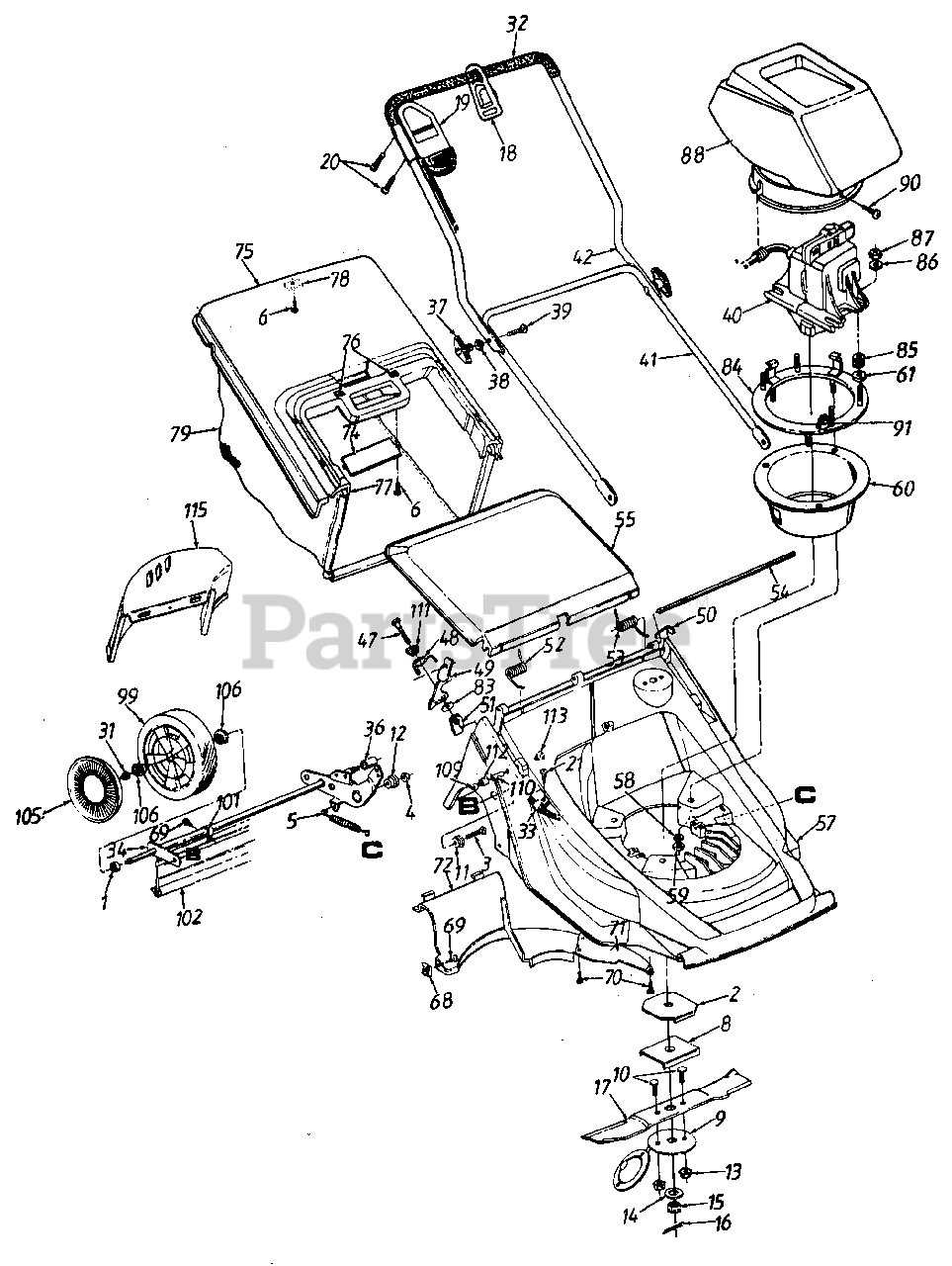

181-604G000 - MTD Walk-Behind Mower, Electric (1991) Parts Parts Diagram

Walk-Behind Mower, Electric

Parts Parts Diagram

  • Title

1

MTD 750-0289

Spacer .508" I.D. x .875" O.D.

$

$

Not available

2

MTD 748-0343

Blade Adapter

$

$

Not available

3

MTD 710-1006

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

4

MTD 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

5

MTD 732-0478

Extension Spring 6.12" Lg.
(Superseded to 932-0478)

$11.99

$

In Stock, Qty 18

0

6

MTD 710-1220

Truss Mach. Hi-Riser Tap Scr. #12 x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

8

MTD 731-1218

Blade Adapter Insulator

$

$

Not available

9

MTD 731-1217

Blade Insulator

$

$

Not available

10

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

11

MTD 750-0812

Pivot Spacer-R.H.

$

$

Not available

12

MTD 750-0813

Pivot Spacer-L.H.

$

$

Not available

13

MTD 712-0437

Hex Keps Nut 5/16-18 Thd.

$

$

Not available

14

MTD 736-0462

Fl-Wash. .516" I.D. x 1.5" Lg.

$

$

Not available

15

MTD 712-0401

Slotted Hex Nut 1/2-20 Thd.

$

$

Currently unavailable

16

MTD 714-0228

Cotter Pin 1" Lg.

$

$

Not available

17

MTD 742-0576

18" Blade

$

$

Currently unavailable

18

MTD 725-1590

Cord Restraint

$

$

Not available

19

MTD 625-0004

Cord and Switch Ass'y. (Complete)

$

$

Not available

20

MTD 710-1150

Self-Tap Scr. #7 x 1" Lg.

$

$

Not available

21

MTD 710-1128

Pan Hd. Scr. #10-16 x .75" Lg.

$

$

Not available

31

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.49

$

In Stock, Qty 18

0

32

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$30.99

$

Usually ships in 3-6 days

0

33

MTD 726-0308

Clamp

$

$

Currently unavailable

34

MTD 17803

Rear Axle Ass'y.

$

$

Not available

36

MTD 750-0151

Spacer .55" I.D. x .755" O.D.
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

37

MTD 720-0241

Knob Ass'y.
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

38

MTD 736-0451

Saddle Washer .32" I.D.

$3.99

$

In Stock, only 2 left!

0

39

MTD 710-1152

Curved Carr. Bolt 5/16-18 x 2" Lg.

$

$

Not available

40

MTD 818-60011

Motor & Switch Ass'y.

$

$

Currently unavailable

41

MTD 749-0832

Lower Handle

$

$

Not available

42

MTD 749-0849

Upper Handle

$

$

Not available

47

MTD 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

48

MTD 732-0646

Handle Latch Spring-R.H.

$

$

Not available

MTD 732-0647

Handle Latch Spring-L.H.

$

$

Not available

49

MTD 17748

Handle Lock-R.H.

$

$

Not available

50

MTD 17749

Handle Lock-L.H.

$

$

Not available

51

MTD 726-0211

U-Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

52

MTD 732-0654

Torsion Spring-R.H.

$

$

Not available

53

MTD 732-0653

Torsion Spring-L.H.

$

$

Not available

54

MTD 747-0773

Hinge Pin 14.5" Lg.

$

$

Not available

55

MTD 731-1106

Chute Door

$

$

Not available

57

MTD 731-1101

Deck Ass'y.

$

$

Not available

58

MTD 736-0461

Fl-Wash. 5/16" I.D. x .75" O.D.

$

$

Not available

59

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

60

MTD 731-1257

Motor Shield

$

$

Not available

61

MTD 731-1255

Insulator Spacer

$

$

Currently unavailable

68

MTD 712-0400

U-Nut #10-16 Thd.
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

69

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0

70

MTD 710-0969

Truss Mach. Hi-Riser Tap Scr. #12x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

71

MTD 17740

Spiral Baffle

Variations

MTD 17740-0637

No Longer Available BAFFLE-SPI - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 731-1109

Chute Baffle

$

$

Not available

74

MTD 731-1113

Hardtop Cover Plate

$

$

Not available

75

MTD 731-1108

Hardtop Cover

$

$

Not available

76

MTD 720-0272

Magnetic Catch

$

$

Not available

77

MTD 747-0538

Catcher Frame

$

$

Not available

78

MTD 17801

Bag Frame Mtg. Plate

Variations

MTD 17801-0637

No Longer Available FRAME-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 764-0273

Grass Bag

$

$

Not available

83

MTD 736-0242

Bell-Wash. 5/16" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

84

MTD 818-60006

Plate Ass'y.

$

$

Not available

85

MTD 731-1216

Insulator-Motor Housing

$

$

Not available

86

MTD 736-3090

Fl-Wash. .26" I.D. x .72" O.D.

$6.49

$

In Stock, only 2 left!

0

87

MTD 712-0324

Hex Top L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

88

MTD 731-1256

Motor Cover

$

$

Currently unavailable

MTD 726-0306

Cable Tie

$

$

Not available

90

MTD 710-0280

Truss Mach. Scr. #10-24 x .75" Lg.

$

$

Not available

91

MTD 712-0410

Clip

$

$

Not available

99

MTD 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

101

MTD 726-0287

Clamp

$

$

Not available

102

MTD 731-0898

Rear Flap

$

$

Currently unavailable

105

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

106

MTD 741-0180

Ball Brg. 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

109

MTD 710-1131

Truss Hd. Scr. 1/4-20 x 2" Lg.

$

$

Not available

110

MTD 750-0816

Spacer .26" I.D. x 1.20" Lg.-R.H.

$

$

Not available

MTD 750-0817

Spacer .26" I.D. x 1.52" Lg.-L.H.

Note: (Not Shown)

$

$

Not available

111

MTD 738-0839

Latch Plate Bushing

$

$

Not available

112

MTD 750-0503

Spacer .383" I.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

113

MTD 712-0399

Propel Nut 1/4-20 Thd.

$

$

Currently unavailable

115

MTD 731-1112

Rear Discharge Chute Deflector

$

$

Not available
