181-604G000 - MTD Walk-Behind Mower, Electric (1991) Parts Parts Diagram

Walk-Behind Mower, Electric

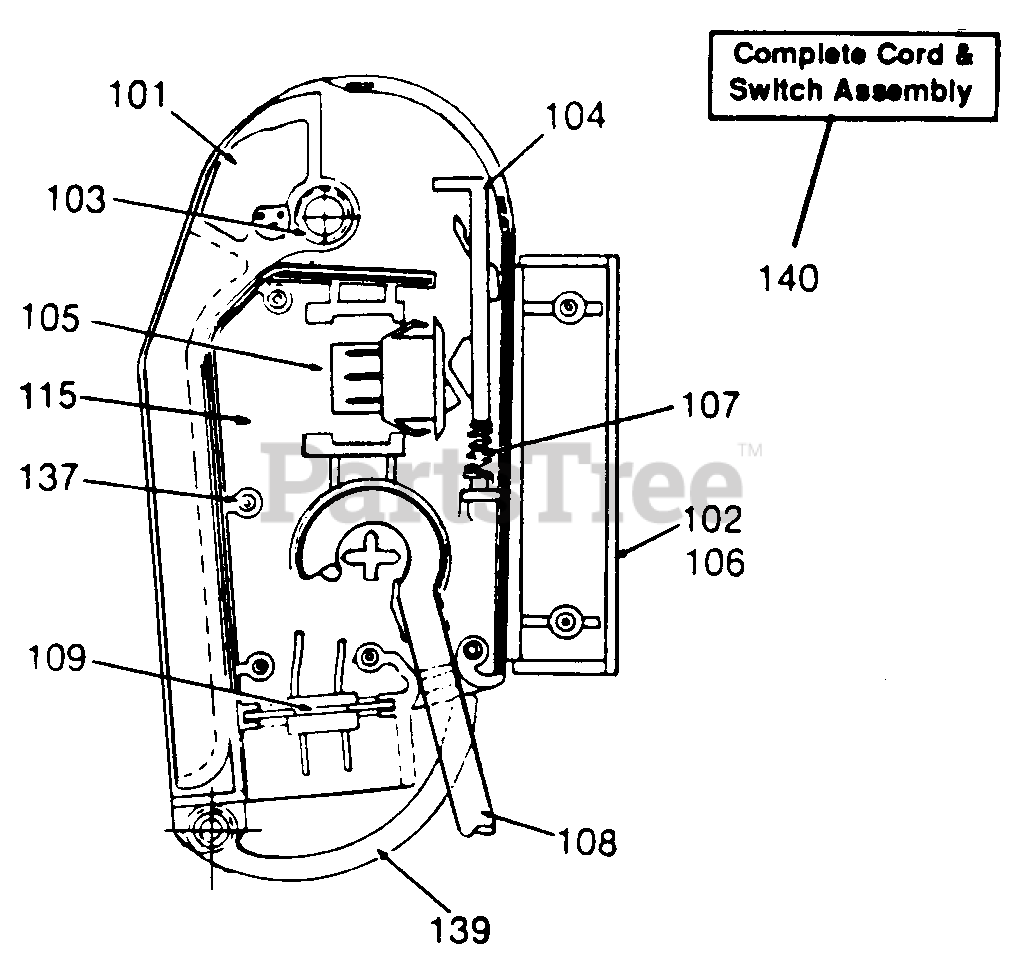

Parts Parts Diagram

  • Title

101

MTD 731-1210

Handle-Switch

$

$

Not available

102

MTD 731-1208

Housing-Upper Half

$

$

Not available

103

MTD 732-0679

Spring

$

$

Not available

104

MTD 731-1198

Latch

$

$

Not available

105

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

106

MTD 731-1209

Housing-Lower Half

$

$

Not available

107

MTD 732-0681

Latch Spring

$

$

Not available

108

MTD 629-0023

Cord Assembly

$

$

Not available

109

MTD 729-0304

2-Prong Plug
(Superseded to 929-0304)

$

$

Not available

115

MTD 818-60002

Jumper Wire Ass'y.

$

$

Currently unavailable

137

MTD 710-1147

Screw-Switch Box(Special)

Note: (Not Shown)

$

$

Not available

139

MTD 731-1211

Plug Retainer

$

$

Not available

140

MTD 629-0004

Cord & Switch Box Ass'y. (Complete)

$

$

Not available
