181 - Husqvarna Chainsaw (1984-02) Oil Pump/Clutch Parts Diagram

Chainsaw

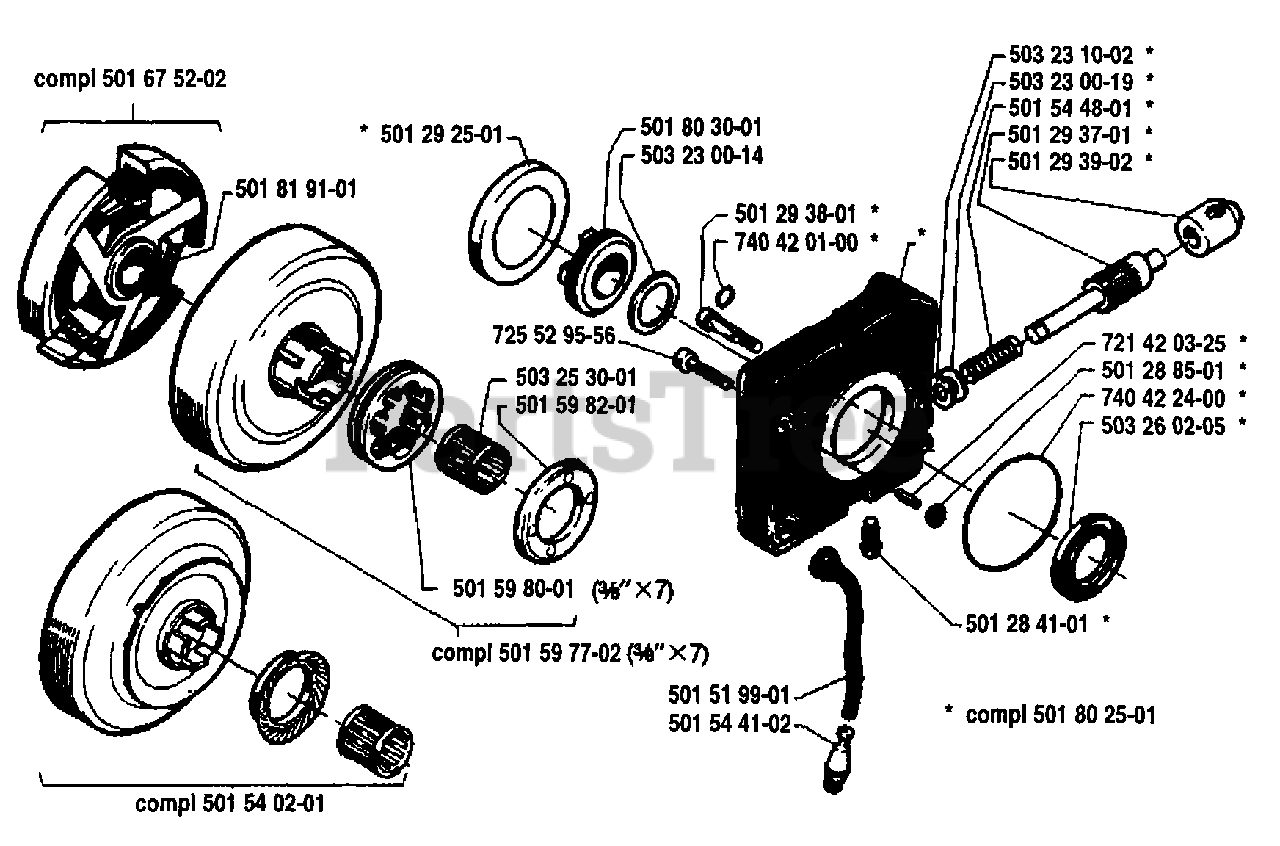

Oil Pump/Clutch Parts Diagram

  • Title

501675202

Husqvarna 501675202

CLUTCH
(Superseded to 501675203)

$93.46

$

Usually ships in 3-10 days

0

501292501

Husqvarna 501292501

REPL BY 503 49 50-01
(Superseded to 503495001)

$

$

Not available

501819101

Husqvarna 501819101

Spring
(Superseded to 503560401)

$

$

Not available

725529556

Husqvarna 725529556

SCREW MC6S 4X20
(Superseded to 503202620)

$5.99

$

In Stock, only 1 left!

0

503253001

Husqvarna 503253001

SUPPORT BUSHING

$22.99

$

In Stock, only 1 left!

0

501598201

Husqvarna 501598201

SEALING

$

$

Not available

501803001

Husqvarna 501803001

WORM WHEEL

$7.99

$

In Stock, only 1 left!

0

503230014

Husqvarna 503230014

WASHER 15X24
(Superseded to 503230058)

$6.99

$

In Stock, Qty 12

0

501293801

Husqvarna 501293801

SCREW

$

$

Not available

740420100

Husqvarna 740420100

O-RING

$5.99

$

In Stock, only 1 left!

0

503231002

Husqvarna 503231002

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

503230019

Husqvarna 503230019

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

501544801

Husqvarna 501544801

SPRING

$5.99

$

Usually ships in 3-10 days

0

501293701

Husqvarna 501293701

PUMP PLUNGER

$

$

Not available

501293902

Husqvarna 501293902

BUSHING

$

$

Not available

721420325

Husqvarna 721420325

SPRING PIN 3X6

$

$

Not available

501288501

Husqvarna 501288501

X-RING

$8.99

$

In Stock, only 1 left!

0

740422400

Husqvarna 740422400

O-RING

$6.99

$

In Stock, Qty 12

0

503260205

Husqvarna 503260205

SEALING RING

$18.99

$

In Stock, Qty 11

0

501284101

Husqvarna 501284101

CONTROL SCREW

$

$

Not available

501802501

Husqvarna 501802501

OIL PUMP
(Superseded to 503698101)

$159.99

$

Usually ships in 3-10 days

0

501598001

Husqvarna 501598001

REPL BY 501 59 80-02
(Superseded to 640200214)

$8.49

$

In Stock, Qty 20+

0

501597702

Husqvarna 501597702

28094 DRUM
(Superseded to 640200093)

$

$

Not available

501519901

Husqvarna 501519901

OIL HOSE

$17.99

$

In Stock, Qty 7

0

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

501540201

Husqvarna 501540201

CLUTCH DRUM 3/8 X 8 SPUR

$

$

Not available
