1811-0 - Generac 1,800 PSI Pressure Washer Main Unit Parts Diagram

1,800 PSI Pressure Washer

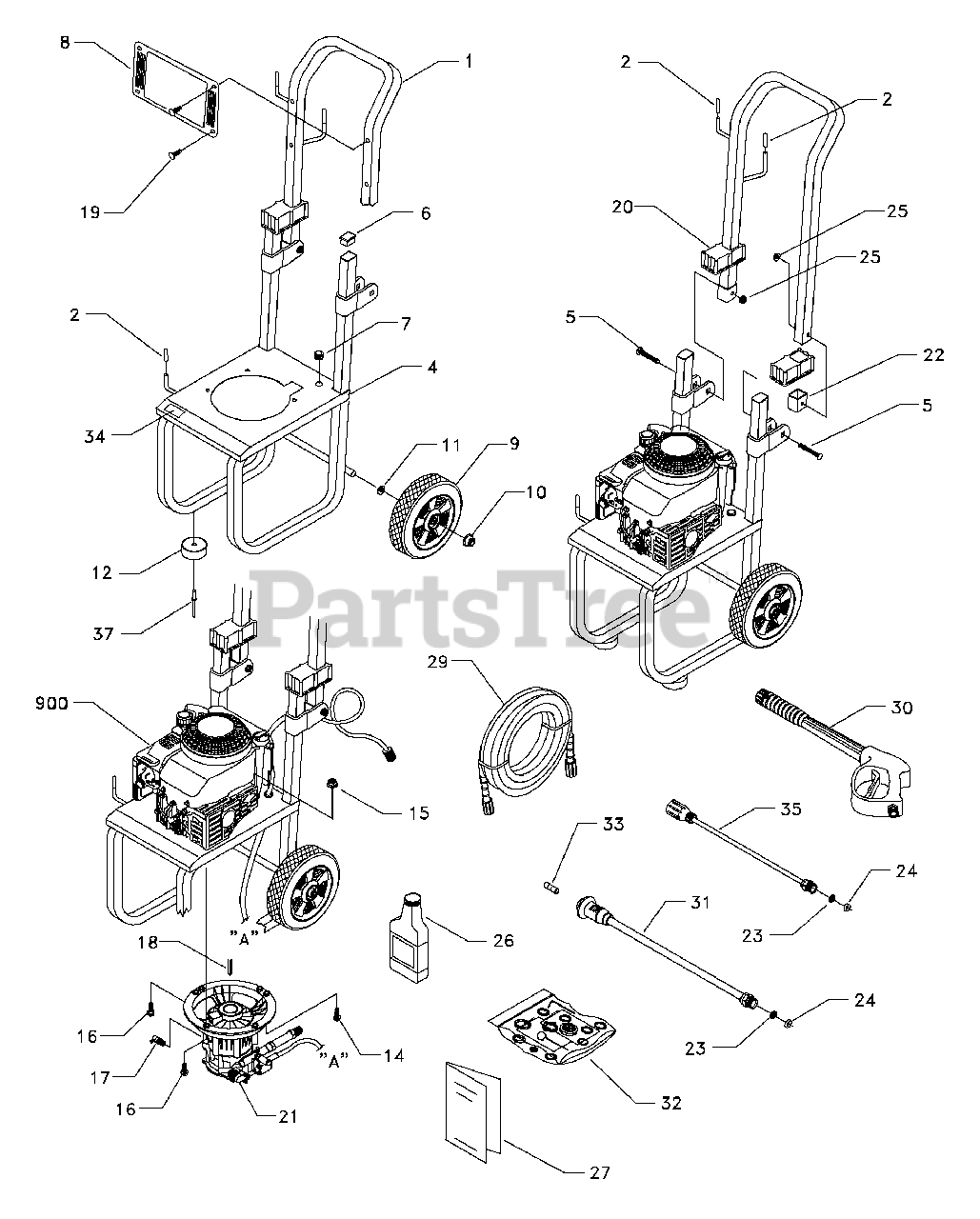

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton GB3330GS

HANDLE

$

$

Currently unavailable

2

Briggs & Stratton B2516GS

CAP,Vinyl

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton GB3307GS

BASE

$

$

Currently unavailable

5

Briggs & Stratton B3085GS

CARRIAGE BOLT, 1/4"-20 x 1 1/2"

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 81895GS

CAP, Plug

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 30809GS

GROMMET, Chemical Hose

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 191695GS

DECALS/BILLBOARD

$56.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 21206GS

TIRE, 2" x 8" Black Mag

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190146GS

PUSHNUT, 1/2"

$9.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 49808GS

WASHER, M12 Flat

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 8

0

13

Briggs & Stratton 57821GS

HHCS, M8

$2.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton A2013GS

SHCS, M8 - 1.25 x 70mm

$5.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 52858GS

NUT, M8

$3.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 190750GS

SHCS, M8 -1.25 x 50mm

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 17

0

18

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1797GS

FASTENER, Clip

$3.99

$

In Stock, Qty 8

0

20

Briggs & Stratton B2791GS

COVER, Hinge

$7.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194216GS

PUMP
(Superseded to 206383GS)

$

$

Not available

22

Briggs & Stratton B2790GS

CAP, End

$2.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 97837GS

O-RING

$3.49

$

In Stock, Qty 9

0

25

Briggs & Stratton B2071GS

NUT, 1/4"-20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 191689GS

MANUAL

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 190249GS

HOSE, 1/4" x 25’
(Superseded to 708962)

$

$

Not available

30

Briggs & Stratton B1862BGS

GUN

$93.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 188792GS

WAND,Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 191922GS

TAG, Nozzle Instructions

$18.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 21761GS

KIT, O-Ring Maintenance

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2335GS

TURBO

$47.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 52858GS

NUT, M8

$3.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 188194GS

BLIND RIVET

$1.49

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available
