1817 H (1691713) - AGCO 48" Garden Tractor, 17hp Electrical Group (17HP) Parts Diagram

48" Garden Tractor, 17hp

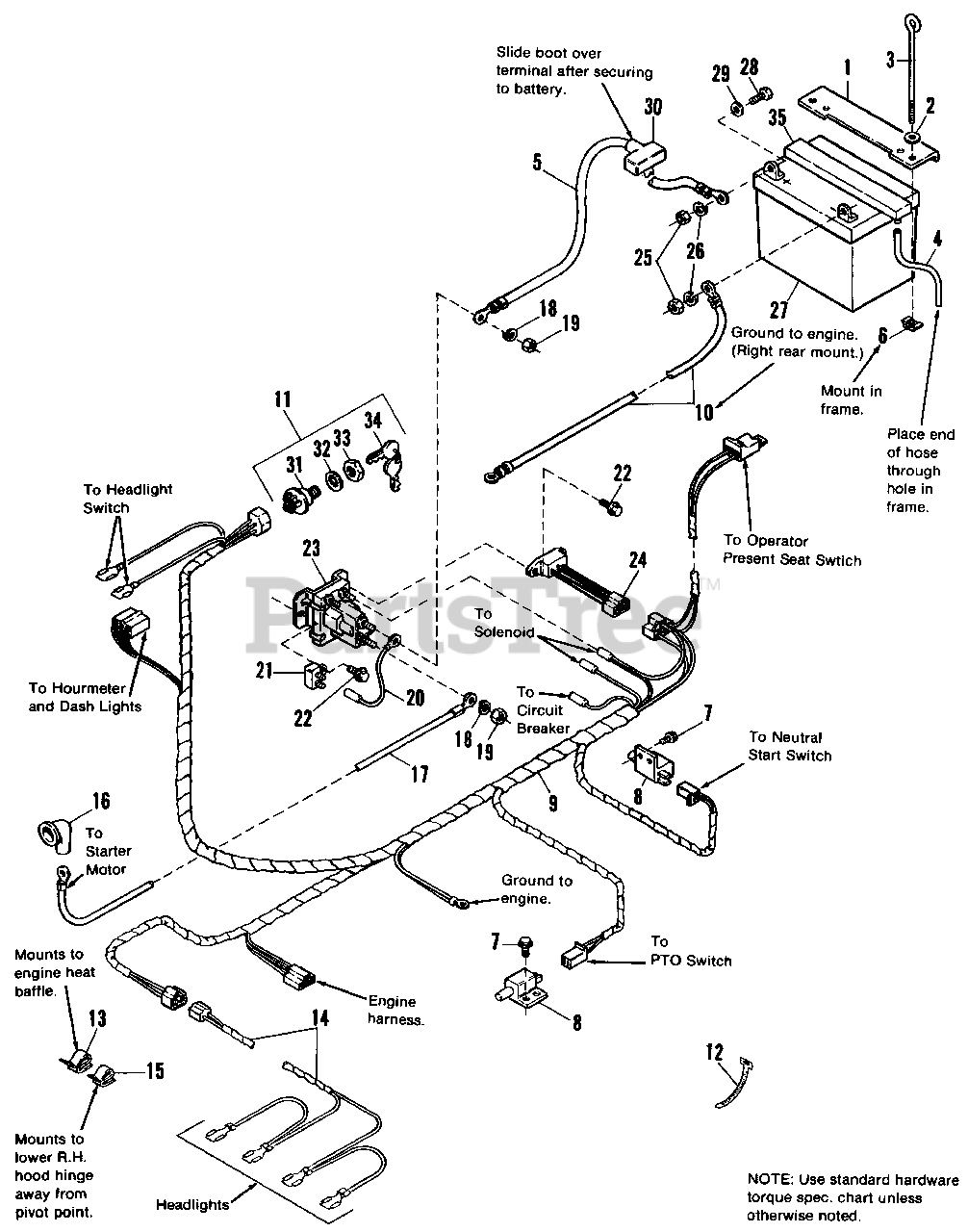

Electrical Group (17HP) Parts Diagram

  • Title

1

Simplicity 1718596

HOLD DOWN, Battery
(Superseded to 1718596ASM)

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1700472SM

ROD, Battery Hold Down

$25.99

$

Usually ships in 2-12 days

0

4

Simplicity 1704583SM

HOSE, Drain, Battery

$

$

Not available

5

Simplicity 1603618SM

CABLE, Ground

$12.99

$

In Stock, only 2 left!

0

6

Simplicity 1704349SM

NUT, Retainer, 1/4-20

$

$

Not available

7

Simplicity 1929477SM

SCREW, Taptite, #10-24 x 1/2
(Superseded to 704060)

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 1701521SM

SWITCH, PTO and Neutral
(Superseded to 5022438SM)

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 1704323

HARNESS, Wiring

$

$

Not available

10

Simplicity 1703484SM

CABLE, Ground to Engine

$29.99

$

Usually ships in 2-12 days

0

11

Simplicity 1686734SM

SWITCH, Ignition (Incl. Ref. Nos. 31, 32, 33 & 34)

$34.99

$

In Stock, Qty 20+

0

12

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 2830222

CLIP, Wire

$

$

Not available

14

Simplicity 1674358SM

WIRE ASSY., Headlights

$51.99

$

In Stock, only 4 left!

0

15

Simplicity 2165073SM

CLIP, Wire

$

$

Not available

16

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

17

Simplicity 1701522SM

CABLE

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0

20

Simplicity 1665237SM

WIRE ASSY.

$12.99

$

In Stock, only 1 left!

0

21

Simplicity 1665238SM

CIRCUIT BREAKER

$12.99

$

In Stock, Qty 7

0

22

Simplicity 2827429

SCREW, Taptite, 1/4-20 x 5/8

$

$

Not available

23

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$25.99

$

In Stock, Qty 14

0

24

Simplicity 1685466SM

MODULE, DSI Interlock

$231.99

$

Usually ships in 2-12 days

0

25

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

26

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 18

0

27

Simplicity 1685215SM

BATTERY, 39 Amp.

$

$

Not available

28

Simplicity 1923341SM

CAPSCREW, Hex Hd.,1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 2821319SM

WASHER, 1/4 I.D.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1677296SM

BOOT, Insulator

$6.99

$

In Stock, Qty 6

0

31

SWITCH (See Ref. No. 35)

$

$

Not available

32

Simplicity 2818906

LOCKWASHER, Internal, 5/8

$

$

Not available

33

Simplicity 2122234SM

NUT, Hex, 5/8-32
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1717163SM

KEYS

$9.49

$

In Stock, Qty 7

0

35

Simplicity 1704581

VENT, Battery

$

$

Not available
