182 (127-182-100) - Cub Cadet Walk-Behind Mower Engine (1987) Max 3.5 HP-90702-3044-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

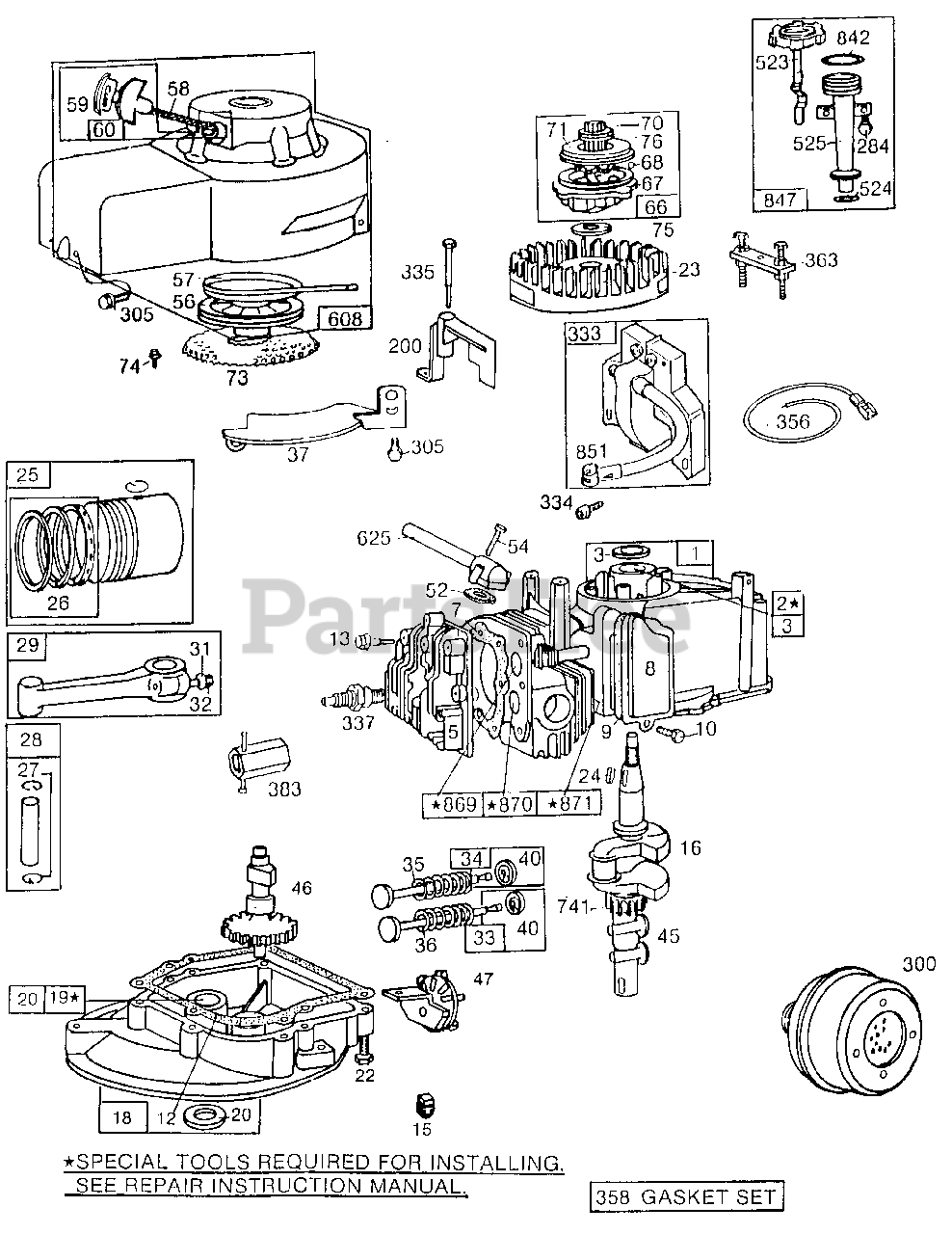

Max 3.5 HP-90702-3044-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-398671

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-213012

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-270836

Gasket-Cylinder Hd.

Note: (Included in Gasket Set - Part No.298989)

$

$

Not available

8

Cub Cadet BS-298383

Breather-Valve Chamber

$

$

Not available

9

Cub Cadet BS-270239

Gasket-Valve Cover

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket-Crankcase-.015" Thick (Standard)
(Superseded to BS-692218)

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set - Part No. 298989)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270896

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set - Part No. 298989)

$5.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93111

Screw-Cylinder Hd. (1-15/16" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-397223

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-395384

Sump-Oil

$

$

Not available

19

Cub Cadet BS-293709

Bushing-Oil Sump

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391483

Seal-Oil
(Superseded to BS-391483S)

$5.99

$

In Stock, Qty 9

0

22

Cub Cadet BS-93032

Screw-Mounting Sem

$

$

Not available

23

Cub Cadet BS-395653

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-298904

Piston Assembly-Standard

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Ass'y.-.010" O.S.

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Ass'y.-.020" O.S.

$95.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298907

Piston Ass'y.-.030" O.S.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set-Standard Piston

$48.99

$

In Stock, Qty 11

0

Cub Cadet BS-298983

Ring Set-.010" O.S. Piston

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298984

Ring Set-.020" O.S. Piston

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set-.030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assembly-Piston- Standard

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Pin Assembly-Piston-.005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-294201

Rod Ass'y.-Connecting

$

$

Not available

31

Cub Cadet BS-222282

Washer-Connecting Rod Screw (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-92296

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-296676

Valve-Exhaust

$23.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-296677

Valve-Intake

$24.99

$

In Stock, only 4 left!

0

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, Qty 5

0

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-230173

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-394800

Gear-Cam

$

$

Not available

47

Cub Cadet BS-294652

Oil Slinger Gear and Bracket

$

$

Not available

52

Cub Cadet BS-270345

Gasket-Intake Elbow

Note: (Included in Gasket Set - Part No. 298989)

$

$

Not available

54

Cub Cadet BS-93485

Screw-Intake Elbow Mounting

$

$

Not available

56

Cub Cadet BS-280439

Pulley-Rewind Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, only 1 left!

0

57

Cub Cadet BS-294303

Spring-Rewind Starter
(Superseded to BS-490179)

$14.99

$

In Stock, Qty 13

0

58

Cub Cadet BS-280406

Rope-Rewind Starter-82" Long
(Superseded to BS-280406S)

$8.49

$

In Stock, only 1 left!

0

59

Cub Cadet BS-396892

Insert-Starter Rope

$5.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-393152

Grip-Starter Rope

$4.99

$

In Stock, only 3 left!

0

66

Cub Cadet BS-394558

Clutch Assembly-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 15

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Clutch Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221661

Screew-Starter Pulley
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

200

Cub Cadet BS-68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94073

Screw-Clamp Mounting
(Superseded to BS-691002)

$8.49

$

In Stock, only 1 left!

0

300

Cub Cadet BS-394569

Muffler-Exhaust (3" Outside Diameter)

$

$

Not available

305

Cub Cadet BS-93559

Screw-Blower Housing Mounting Sem

$

$

Not available

333

Cub Cadet BS-398593

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, Qty 12

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw-Armature and Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet BS-298809

Plug-Spark 1-1/2" High-(37-42 mm.)

$

$

Currently unavailable

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-298989

Gasket Set
(Superseded to BS-794209)

$21.99

$

Usually ships in 2-12 days

0

363

Cub Cadet BS-19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

523

Cub Cadet BS-398012

Cap with Dipstick-Oil Filler

$

$

Not available

524

Cub Cadet BS-271485

Seal-Filler Tube

$

$

Not available

525

Cub Cadet BS-280504

Tube-Oil Filler

$

$

Not available

608

Cub Cadet BS-399234

Starter Assembly-Rewind (5 o'clock)

$

$

Currently unavailable

625

Cub Cadet BS-398360

Tube-Fuel Intake

$

$

Currently unavailable

741

Cub Cadet BS-261533

Gear-Timing

$

$

Not available

842

Cub Cadet BS-270920

Seal-Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

847

Cub Cadet BS-398010

Tube Assembly-Oil Fill

$38.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-210879

Seat-Intake Valve (Standard)

$6.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-211291

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0
