1820 - Lawn-Boy Snow Thrower (SN: 600000001 - 699999999) (1966)

Snow Thrower

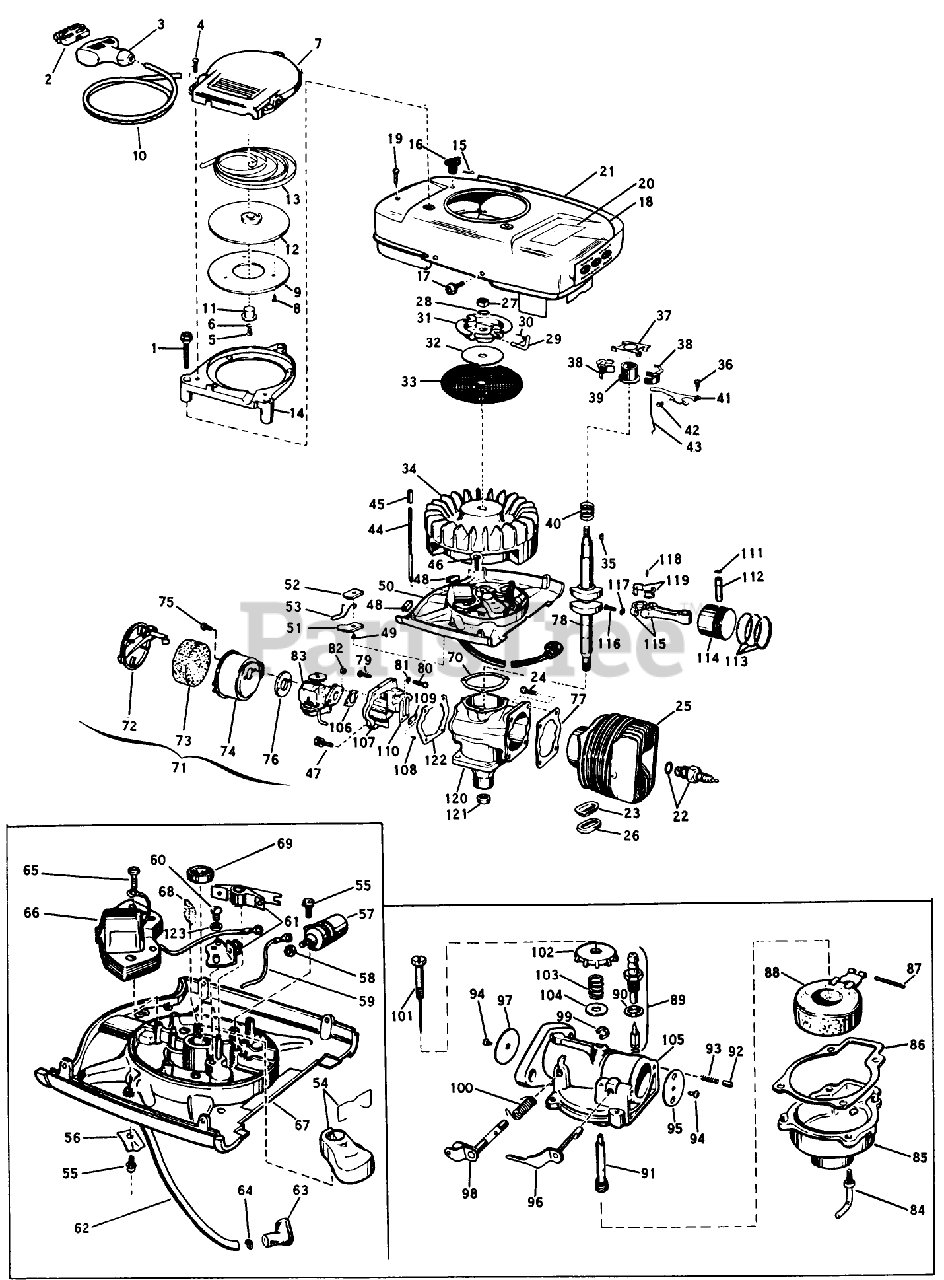

1820 - Lawn-Boy Snow Thrower (SN: 600000001 - 699999999) (1966) > Parts Diagrams (21) > MODEL C-19 ENGINE PARTS LIST

  • Title
602840

1

Screw Starter to Shroud

Part# 602840

OEM Warranty Repair Part for Lawn-Boy

Not available

486315

Starter Assembly

Part# 486315

OEM Warranty Repair Part for Lawn-Boy

Not available

304325

2

Anchor-Rope

Part# 304325

OEM Warranty Repair Part for Lawn-Boy

Not available

602773

3

STARTER HANDLE

Part# 602773

OEM Warranty Repair Part for Lawn-Boy

Not available

604741

4

SCREW

Part# 604741

OEM Warranty Repair Part for Lawn-Boy

Not available

306408

5

SCREW

Part# 306408

OEM Warranty Repair Part for Lawn-Boy

Not available

306396

6

Washer

Part# 306396

Not available

603802

7

Cap-Starter

Part# 603802

OEM Warranty Repair Part for Lawn-Boy

Not available

602821

8

SCREW

Part# 602821

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.28

403084

9

Plate-Pulley

Part# 403084

Not available

602823

10

Rope-Starter

Part# 602823

OEM Warranty Repair Part for Lawn-Boy

Not available

602609

11

Bearing-Pulley

Part# 602609

OEM Warranty Repair Part for Lawn-Boy

Not available

602819

12

Pulley Rewind

Part# 602819

OEM Warranty Repair Part for Lawn-Boy

Not available

602610

13

RECOIL SPRING

Part# 602610

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $137.93

402276

14

Base-Starter

Part# 402276

OEM Warranty Repair Part for Lawn-Boy

Not available

602723

15

Cotter Pin-Choke Knob

Part# 602723

Not available

602623

16

KNOB, CHOKE BAR

Part# 602623

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.53

602848

17

SCREW S

Part# 602848

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.85

678266

18

Shroud & Shield Assy.

Part# 678266

OEM Warranty Repair Part for Lawn-Boy

Not available

604739

19

Screw Machine

Part# 604739

OEM Warranty Repair Part for Lawn-Boy

Not available

604826

20

Decal-Instruction

Part# 604826

OEM Warranty Repair Part for Lawn-Boy

Not available

605009

21

Decal-LAWN-BOY

Part# 605009

OEM Warranty Repair Part for Lawn-Boy

Not available

602721

22

Spark Plug

Part# 602721

Not available

602717

23

SLEEVE

Part# 602717

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.69

602657

24

SCREW S

Part# 602657

OEM Warranty Repair Part for Lawn-Boy

Not available

678133

25

Cyl. & Sleeve Assy.

Part# 678133 (Superseded to 678106)

OEM Warranty Repair Part for Lawn-Boy

Not available

604624

26

GASKET S

Part# 604624

Note: 678071 Gasket Set

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $6.36

130981

27

Nut-Flywheel

Part# 130981

OEM Warranty Repair Part for Lawn-Boy

Not available

304161

28

LOCKWASHER

Part# 304161

OEM Warranty Repair Part for Lawn-Boy

Not available

602612

29

PIN - STARTER

Part# 602612

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $13.17

602613

30

SPRING - STARTER PIN

Part# 602613

OEM Warranty Repair Part for Lawn-Boy

Not available

602615

31

Pulley Flywheel

Part# 602615

OEM Warranty Repair Part for Lawn-Boy

Not available

602617

32

Nut

Part# 602617

OEM Warranty Repair Part for Lawn-Boy

Not available

602616

33

Screen Flvwheel

Part# 602616

OEM Warranty Repair Part for Lawn-Boy

Not available

677242

34

Flywheel Assembly

Part# 677242

OEM Warranty Repair Part for Lawn-Boy

Not available

120395

35

Key

Part# 120395 (Superseded to 607199)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.01

604121

36

Screw Governor

Part# 604121

OEM Warranty Repair Part for Lawn-Boy

Not available

677296

Governor Assembly

Part# 677296

OEM Warranty Repair Part for Lawn-Boy

Not available

602635

37

YOKE S

Part# 602635

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.63

602636

38

WEIGHT S

Part# 602636

OEM Warranty Repair Part for Lawn-Boy

Not available

602634

39

COLLAR S

Part# 602634

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $14.21

602633

40

SPRING S

Part# 602633

OEM Warranty Repair Part for Lawn-Boy

Not available

677294

41

GOVERNER LEVER AY

Part# 677294

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.07

602639

42

WEAR BLOCK S

Part# 602639

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.89

602638

43

GOVERNOR ROD S

Part# 602638

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.43

604055

44

Bar-Choke

Part# 604055

OEM Warranty Repair Part for Lawn-Boy

Not available

602733

45

Sleeve-Choke Bar

Part# 602733

OEM Warranty Repair Part for Lawn-Boy

Not available

604742

46

SCREW

Part# 604742

OEM Warranty Repair Part for Lawn-Boy

Not available

604857

47

SCREW S

Part# 604857

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $4.20

602816

48

PAD S

Part# 602816

OEM Warranty Repair Part for Lawn-Boy

Not available

602625

49

Screw Shut-off Switch

Part# 602625

Not available

678052

50

Armature Plate Assy.

Part# 678052

OEM Warranty Repair Part for Lawn-Boy

Not available

604074

51

Insulator-Shut-Off Lower

Part# 604074

OEM Warranty Repair Part for Lawn-Boy

Not available

602621

52

Insulator-Shut-Off Upper

Part# 602621

OEM Warranty Repair Part for Lawn-Boy

Not available

602618

53

SPRING

Part# 602618

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.64

677755

54

Point Cover Assy.

Part# 677755

OEM Warranty Repair Part for Lawn-Boy

Not available

602651

55

Screw-Condenser

Part# 602651 (Superseded to 604344)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.24

602454

56

Clamp-High Tension Laad

Part# 602454

OEM Warranty Repair Part for Lawn-Boy

Not available

677299

57

COND & NUT AY S

Part# 677299

OEM Warranty Repair Part for Lawn-Boy

Not available

133079

58

NUT S

Part# 133079

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.79

677237

59

Shut-off Switch Lead Assy

Part# 677237

OEM Warranty Repair Part for Lawn-Boy

Not available

303212

60

SCREW S

Part# 303212

OEM Warranty Repair Part for Lawn-Boy

Not available

677254

61

BREAKER AY. S

Part# 677254

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $34.25

677293

62

High Tension Lead Assy

Part# 677293 (Superseded to 684179)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $18.11

510232

63

Cover-Rubber

Part# 510232

Not available

510231

64

See Supercession: 684698

Part# 510231 (Superseded to 684698)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

604744

65

Screw-Coil Mounting

Part# 604744

OEM Warranty Repair Part for Lawn-Boy

Not available

580184

66

Coil

Part# 580184

OEM Warranty Repair Part for Lawn-Boy

Not available

678057

67

Arm. Pl. Brg. & Oil Seal Assy.

Part# 678057

OEM Warranty Repair Part for Lawn-Boy

Not available

603754

68

Oiler Wick

Part# 603754

OEM Warranty Repair Part for Lawn-Boy

Not available

602632

69

Oil Seal

Part# 602632 (Superseded to 611396)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $4.46

602590

70

GASKET S

Part# 602590

Note: 678071 Gasket Set

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $13.73

602763

70

GASKET S

Part# 602763

Note: 678071 Gasket Set

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.30

678132

71

Air Filter Assy.

Part# 678132

OEM Warranty Repair Part for Lawn-Boy

Not available

678122

72

Cap

Part# 678122 (Superseded to 679425)

OEM Warranty Repair Part for Lawn-Boy

Not available

604274

73

AIR FIL.ELEM S

Part# 604274

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $4.46

604235

74

Chamber

Part# 604235 (Superseded to 679425)

OEM Warranty Repair Part for Lawn-Boy

Not available

602775

75

SCREW S

Part# 602775

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.11

402517

76

Gasket

Part# 402517

OEM Warranty Repair Part for Lawn-Boy

Not available

604116

77

GASKET S

Part# 604116

Note: 678071 Gasket Set

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $2.23

603949

78

Crankshaft

Part# 603949

OEM Warranty Repair Part for Lawn-Boy

Not available

602192

79

SCREW S

Part# 602192

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.47

132492

80

Scr.-Reed Pl. to Carb.

Part# 132492

OEM Warranty Repair Part for Lawn-Boy

Not available

303630

81

Wash.-Reed Pl. to Carb. Scr.

Part# 303630

OEM Warranty Repair Part for Lawn-Boy

Not available

602201

82

STOP NUT

Part# 602201

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.64

677233

83

Carburetor Assembly

Part# 677233

OEM Warranty Repair Part for Lawn-Boy

Not available

604336

84

SCREW

Part# 604336

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $4.29

602712

85

FIoat Chamber

Part# 602712

OEM Warranty Repair Part for Lawn-Boy

Not available

602850

86

See Supercession: 98-1362

Part# 602850 (Superseded to 98-1362)

Note: 677271 Carburetor Repair Kit

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $2.23

300096

87

See Supercession: 92-6389

Part# 300096 (Superseded to 92-6389)

Note: 677271 Carburetor Repair Kit

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $3.34

678113

88

FLOAT & ARM ASM

Part# 678113

OEM Warranty Repair Part for Lawn-Boy

Not available

486218

89

Float Valve & Seat

Part# 486218 (Superseded to 678736)

Note: 677271 Carburetor Repair Kit

OEM Warranty Repair Part for Lawn-Boy

Not available

301996

90

WASHER S

Part# 301996

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.99

601096

91

Nozzle

Part# 601096

Note: 677271 Carburetor Repair Kit

OEM Warranty Repair Part for Lawn-Boy

Not available

601098

92

Plug-Choke Friction

Part# 601098

OEM Warranty Repair Part for Lawn-Boy

Not available

601097

93

Spring-Choke Friction

Part# 601097

OEM Warranty Repair Part for Lawn-Boy

Not available

53X220

94

Screw-Choke Disc

Part# 53X220

Note: 677271 Carburetor Repair Kit

Not available

603115

95

Disc-Choke

Part# 603115

OEM Warranty Repair Part for Lawn-Boy

Not available

677241

96

CHOKE SHAFT&LVR AY

Part# 677241

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $67.90

602290

97

Disc Throttle

Part# 602290

OEM Warranty Repair Part for Lawn-Boy

Not available

677637

98

Throttle Shaft & Ring

Part# 677637

OEM Warranty Repair Part for Lawn-Boy

Not available

603292

99

Grip Ring

Part# 603292

OEM Warranty Repair Part for Lawn-Boy

Not available

602685

100

SPRING

Part# 602685

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.28

677039

101

NEEDLE AY. S

Part# 677039

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.77

602495

102

KNOB S

Part# 602495

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $5.02

602293

103

Spring-Ndl. Adj.

Part# 602293

Not available

306561

104

Washer

Part# 306561

Not available

603488

105

Carburetor Body

Part# 603488

OEM Warranty Repair Part for Lawn-Boy

Not available

602052

106

GASKET S

Part# 602052

Note: 678071 Gasket Set

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $2.14

486718

107

Reed Pl. Assy.

Part# 486718

OEM Warranty Repair Part for Lawn-Boy

Not available

303761

108

See Supercession: 612872

Part# 303761 (Superseded to 612872)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.36

602587

109

PLATE-BACKUP, REED

Part# 602587

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.89

602588

110

REED-CARBURETOR

Part# 602588

OEM Warranty Repair Part for Lawn-Boy

Not available

678065

Piston & Conn. Rod Assy.

Part# 678065 (Superseded to 682864)

OEM Warranty Repair Part for Lawn-Boy

Not available

303712

111

RING-RETAINING

Part# 303712

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.89

303711

112

Pin-Wrist

Part# 303711

OEM Warranty Repair Part for Lawn-Boy

Not available

678422

113

PISTON RING SET S

Part# 678422

OEM Warranty Repair Part for Lawn-Boy

Not available

604099

114

Piston

Part# 604099 (Superseded to 682864)

OEM Warranty Repair Part for Lawn-Boy

Not available

677966

115

Connecting Rod

Part# 677966 (Superseded to 682864)

OEM Warranty Repair Part for Lawn-Boy

Not available

603976

116

SCREW

Part# 603976

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $1.47

307578

117

LOCK PLATE

Part# 307578

OEM Warranty Repair Part for Lawn-Boy

Not available

677963

118

See Supercession: 683911

Part# 677963 (Superseded to 683911)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $16.73

677982

119

LINER ASM

Part# 677982

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 3 to 5 business days

Your price: $26.73

678069

120

Crankcase Assy.

Part# 678069

OEM Warranty Repair Part for Lawn-Boy

Not available

602632

121

Oil Seal

Part# 602632 (Superseded to 611396)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $4.46

604000

122

Gasket

Part# 604000 (Superseded to 608362)

OEM Warranty Repair Part for Lawn-Boy

Usually leaves our warehouse in 1 business day

Your price: $2.23

300154

123

Washer

Part# 300154

OEM Warranty Repair Part for Lawn-Boy

Not available
