18208 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) Housing Assembly Model No. 18257 Parts Diagram

Guardian Walk-Behind Mower

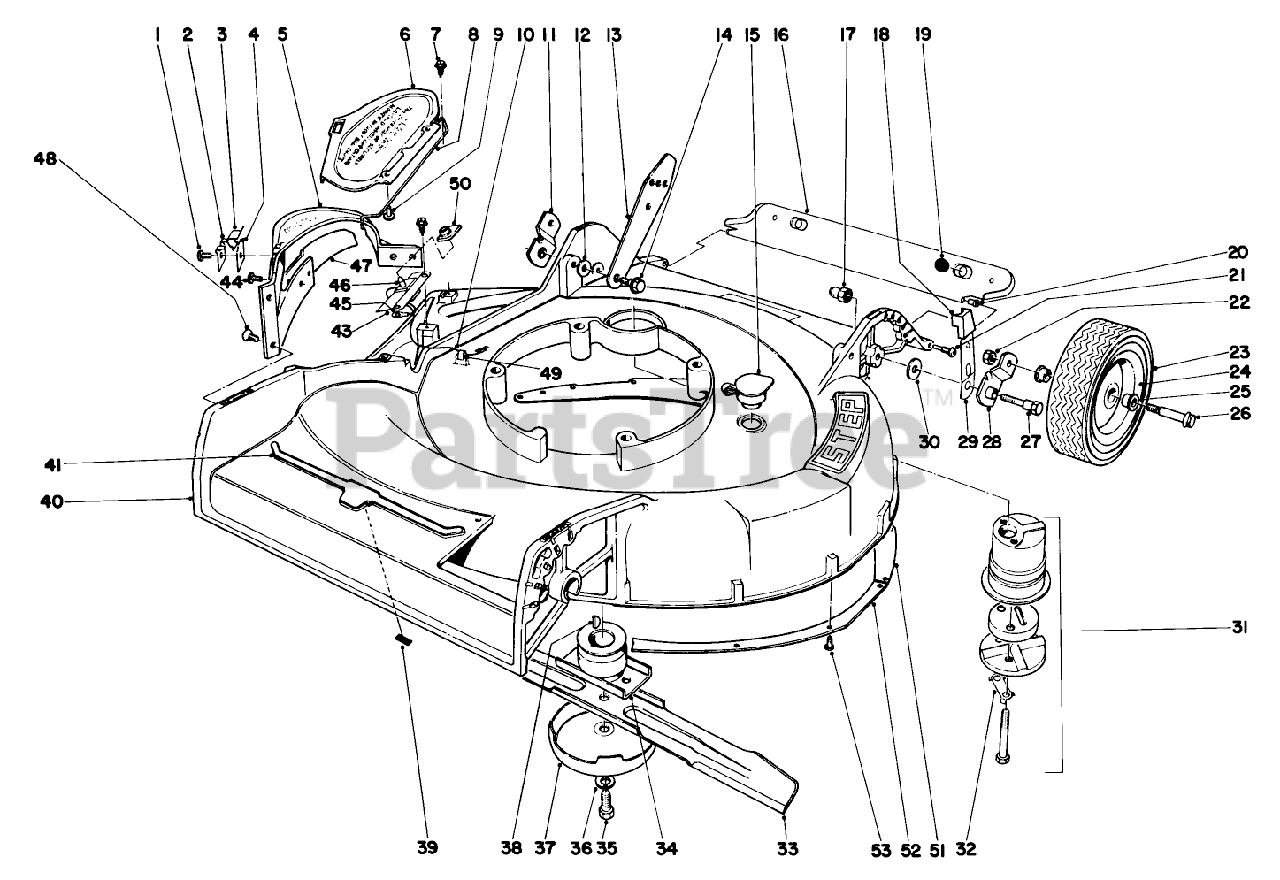

Housing Assembly Model No. 18257 Parts Diagram

  • Title

1

Toro 32104-90

Screw

$

$

Currently unavailable

2

Toro 8-5140

Lower Clip

$

$

Currently unavailable

3

Toro 8-5110

Upper Clip

$

$

Currently unavailable

4

Toro 8-5130

Wear Plate

$

$

Currently unavailable

5

Toro 8-1900

Deflector

$

$

Currently unavailable

6

Toro 8-5760

Deflector Cover (Incl. Ref. Nos. 11 12)

$

$

Currently unavailable

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 8-5250

Hinge Pin

$

$

Currently unavailable

9

Toro 3295-22

Rivet

$

$

Currently unavailable

10

Toro 8-5120

Lead Wire

$

$

Currently unavailable

11

Toro 8-4260

See Supercession: 98-1527
(Superseded to 98-1527)

$

$

Not available

12

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

13

Toro 8-6910

See Supercession: 43-1550
(Superseded to 43-1550)

$

$

Not available

14

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

15

Toro 6-4500

WASHOUT PLUG

$

$

Not available

16

Toro 84070

Safety Shield (Incl. #19 #20)

$

$

Currently unavailable

17

Toro 3-6482

See Supercession: 12-2080
(Superseded to 12-2080)

$27.99

$

Usually ships in 3-6 days

0

18

Toro 8-4220

See Supercession: 25-7740
(Superseded to 25-7740)

$5.49

$

In Stock, Qty 12

0

19

Toro 5-6450

DISCONTINUED

$

$

Not available

20

Toro 8-6080

DISCONTINUED

$

$

Not available

21

Toro 8-6160

DISCONTINUED

$

$

Not available

22

Toro 32146-12

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

23

Toro 4-2600

DISCONTINUED

$

$

Not available

24

Toro 3-7350

DISCONTINUED XREF

$

$

Not available

25

Toro 5-4504

DISCONTINUED

$

$

Not available

26

Toro 3-2652

Bolt

$

$

Not available

27

Toro 3-0655

5/16-18 PIVOT SCREW

$16.99

$

In Stock, only 1 left!

0

28

Toro 8-4280

See Supercession: 98-1511
(Superseded to 98-1511)

$

$

Not available

29

Toro 8-3840

See Supercession: 23-0400
(Superseded to 23-0400)

$

$

Not available

30

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 8

0

31

Toro 2-9329

See Supercession: 5-4769
(Superseded to 5-4769)

$67.99

$

Usually ships in 3-6 days

0

32

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

33

Toro 8-5240

DISCONTINUED
(Superseded to 8-5240-03)

$

$

Not available

34

Toro 8-5370

BLADE RETAINER WA

$121.99

$

Usually ships in 3-6 days

0

35

Toro 3-5246

DISCONTINUED

$

$

Not available

36

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

37

Toro 8-4240

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 3 left!

0

38

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

39

Toro 3290-299

DISCONTINUED

$

$

Not available

40

Toro 5-2849

Housing (Incl . Ref. 51-53)

$

$

Currently unavailable

41

Toro 8-5460

Emblem, Bullshead

$

$

Currently unavailable

43

Toro 8-5650

Mounting Plate

$

$

Currently unavailable

44

Toro 32104-90

Screw

$

$

Currently unavailable

45

Toro 8-5440

Ground Wire

$

$

Currently unavailable

46

Toro 8-5510

Switch

$

$

Currently unavailable

47

Toro 10-8960

DefIector Bar

$

$

Currently unavailable

48

Toro 11-3010

DISCONTINUED

$

$

Not available

49

Toro 2412-9

Clip

$

$

Currently unavailable

50

Toro 11-3070

DISCONTINUED

$

$

Not available

51

Toro 8-5540

DISCONTINUED

$

$

Not available

52

Toro 8-5560

Secondary Skirt

$

$

Currently unavailable

53

Toro 32104-90

Screw

$

$

Currently unavailable

Toro 8-7320

Loose Parts Bag, Model #18257

Note: Not illustrated

$

$

Currently unavailable
