18212 - Toro Whirlwind Walk-Behind Mower (SN: 008000001 - 008999999) (1968) Carburetor No. 631243 Parts Diagram

Whirlwind Walk-Behind Mower

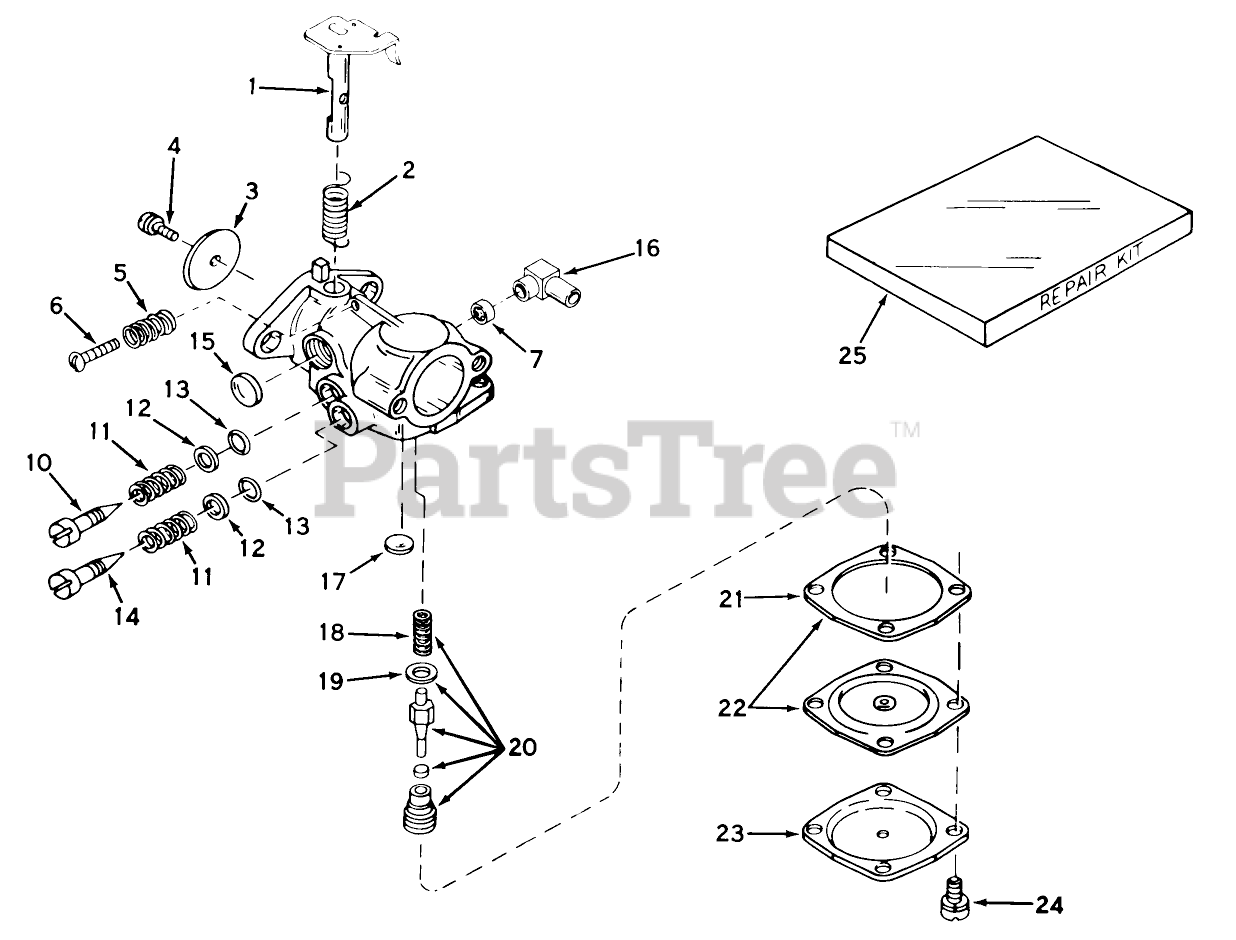

Carburetor No. 631243 Parts Diagram

  • Title

1

Toro 630983

Shaft Lever Assy.

$

$

Currently unavailable

2

Toro 631279

Spring, Throtte Return

$

$

Currently unavailable

3

Toro 630733

Shutter, Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631201

Valve Check

$

$

Currently unavailable

10

Toro 630767

Screw, Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Indicate items included in Repair Kit No. 630974.

$

$

Currently unavailable

14

Toro 630737

Screw, Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicate items included in Repair Kit No. 630974.

$

$

Currently unavailable

16

Toro 32267

Nipple, Fuel Inlet

$

$

Currently unavailable

17

Toro 630746

Plug Welch

Note: Indicate items included in Repair Kit No. 630974.

$

$

Currently unavailable

18

Toro 630741

Spring, Needle Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 630932

Needle, Valve, Seat Gasket

Note: Indicate items included in Repair Kit No. 630974.

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Indicate items included in Repair Kit No. 630974.

$

$

Currently unavailable

23

Toro 32185

63561/33165A O"HITC

$3.23

$

Usually ships in 3-6 days

0

24

Toro 650545

Screw, Diaphragm Cover

$

$

Currently unavailable

25

Toro 630974

Repair Kit

$

$

Currently unavailable
