1830 SB - Husqvarna 30" Snow Blower (2009-08) DRIVE 3 Parts Diagram

30" Snow Blower

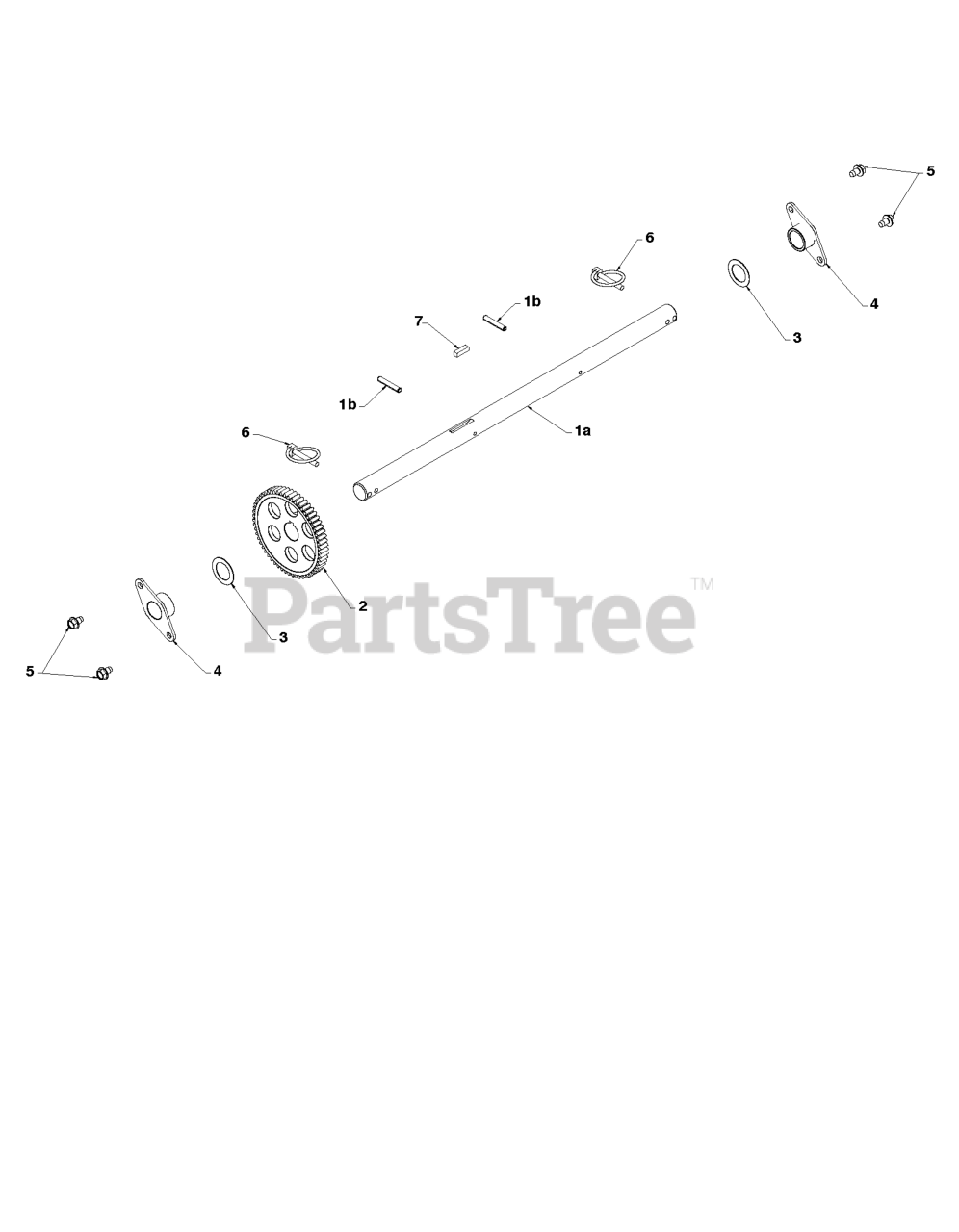

DRIVE 3 Parts Diagram

  • Title

1

Husqvarna 532188226

AXLE.SHAFT.ASM.W/ROLPIN.NON-PS

Note: Assy of 1a & 1b

$85.99

$

Usually ships in 3-10 days

0

1a

Husqvarna 532179352

SHAFT.AXLE.16".SNOW

$62.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532155443

PIN KLIK, 1/4

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179830

BEARING, AXLE

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 532180081

GEAR, AXLE (58T)
(Superseded to 532441417)

$250.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

1b

Husqvarna 532184206

PIN.ROLL.3/16

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$5.99

$

Usually ships in 3-10 days

0
